Home > Products > Rotary Kiln Equipment > Zinc oxide recycling equipment for zinc ash and zinc dust roasting
Zinc oxide recycling equipment for zinc ash and zinc dust roasting
- 20 Set / Sets per Month
- Qingdao Shanghai Tianjin Lianyungang
- T/T Credit Card
Product Details
Condition: | New | Production Capacity: | 1.2-1.9t/h | Place of Origin: | Henan, China |
Brand Name: | Derui | Model Number: | Y-1633 | Voltage: | 220v/380v |
Power(W): | 22kw | Dimension(L*W*H): | 1.6*33m | Weight: | 50690kg |
Certification: | ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Zinc oxide recycling equipment for zinc ash and zinc dust roasting
During the EAF process, the high temperatures required to melt the feed material produce a zinc byproduct (EAF dust) that leaves the furnace along with the off-gases. The gases are filtered and the EAF dust is collected in bag houses.
The EAF dust waste steam is considered a hazardous material due to the potential for the heavy metals to leach into the ground, contaminating ground water and sewage systems.
The EAF dust generated by steel mills can be recycled in an economically viable way using the Waelz Kiln technology. The recycling process is part of the larger steel industry loop that allows the reuse of two important natural resources - zinc and iron.
Zinc Oxide is the main product of recycling EAF dust utilizing the Waelz Kiln technology. This product is sold to zinc smelters as an alternative to traditional zinc concentrates from mines. The zinc smelters produce pure zinc ingots or other high purity zinc products that are either sold to the steel industry for galvanization purposes or sold to other end-users for pigments, tires, chemicals or medicines.

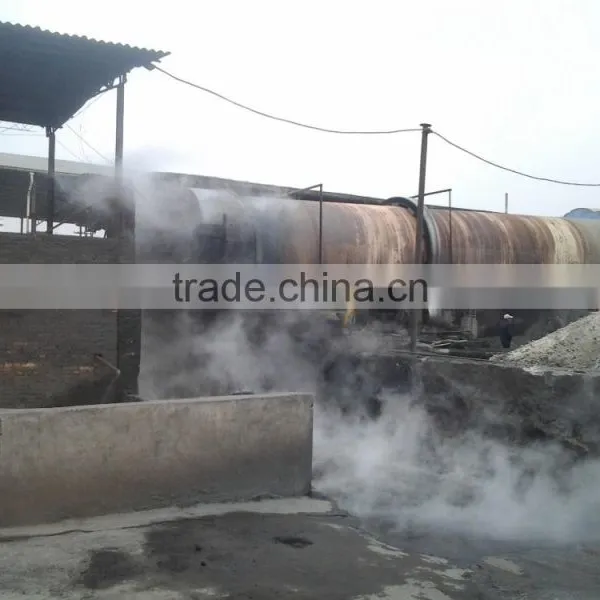

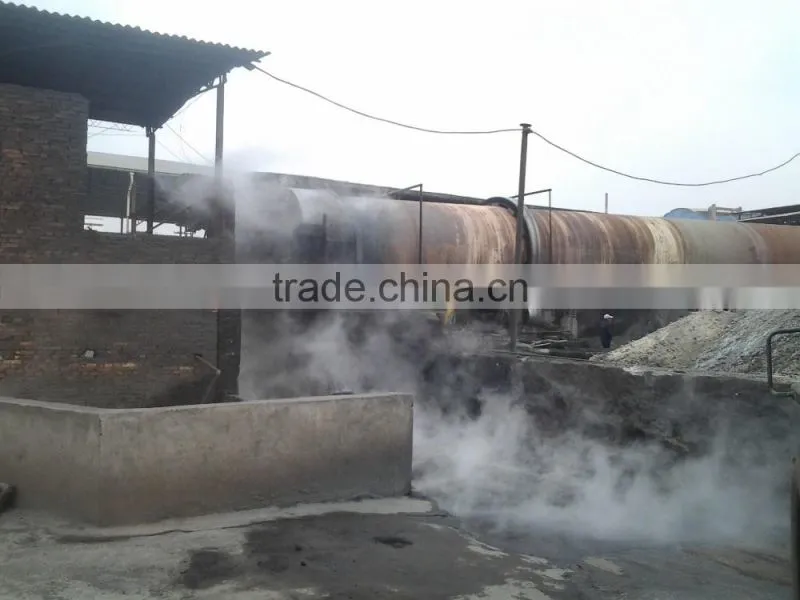

zinc oxide recycling equipment working site:
zinc oxide recycling equipment is a key-equipment for treatment of Zn from Zinc smelters or steel mill dust, EAF dust, low grade zinc ore etc.
zinc oxide recycling equipment consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, movable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc.

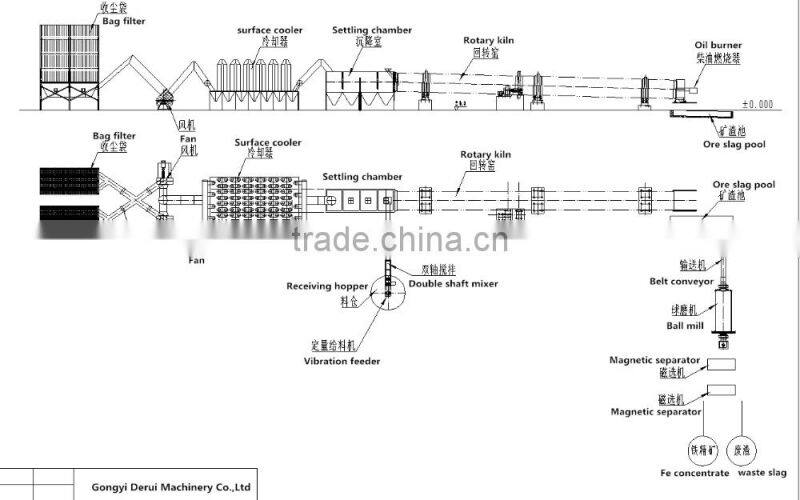

zinc oxide recycling equipment working process:
1,Raw materials Preparation, dosing, pelletizing (if need);
2,Oxidizing roasting and reduction in rotary kiln;
3,Slag cooling and iron slag separation;
4,Flue gas cooling;
5,Bag type dust collection (finished ZnO powder)
6,Package of finished products
zinc oxide recycling equipment technical parameter:
Model(m) | Diameter (m) | Length(m) | Slope(%) | Capacity(t/h) | Rotate Speed (r/min) | Motor Power(kw) | Weight(T) |
φ1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 |
φ1.6×33 | 1.6 | 33 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 50 |
φ1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 |
φ1.8×32 | 1.8 | 32 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 |
φ1.8×45 | 1.8 | 45 | 4 | 2.8-3.34 | 0.21-2.11 | 30 | 95.2 |
φ1.9×36 | 1.9 | 36 | 3.5 | 1.2-1.7 | 0.29-2.93 | 30 | 86.3 |
φ1.9×45 | 1.9 | 45 | 3.5 | 1.65-2.5 | 0.29-2.93 | 37 | 109 |
φ2.2×48 | 2.2 | 48 | 3 | 1.9-2.1 | 0.98-2.93 | 55 | 141 |
φ2.5×40 | 2.5 | 40 | 3.5 | 6.0-7 | 0.44-2.44 | 55 | 139.61 |
φ2.5×50 | 2.5 | 50 | 3.5 | 7.0-8.0 | 0.48-1.44 | 55 | 179.6 |
φ2.5×54 | 2.5 | 54 | 3.5 | 8.0-8.6 | 0.48-1.44 | 55 | 196.29 |
φ2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 |
φ2.8×44 | 2.8 | 44 | 3.5 | 11-12.5 | 0.80-2.39 | 55 | 198.6 |
φ3.0×45 | 3 | 45 | 3.5 | 13.3-16.9 | 0.5-1.35 | 55 | 223 |
φ3.2×52 | 3.2 | 52 | 3.5 | 16-18.5 | 0.48-2.44 | 110 | 278 |
Application of zinc oxide recycling equipment:
zinc oxide recycling equipment is mainly used for heating and calcining various mineral materials in metallurgy, construction, and ores etc, such as ceramsite sand, bauxite, limestone, cement, metal magnesium, alumina, hydroxide alumina, fly ash , high aluminum refractory materials, etc.
Installation and guidance:When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day.
Technical training:We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
Warranty: one year (not include man-made damaged).
Derui machinery Co.,Ltd is located in Zhengzhou,Henan province, China(Mainland).Our main product include following:
Rotary kiln equipment: cement rotary kiln, lime rotary kiln, bauxite rotary kiln, zinc oxide recycling equipment, etc.
Dryer equipment: Rotary dryer, silica sand rotary dryer, sawdust dryer, mineral rotary dryer, slag rotary dryer, coal dryer, fly ash dryer, etc.
Stone crusher series: jaw crusher, impact crusher, cone crusher, hammer crusher, roller crusher etc.
Beneficiation equipment series : gold flotation machine, spiral classifier, rotary dryer, etc.
Grinding mill series: ball mill, raymond mill, rod ball mill, overflow ball mill, etc.
Feeding and screening equipment series: vibrating screen, vibrating feeder, etc.
Accessory equipment: belt conveyor, bucket elevator, screw conveyor, coal powder spraying machine, etc.
If you are interested in our zinc oxide recycling equipment, please kindly inform us the following info:
1. what is the raw material that you are going to process?
2. what is the capacity per day or per hour?
3. what is the feeding size of raw material?
4. what is your heat source?
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
