Home > Products > Rotary Dryer Equipment > 2017 New Condition High Efficiency Mining Concentrates Rotary Drum Dryer
2017 New Condition High Efficiency Mining Concentrates Rotary Drum Dryer
- 50 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | DRM | Model Number: | 2000x30M | Voltage: | 380V |
Power(W): | 3-75kw | Dimension(L*W*H): | 20m*2.4m*2.4m | Weight: | 2000KG |
Certification: | ISO9001:2008 | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2017 New Condition High Efficiency Mining Concentrates Rotary Drum Dryer
D.R.M. Mining Concentrates Rotary Drum Dryer
We've built a reputation on building the best rotary dryers in the industry. All of our dryers are custom designed to suit the unique processing needs of your materials. Whether you require low or high inlet temperatures,short or long residence times, counter current or co-current flow, D.R.M.'s design team can design a rotary dryer for your application.
Rotary dryers are a highly efficient industrial drying option for bulk solids. They are often chosen for their robust processing capabilities and their ability to produce uniform results despite variance in feedstock.
Rotary dryers work by tumbling material in a rotating drum in the presence of a drying air. They can also be indirectly heated to avoid direct contact between the material and processing medium.
The drum is positioned at a slight horizontal slope to allow gravity to assist in moving material through the drum. As the drum rotates, lifting flights pick up the material and drop it through the air stream in order to maximize heat transfer efficiency. When working with agglomerates, the tumbling action imparted by the dryer offers the added benefit of further rounding and polishing the granules.
Direct Rotary Dryer Features of Mining Concentrates Rotary Drum Dryer
Diameter : 3' - 15'
Capacity: 1TPH - 200TPH
Specially designed lifting flights to maximize heat transfer between the material and hot gas stream
Heavy duty design and construction for many years of service
Process and Mechanical warranties
Various drive assemblies available

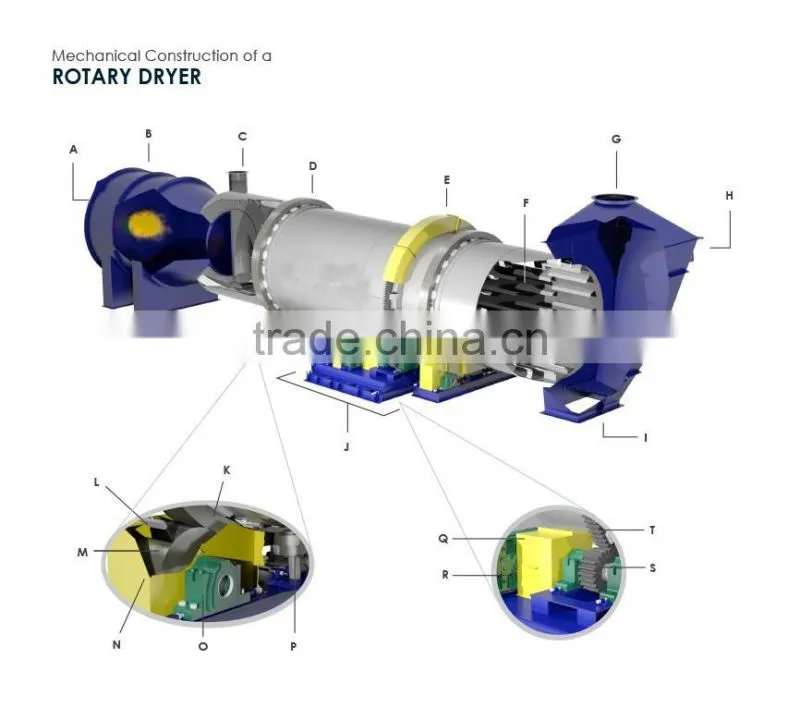

Direct Rotary Dryers Construction of Mining Concentrates Rotary Drum Dryer
The image below shows the standard components of a rotary dryer.
Direct Rotary Dryer Applications & Materials
Rotary dryers are known as the workhorse of industrial dryers. They are able to process a wide variety of materials, and can lend a habd in nearly any industry requiring drying solutions. Some of the most common industries and materials in which rotary dryers are employed include:
Aggregates Gypsum Municipal Waste & Sludge Rubber Pellets Agricultural By-Products Inorganic Chemicals Salts & Sugars Animal Feeds Limestone Paper Sludge Sand Biomass Manure Plastic Pellets & Grains Steel Mill Waste Sludges Biosolids Metal Chips & Shavings Potash Urea Prills & Crystals Fertilizers Mining Ores & Concentrates Reclaimed Dust
Indirect Rotary Dryers of Mining Concentrates Rotary Drum Dryer
Unlike direct dryers, indirect dryers do not reply on direct contact between the material and process gas to dry the material. Instead, the rotating drum is enclosed in a furnace, which is externally heated. Contact with the heated drum shell is what dries the material.
While indirect dryers are less efficient compared to their direct counterparts,they offer some advantages that can make them an attractive alternative. This includes:
- Less exhaust air treatment
- No risk of entrainment of fine materials
- Precise temperature control along the length of the dryer can be achieved
Indirect Dryer Features of Mining Concentrates Rotary Drum Dryer
-Diameter: 3' - 15'
-Capacity: 1 TPH - 200 TPH
-Heavy duty design and construction for many years of service
-Process and Mechanical Warranties
-Various Drive Assemblies Available

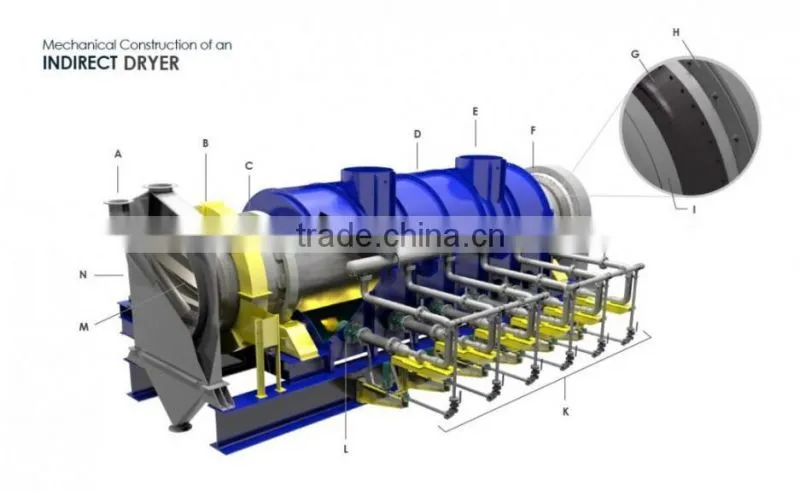

Indirect Rotary Dryers Construction
Contact Us
- Gongyi Derui Machinery Co., Ltd.
- Contact nameLisa liu
- Phone0086-371-64319887
- AddressMiddle of Heluo Road, Gongyi, Henan, China(Mainland) Zhengzhou,Henan
