Rotary drum dryer structure
Introduction of rotary drum dryer:
Rotary drum dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the materials, it is handled by bringing it into direct contact with heated gas.
Structure of rotary drum dryer:
Rotary drum dryer is mainly composed of heat source, feeding equipment, feeder, rotary drum, discharging equipment, raw material crushing device, induced draft fan, unloader and power distribution cabinet.

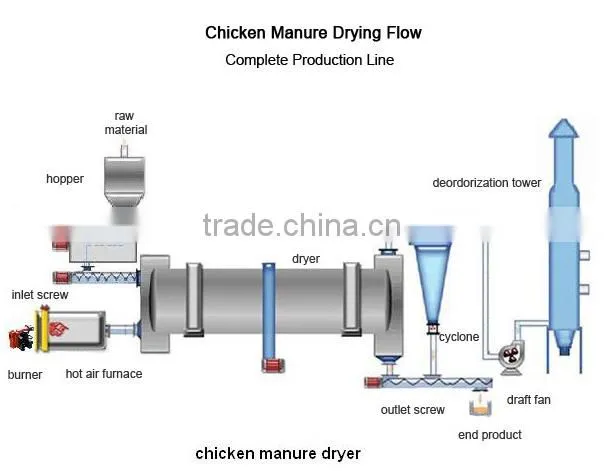

Rotary drum dryer structure:
Technical parameter of rotary drum dryer:
|
Model(D*L)(mm) |
HZG800*8000 |
HZG1000*10000 |
HZG1200*12000 |
HZG1500*15000 |
|
Volume |
4-5m³ |
7.82m³ |
13.75 m³ |
24.9 m³ |
|
Rotate speed |
4-9r/min |
3-7 r/min |
3-7 r/min |
3-7 r/min |
Tilt |
3-5° |
3-5° |
3-5° |
3-5° |
Motor model |
Y132M2-6 |
Y132M2-6 |
Y160M-6 |
Y180L-6 |
Power |
3kw |
4 kw |
7.5kw |
15kw |
Reducer model |
JZQ 350 |
JZQ 400 |
JZQ 500 |
JZQ650 |
Weight |
2.2t |
7.5t |
10.3t |
18.33t |
Working principle of rotary drum dryer:
Working principle: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials
into the rotary cylinder.
Then water will be separated from the materials by hot air flow and changed into vapour to be discharged into the atmosphere.
Then the materials would be dried.
Application of rotary drum dryer:
Biomass: sawdust, wood chips, wood veneer
Ore: ore slag, mineral power, limestone, quartz, fluorite powder, sand, iron ore, metal ore concentrates, metal tailings, coal , etc.
Metal: metal powder, iron powder, iron filings, steel scrap, copper filings, etc.
Chemical industry: gypsum powder of desulphurization gypsum stir-frying half water model and building gypsum powder, clay,
diatomaceous earth, bauxite
Fertilizer: compound fertilizer, organic fertilizers, inorganic fertilizers, ammonium sulfate fertilizer
Agriculture: straw, grass, turf, animal manure, beans waste
Rotary drum dryer shipping:
In order to help you to recommend suitable chicken manure dryer, can you tell me the following information in your inquiry?
1. What is the material you want to dry?
2. What is the moisture of the feed materials?
3. What is the final moisture you want to get?
4.What is the hear source?(firewood, coal, heat gas or electricity)
4. What is the production capacity per hour or per day?
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
