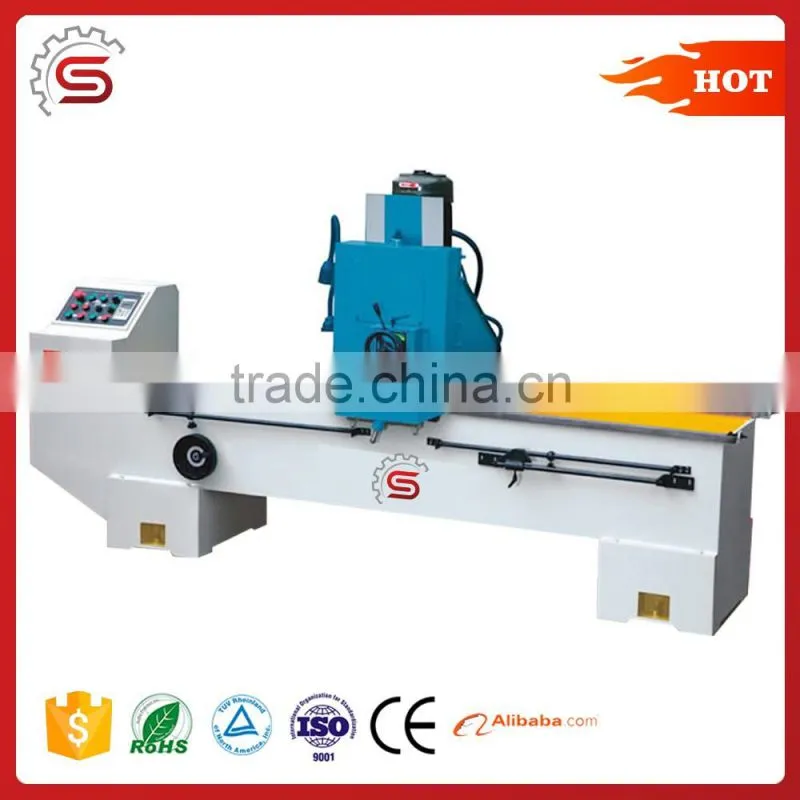

Grinding Machine MG2515A Automatic Linear Sharpening Machine knife grinding machine
Applications:
The machine is used mainly for grinding various types of the straight blade cutting tools at different angles. It is suitable for grinding different types of straight blade cutting tools such as furniture making, wood processing, printing and textile industry etc. The machine has good and reasonable appearance arrangement, it consist of the 7 components including the main body, the workbench, the carriage, the grinding head, the automatic feeding, the circuitry and the cooling, the structure of each section is compact.
The machine also is equipped manual and automatic feed grinding device. The automatic feed amount can be adjusted according to actual requirement by adjusting the position of the position rod, and control the feed amount, the working table angle can be adjusted by gyration 0-90 °, It clamps the blade with electric magnetic chuck, so the clamping is safe and reliable, the grinding head feed the blade with the speed regulation of frequency-transformer. The feed speed can be adjusted in uniform in the range of 0-60Hz according to processing requirement, so as to assure the grinding quality. For better understanding of the operation and maintenance of the machine, please read the following indication of the use.
Technical Parameters:
Max.grinding length | 1500mm/3000mm |
Cutter rest adjustable angle | 0-90° |
Wheel Head Horizontal Moving Speed | Frequency Conversion&Adjustable |
Grinding wheel specification | 205x115x145mm |
Water pump motor | 90w |
Wheel head rotate speed | 1440r/min |
Main Motor power | 5.5kw |
Feeding electric motor power | 0.75kw |
Workbench size | 200x1500mm/200x3100mm |
Wheel head horizontal lifting Max.distance | 200mm |
Overall size | 4800x1100x1600mm |
The Product Detail:
The Packaging Details:
1.Stretch film with wooden case or as your request
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
3.Timely delivery and transportation
We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
We have years of manufacturing woodworking machine.OEM and ODM service available.
Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months. 2) 24 hours technical support by email or calling. 3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers. The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation, enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.
We have already approved the ISO9000 International quality system certification and the main products through the national certification,access to the national key new products,high-tech products such as the honorary title,by the Chinese enterprise brand quality committee awarded the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over theworld.
A strong R&D team,strong processing power,the reliable quality assurance,strict testing means make the company to win the trust of users. Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to the users'communication,make the company continuously introduced to adapt to the market,meet the users of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People!
