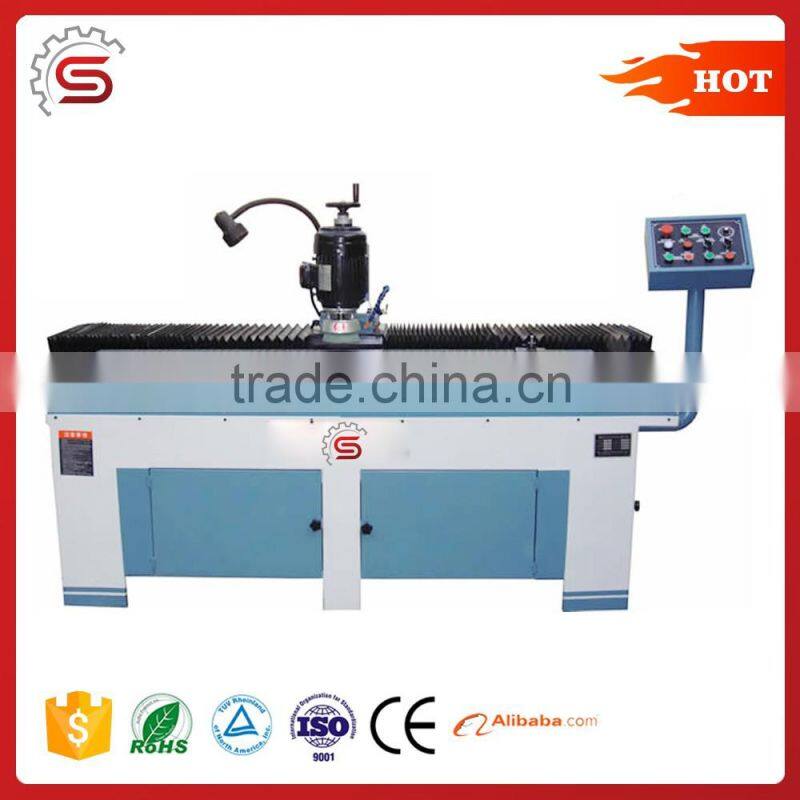

Grinding Machine MG2515B Automatic Linear Sharpening Machine knife grinding machine
Applications:
The machinery is used mainly for grinding various angles straight blade edge tool,suitable for furniture factories ,wood processing plants ,printing brush factory,textile mills and other industries a variety of different types of straight edge cutter .Such as carpentry Paodao,rotary cutter,plate shear knife,Ink scraper,the paper cutter,crushing knife.The machine is mainly composed of a bed ,table,the slide plate,grinding head,scales slightly adjustable feed,electrical,cooling and other seven parts,each part has the advantages of reasonable and compact structure,reasonable layout and beautiful appearance .Machine tool track selection of imported straight rail,the rotary table 90DEG angle adjustment,knife folder using electromagnetic sucker,clip Tight security,head of special motors,walk the knife used for stepless speed regulation,speed can be adjusted according to walk the knife processing needs to be within the range of 0-60Hz uniform adjustment,grinding quality has been a reliable guarantee .
Technical Parameters:
Model | MG2515B |
Effective Grinding Length | 1500mm |
Feed Power of Motor | 60w |
Grinding cutter adjustable | 0-90° |
Grinding wheel specification | 32*125*50mm(Calathiform) |
Water pump motor | 40w |
Wheel head rotate speed | 2800r/min |
Main Motor power | 2.2kw |
Overall dimension(mm) | 630*1280*1630 |
Net weight(kg) | 420kg |
The Product Detail:
The Packaging Details:
1.Stretch film with wooden case or as your request
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
3.Timely delivery and transportation
We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
We have years of manufacturing woodworking machine.OEM and ODM service available.
Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months. 2) 24 hours technical support by email or calling. 3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers. The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation, enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.
We have already approved the ISO9000 International quality system certification and the main products through the national certification,access to the national key new products,high-tech products such as the honorary title,by the Chinese enterprise brand quality committee awarded the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over theworld.
A strong R&D team,strong processing power,the reliable quality assurance,strict testing means make the company to win the trust of users. Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to the users'communication,make the company continuously introduced to adapt to the market,meet the users of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People!
