Home > Products > Woodworking Planer > MBQ512A 4-side Planer 4-sided Planer and Moulder Machine

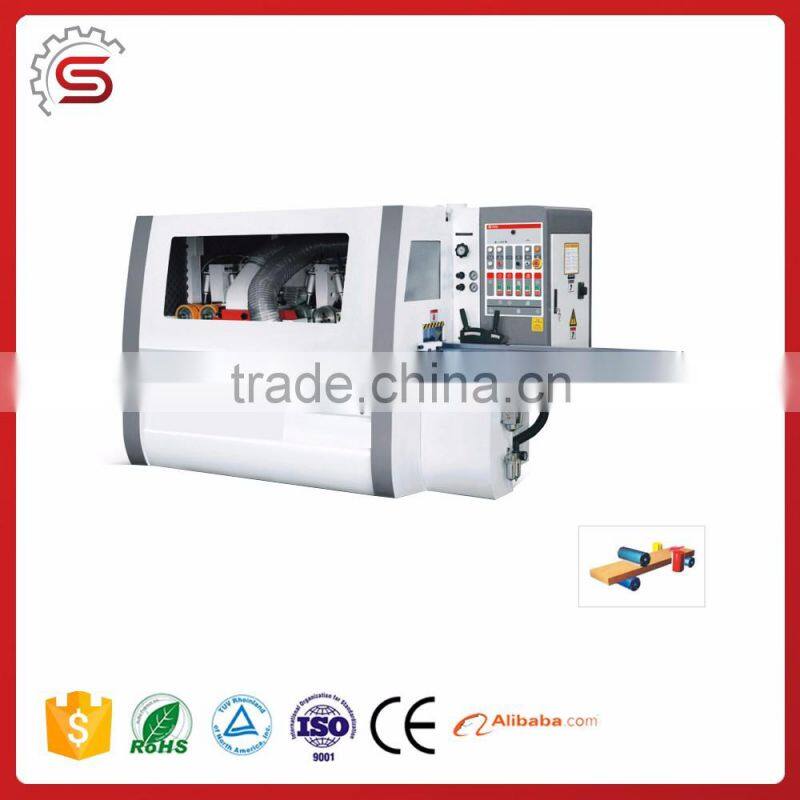

MBQ512A 4-side Planer 4-sided Planer and Moulder Machine
- Qingdao Shanghai Guangzhou or as your request
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Four Side Moulder | |
| Place of Origin | Shandong, China | Brand Name | STEELER | |
| Model Number | MBQ512A | Voltage | 380V | |
| Power(W) | 18.75kw | Dimension(L*W*H) | 3100x1400x1700mm | |
| Weight | 1830kg, 1830kg | Certification | CE ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
MBQ512A 4-side planer 4-sided planer and moulder machine
Features:
1.Preposition centralization type adopted for adjustment and locking positions of respective cutter shafts,easy and fast for operation.
2.Manual elevation of crossbeam,handy operation,economical and substantial.
3.Worm gear speed reducer used for drive and universal joint for actuation for feeding wheel,for a vigorous and synchronous feeding to be more unobstructed.
4.Tale board and guide surface of guide plate plated with hard chromium,endurable and lasting.
The Technical Data:
Model | MBQ512A |
ing width | 120mm |
Min.working width | 25mm |
ing thickness | 100mm |
ing thinkness | 8mm |
Spindle amounts | 5pcs |
Spindle speed | 6000rpn |
Feed speed | 5-22m/min |
Spindle diameter | φ40mm |
Cutter diameter First bottom cutter | φ125 |
Right vertical cutter | φ125-φ160 |
Left vertical cutter | φ125-φ160 |
First top cutter | φ125-φ160 |
Second bottom spindle | φ125-φ160 |
Motor power First bottom cutter | 3kw/4hp |
Right vertical cutter | 3kw/4hp |
Left vertical cutter | 3kw/4hp |
Fist top cutter | 4kw/5.5hp |
Second bottom cutter | 3kw/4hp |
Feed motor | 3kw/4hp |
Beam elevation | 0.55kw/0.75hp |
Total power | 18.75kw/23.25hp |
Feeding wheel Dia. | 140*35*50 |
Suction hood Dia. | φ125 |
Overall dimensions | 2900*1200*1610mm |
Packing dimensions | 3100x1400x1700mm |
Weight | 1830kg |
The Product Detail:
The Packaging and Shipping:
1. Packaging Details: Stretch film with wooden case or as your request .
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
3.Timely delivery and transportation
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.
The company produced sanding machine which is a combination of Germany,Italy,Taiwan's
good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,
enterprising spirit,continuous research and development to adapt to the market,make our
polishing machine series equipment industry's leading edge products.
