MM5613 Two heads double side sanding machine woodworking sanding machine
Application:
The machine is mainly used in panel calibrating and fine sanding such as plywood, flakeboard, medium-and high density board, glued laminated timber, blockboard, calcium silicate board, fiber cement board and so on. The machine adopts European innovative manufacturing process, which ensures the rationality of machine structure. And it also improves the machining precision and performance of continuous use.
The main parameter:
Model | MM5613 | MM5616 | MM5619 |
Working width | 1300mm | 1600mm | 1900mm |
Working thickness | 5-100mm | 5-100mm | 5-100mm |
Working length | ≥500mm | ≥500mm | ≥500mm |
Sanding belt speed | 32m/s | 32m/s | 32m/s |
Feeding speed | 8-40m/min | 8-40m/min | 8-40m/min |
Main motor power | 75kwx2 | 90kwx2 | 110kwx2 |
Feeding motor power | 11kw | 11kw | 15kw |
Total power | 165kw | 195kw | 240kw |
Working air pressure | 0.55Mpa | 0.55Mpa | 0.55Mpa |
Air flow for dust collector | 28000m³/h | 35000m³/h | 40000m³/h |
Size of sanding belt(PxW) | 2720x1350 | 2720x1650 | 2800x1960 |
Overall dimension(LxWxH) | 3450x1880x3150 | 3750x1880x3150 | 4200x1880x3150 |
Net weight | 1500kg | 1700kg | 2000kg |

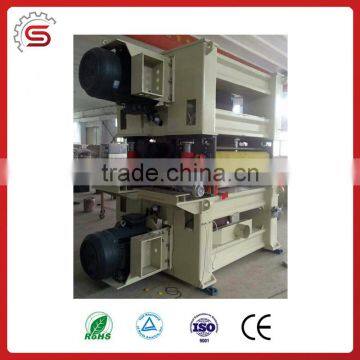

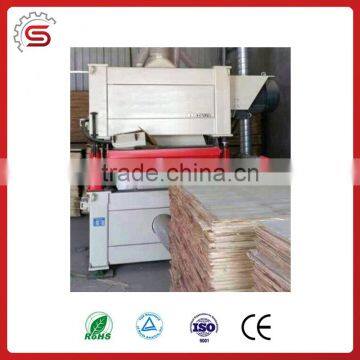

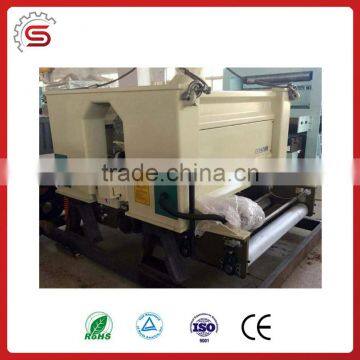

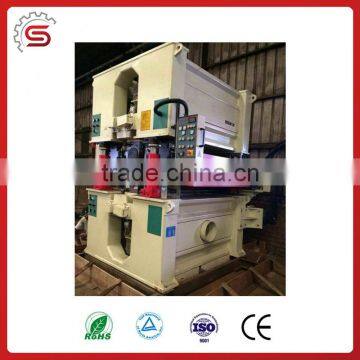

The detailed picture:
1.ShippingWe have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
2.Timely delivery and transportation.
We have years of manufacturing woodworking machine.OEM and ODM service available.
Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer.
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds ofsanding machine,polishing machine and other mechanical equipment manufacturers.The company
produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical
properties,structure and the advanced polishing machine not only draw lessons from the foreign
advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series
equipment industry's leading edge products.
