MM5813 Four Heads Double Side Sanding Machine

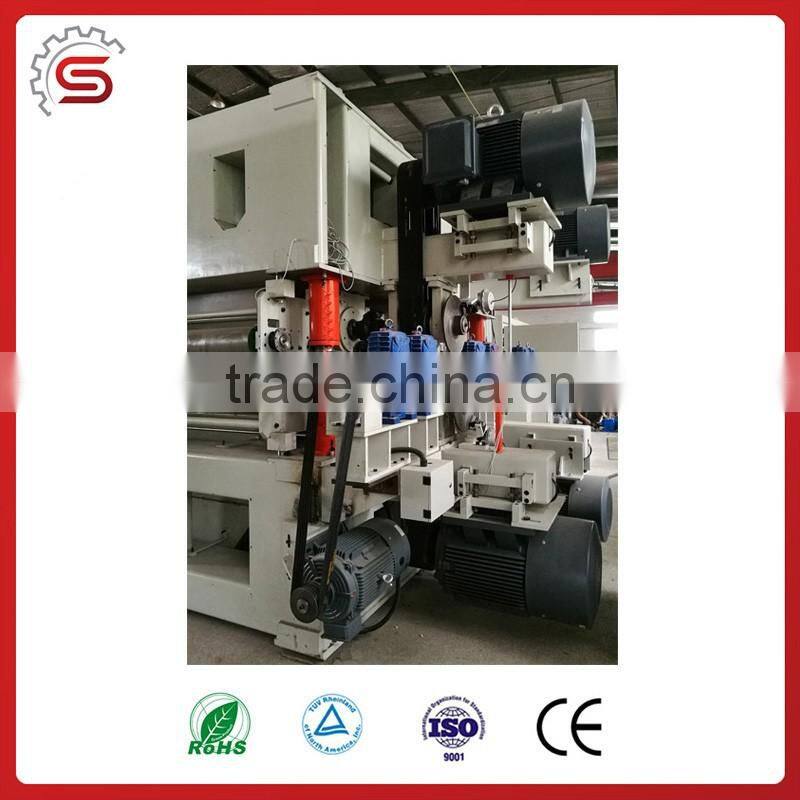

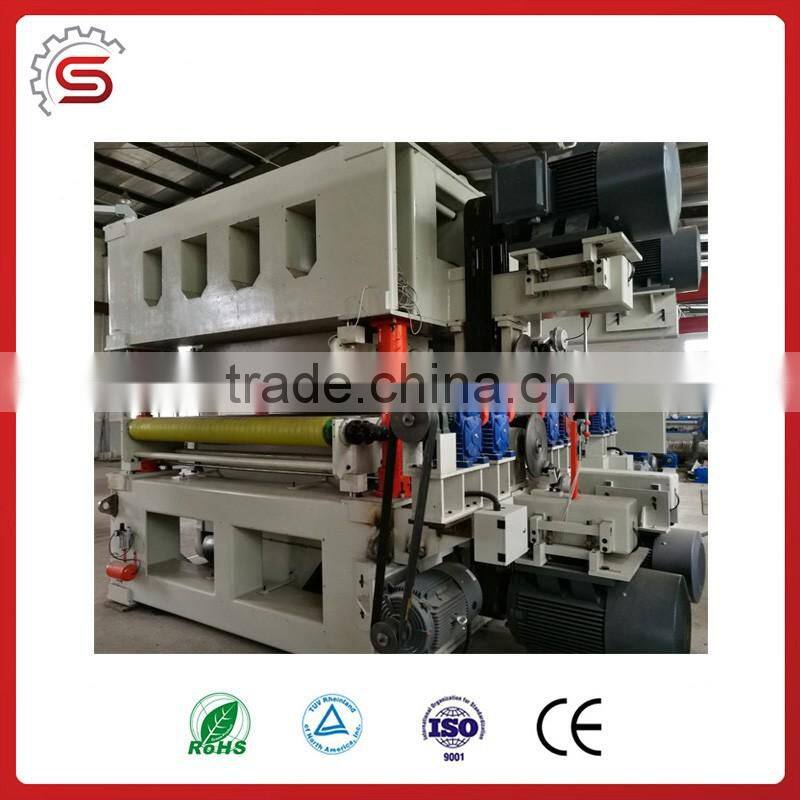

MM5813 Four Heads Double Side Sanding Machine photo-1
MM5813 Four Heads Double Side Sanding Machine photo-2
MM5813 Four Heads Double Side Sanding Machine photo-3
MM5813 Four Heads Double Side Sanding Machine photo-4
MM5813 Four Heads Double Side Sanding Machine photo-5
MM5813 Four Heads Double Side Sanding Machine photo-6
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sander
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO /SHANGHAI/GUANGZHOUO/AS YOUR REQUEST
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Sander
Place of Origin Shandong, China
Brand Name STEELER
Model Number MM5813 Four heads double side sanding machine
Voltage 220V/380V
Power(W) 11kw
Dimension(L*W*H) 3450x1880x3150mm
Weight 1500kg
Certification CE ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

MM5813 Four heads double side sanding machine

Product Description

 The machine is mainly used in panel calibrating and fine sanding such as plywood, flakeboard, medium-and high density board, glued laminated timber, blockboard, calcium silicate board, fiber cement board and so on. The machine adopts European innovative manufacturing process, which ensures the rationality of machine structure. And it also improves the machining precision and performance of continuous use.

 New technologies and safe operation

High performance and excellent surface quality

Comfortable operation via PC

Specifications



Model

MM5813

Working width

1300mm

Working thickness

5-100mm

Working length

≥500mm

First sanding belt speed

28m/s

Second sanding belt speed

26m/s

Feeding speed

8-40m/min

Main motor power

75kwx2; 55kwx2

Feeding motor power

15kw

Total power

280kw

Working air pressure

0.55Mpa

Air flow for dust collector

32000m³/h

Size of sanding belt(PxW)

3000x1350

3320x1350

Overall dimension(LxWxH)

3450x3500x3150

mm

Net weight

3500kg

Detailed images

 MM5813 Four heads double side sanding machineMM5813 Four heads double side sanding machineMM5813 Four heads double side sanding machineMM5813 Four heads double side sanding machine

Packaging & Shipping

1.Packaging details: Stretch film with wooden case or as your request

2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms

3.Timely delivery and transportation.

MM5813 Four heads double side sanding machine

Company Information

Qingdao Steeler woodworking machinery co.,ltd is the professional production of various sanding machine,polishing machine and other mechanical equipment manufacturers.

The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical properties,structure andthe advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.

We have already approved the ISO9000 International quality system certification and the main products through the national certification,access to the national key new products,hightech products such as the honorary title,by the Chinese enterprise brand quality committee awarded the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over the world.

A strong R&D team,strong processing power,the reliable quality assurance,strict testing means make the company to win the trust of users. Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to the users'communication,make the company continuously introduced to adapt to the market,meet theusers of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People!



MM5813 Four heads double side sanding machine



Client with us

MM5813 Four heads double side sanding machine

Our Services

1.We have years of manufacturing woodworking machine,OEM and ODM service available.

2.Main Market

Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America and south America , Australia .

3.Sample Service :

If you want to test the performance of machine ,we can sent sample to you with cost offer .

4.Customized Service :

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.

5.Good after-sale Services is our strength

1) The machine guarantee is 12 months.

2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video CD disc.

4)Our engineers can provide services to overseas.

FAQ

1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
