Home > Products > Finger Joint Machine > Highly active woodworking machine MHB1525 Automatic finger assembler machine with high quality

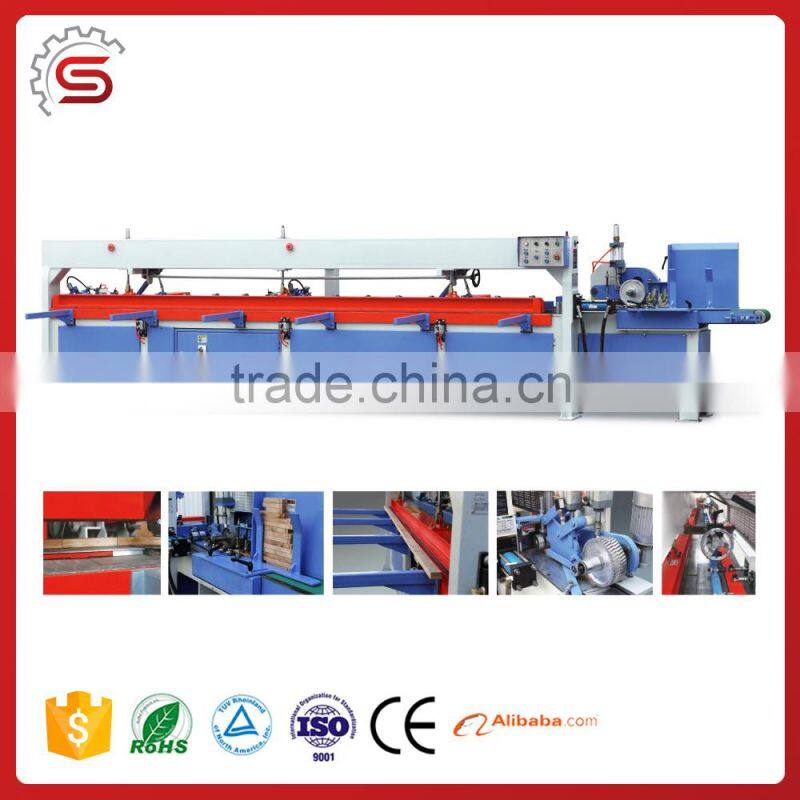

Highly active woodworking machine MHB1525 Automatic finger assembler machine with high quality
- 100 Set / Sets per Month
- Qingdao/Shanghai/Guangzhou/as your request
- T/T L/C D/P D/A Credit Card PayPal
- Finger Joint Sharper (With Glue Function)
- Woodworking Automatic Plywood Core Veneer Stitching Jointer Machine
- Automatic Plywood Veneer Stitching Jointer Machine
- Automatic Adjustable plywood core veneer Composer Jointing machine
- Automatic Adjustable plywood core veneer Composer Jointing machine
- Automatic Adjustable plywood core veneer Composer Jointer machine
Product Details
Condition: | New | Spindle Speed: | 2840r/min | Air Pressure: | 0.8Mpa |
Max. Working Width: | 150mm | Max Working Height: | 2500mm | Place of Origin: | Shandong, China |
Brand Name: | STEELER | Model Number: | MHB1525 Finger Joint Assembler | Voltage: | 380V |
Power(W): | 3.7kw | Dimension(L*W*H): | 4700*1600*1500mm | Weight: | 1600kgs |
Certification: | CE ISO | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Highly active woodworking machine MHB1525 Automatic finger assembler machine with high quality
Technical parameter:
Max assembly length | 2500mm | |||
Max assembly width | 150mm | |||
Max assembly thickness | 80mm | |||
Max jointing force | 7.8t | |||
Saw blade spindle power | 4.0kw | |||
Oil pump motor power | 2.2kw | |||
Saw blade spindle speed | 3700rpm | |||
Feeding speed | 30-60m/min | |||
Infeed conveyor power | 0.75kw | |||
Hold-down wheel feeder power | 0.75kwx2 | |||
Overall dimensions(LxWxH) | 4700*1600*1500mm | |||
Weight | 1600kg |
Detail:
1.Packing details: Stretch film with wooden case or as your request.
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
1.Good after-sale Services is our Superiority
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4) Oversea engineer after-sale service is available.
2.Main market
Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.
3.Sample Service
If you want to test the performance of machine ,we can sent sample to you with cost offer.
4.Customized Service
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine, OEM and ODM service are available.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.
The company produced sanding machine which is a combination of Germany,Italy,Taiwan's
good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,
enterprising spirit,continuous research and development to adapt to the market,make our
polishing machine series equipment industry's leading edge products.
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
