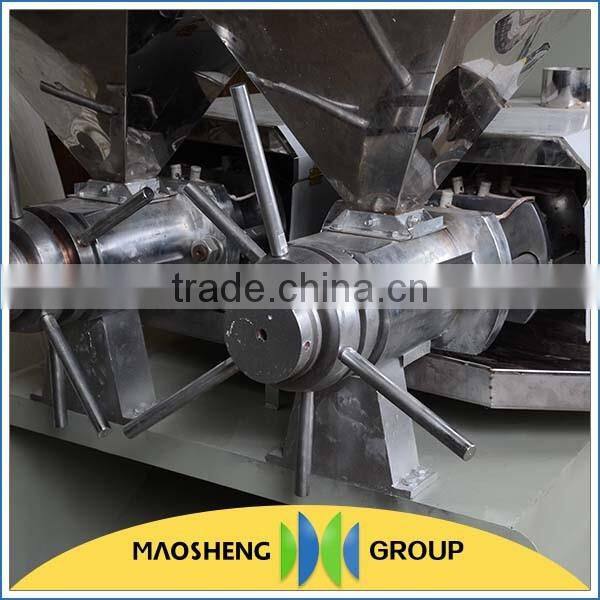

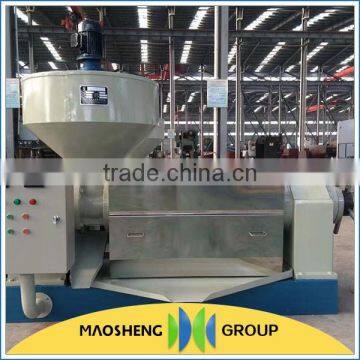

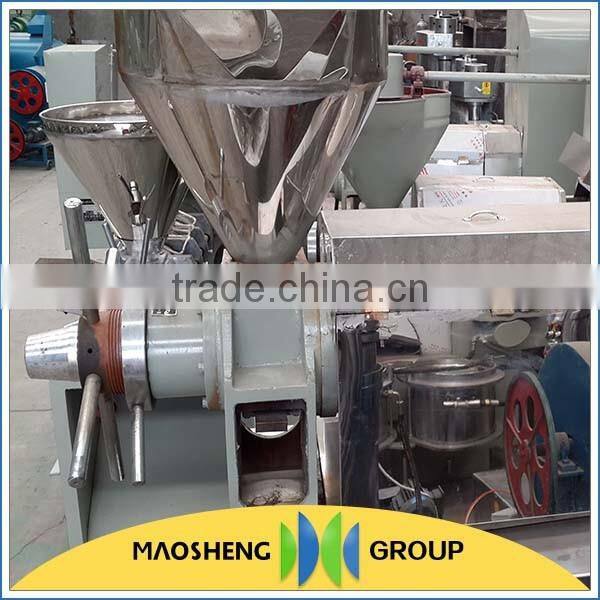

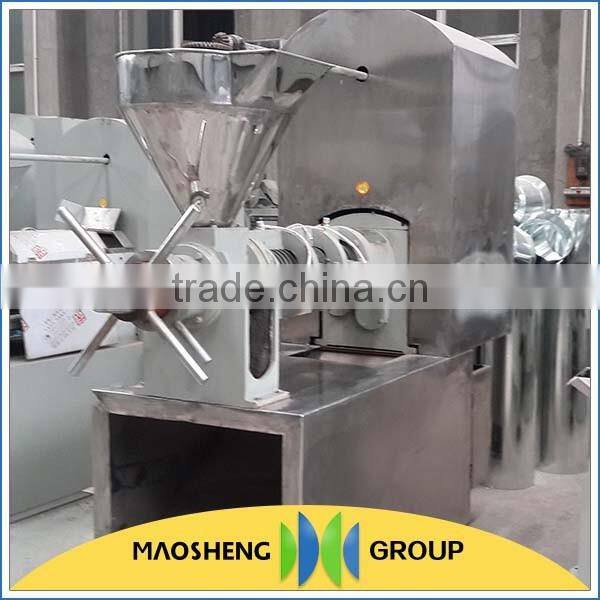

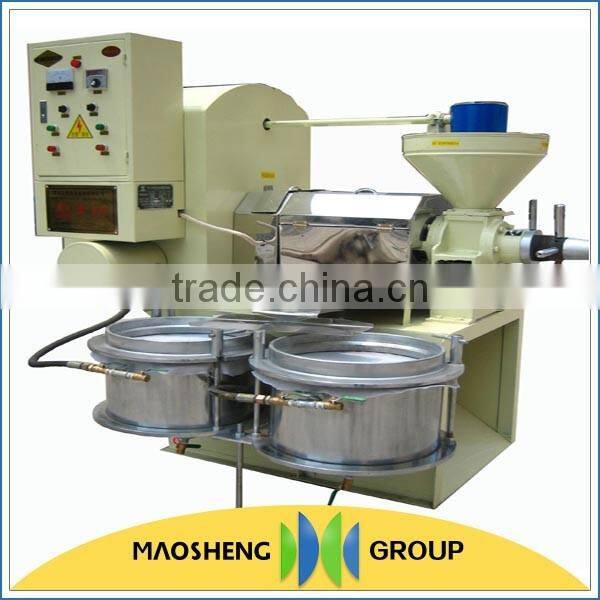

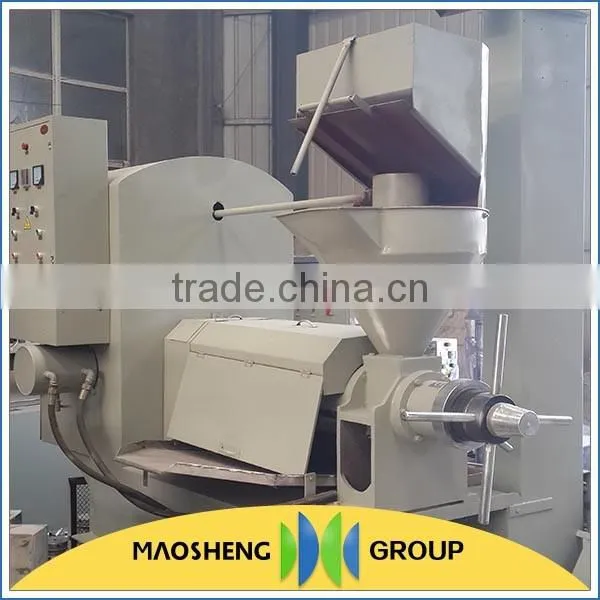

High efficency 6YL all Oil seeds machine automatic screw oil press machine
Operation Of Screw Oil Press Machine

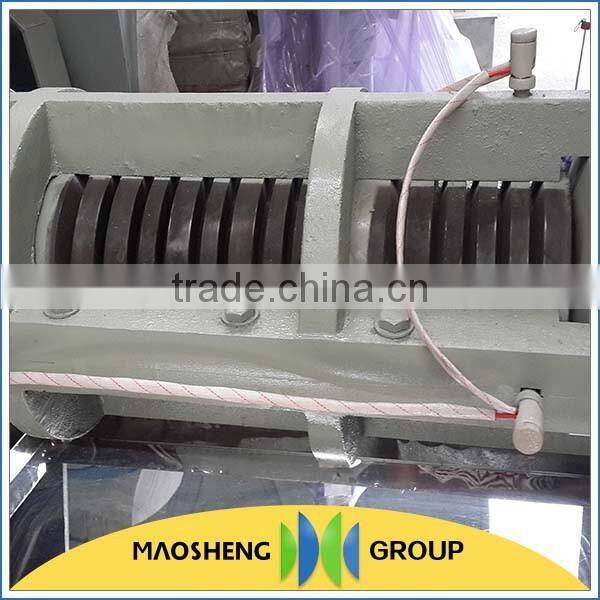

1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.
Main Technical Parameters Of Screw Oil Press Machine
| Model | Squeeze worm rotation speed | Exterior size (mm) | Capacity | With power(kw) | ||
| Main engine | Vacuum pump | Heater | ||||
| 6YL-80 | 30-45tun/min | 1650x1150x1750 | 80-150kg/h | Y160L-6-5.5KW | Y90S-4-0.55KW | 2KW |
| 6YL-100 | 30-40turn/min | 1950x1300x1900 | 150-250kg/h | Y160M-6-7.5 | Y90S-4-1.1 | 3KW |
| 6YL-120 | 30-40turn/min | 2050x1350x2000 | 200-300kg/h | Y160L-6-11KW | Y100L1-4-1.5KW | 3.3KW |
| 6YL-130 | 28-40turn/min | 2200x1600x2150 | 250-400kg/h | Y180L-6-15KW | Y100L1-4-2.2KW | 3.8KW |
| 6YL-160 | 28-40turn/min | 2500x1600x2500 | 400-600kg/h | Y200L-6-18.5KW | Y100L1-4-2.2KW | 4KW |
| 6YL-180 | 28-38turn/min | 2750 x1750 x2350 | 800-1000kg/h | 6-22kw | 2.2kw | 3kw |

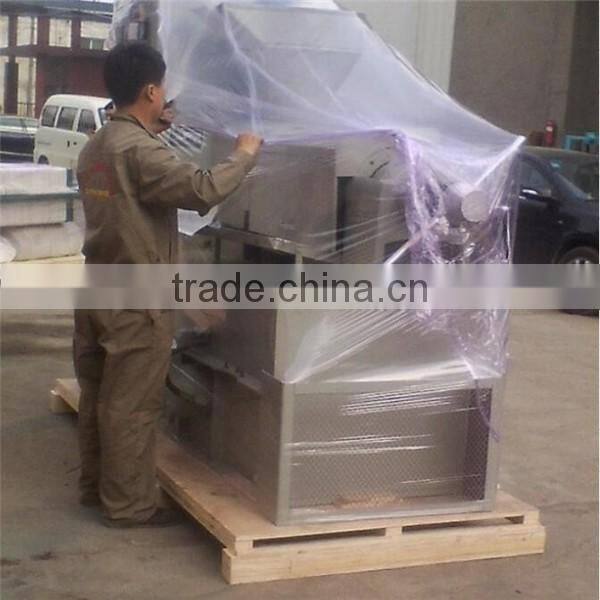

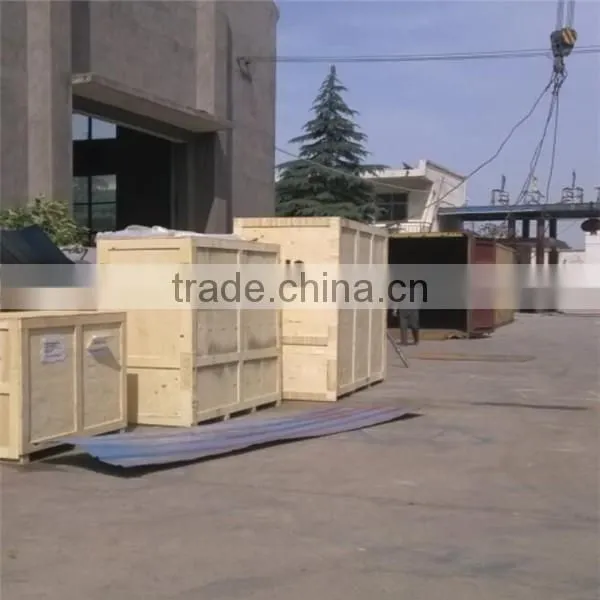

Packing Details : Containers in 20HQ, 40HQ, 20FR, 40FR, 20OP,40OP, and cargo in bulk.According to the actual situation.
Delivery Details : 45 workdays after order, or according to the actual situation.
1.Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* Write the project feasibility study report
* Undertake project design including technology, civil engineering, steel structure, machinery, electric, automation
* Optimizing plant design for the existing technology, make the production and business more competitive. The automation reconstruction, intelligence control, stable and safety operation for the existing production line
2.After-Sales Service
* Training how to install the machine, training how to use the machine,maintainenance.
* Engineers available to service machinery overseas.Providing professional support for the consultation of engineering technology and technical problem.

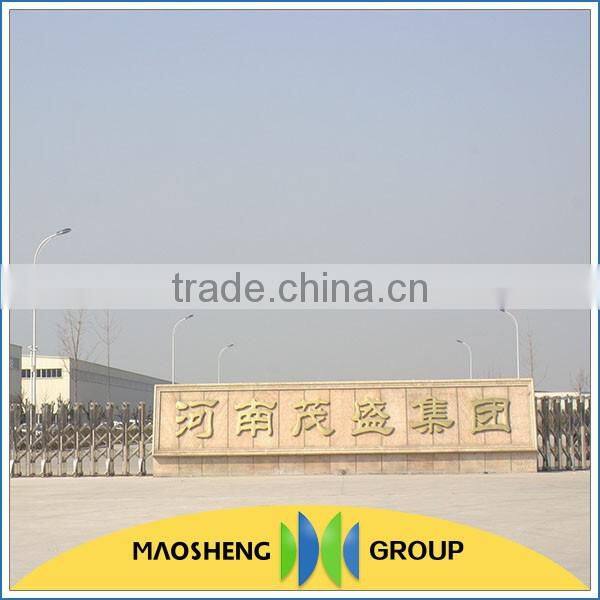

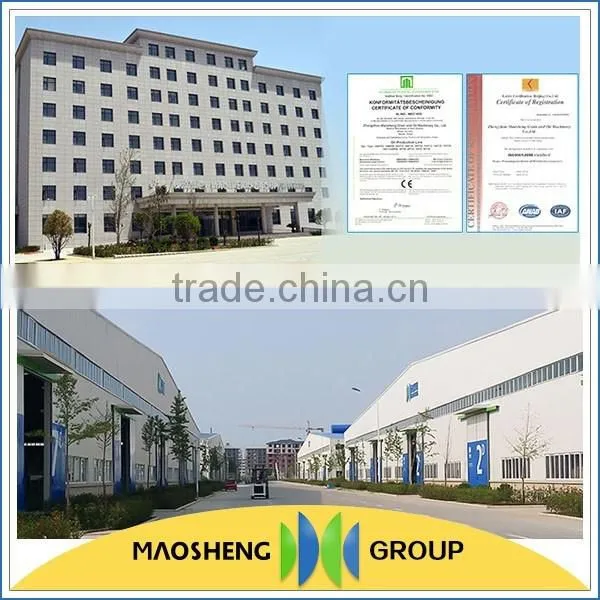

Henan Maosheng Group was founded in 1976, after nearly 40 years of development and growth, has become a well-known Chinese grain and oil machinery manufacturing enterprises with import and export rights, in 2002 passed the ISO9001 quality management system certification, National Food Processing Equipment Engineering Technology Research Center, the National agro-processing technology and equipment research and development sub-centers and the provincial post-doctoral research base development platform.
The company has total assets of over 400 million yuan, has a production plant three, with a total area of 900 mu, employees nearly 3,000 people. Now capable of producing more than 60 series over 300 kinds of specifications of the various types of grain and oil processing machinery (including wheat processing, corn processing, sesame cleaning, processing garlic, wine, grain grinding, etc.), and to undertake 10 to 1000 tons / day and food processing complete 5 to 12 t / h turnkey seed processing equipment, products sold in more than 30 provinces, municipalities, autonomous regions and exported to Southeast Asia, Africa, Europe and the United States, dozens of countries and regions. Leading products MS series of electrical control milling machine, FSFG series of new plansifter was named national key new products, high-tech products in Henan Province, Henan Province, brand-name products. "maosheng" brand was named the National milling machine well-known brands, "maosheng" trademark in Henan Province.
