Advanced technology soya bean oil extraction machine
- 30 Set / Sets per Month
- Qingdao Tianjin Shanghai or as your requirement
- T/T L/C D/P D/A Credit Card PayPal
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Other, soya bean oil extraction machine | Type: | Other, soya bean oil extraction machine |
Automatic Grade: | Automatic | Production Capacity: | 100%soya bean oil extraction machine | Place of Origin: | Henan, China |
Brand Name: | MS | Model Number: | 6YLsoya bean oil extraction machine | Voltage: | 220V/380V/440V |
Power(W): | 7.5kw | Dimension(L*W*H): | According to capacity | Weight: | According to capacity |
Certification: | ISO9001:2000 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Advanced technology soya bean oil extraction machine
Product Description for soya bean oil extraction machine
Product Name | Machine For soya bean oil extraction machine |
Material | steel |
Color | Grey,silver white or as your requirement |
Standard | ISO,CE,BV etc. |
Brand | Maosheng |
Application | Various kinds of oil seeds |

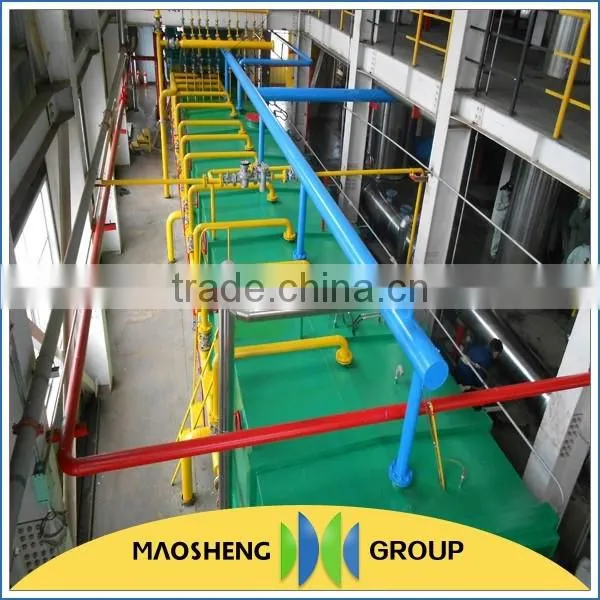

1. The raw material is conveyed to extractor hopper through feeding scraper, then enter into extractor through auger,after solvent spray,soak extract and drain off,fresh solvent spray and washing again(solvent and raw material flow reverse.
2. In final,the extraction meal after eventually drain fall into the wet meal scraper conveyor ,then transported to the DTDC desolventizer through auger.

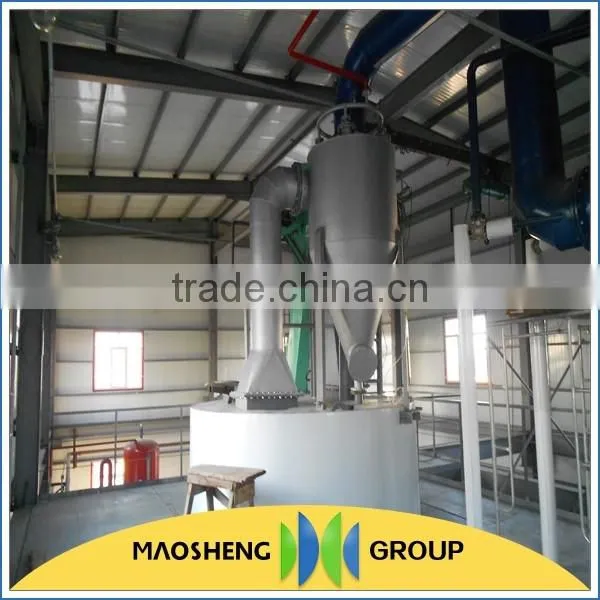

3. The meal after desolventizing is conveyed into the meal storeroom through auger and scraper; strong mixing oil after removing impurities by cyclone hydraulic separator,enter into mixed oil tank sedimentation to remove impurities again,then start the first-evaporator.
4. Desolventizer (DTDC)according to SCHAMERHER theory,through pre desolventizing,mixed desolventizing ,desolventizing,drying and cooling 5 sections which are filled with a lot of direct and indirect steam,get rid of solvent, through access to a lot of heat,cold air make meal’s moisture and temperature meet the need of storage,hydrolysis of urea enzyme to fulfill the requirements of good forage.
5. The mixed oil which is purificator,after the flow measurement,first start the first-evaporation,the heat source of first evaporation is comes from DTDC Desolventizer’s second steam and negative pressure condenser jet pump’s residual steam. The solvent is desloventizered by first-evaporation enter into vacuum condenser through separator.
6. Adopting negative pressure desolventizer can reduce mixed oil’s boiling point,improve the utilization rate of heat.The concentration of mixed oil after first-evaporation can achieve 70%,mixed oil flow by itself from first-evaporation to second-evaporation.
7. Second-evaporation use indirect steam to heat,the steam consumption of Second-evaporation is very low.the concentration of mixed oil can up to 95%.The mixed oil enter into stripper through pump,mixed oil is slowly fall down from the top of stripper to inside,at the same time inject direct steam from the bottom of stripper,get rid of the residual solvent,at the top of stripper,the mixed steam connect with vacuum condenser,this condenser is connect with inject pump,to make sure that the stripper is operated under negative pressure,at the bottom of stripper install liquid controller,make sure liquid seal and oil flow is stability.

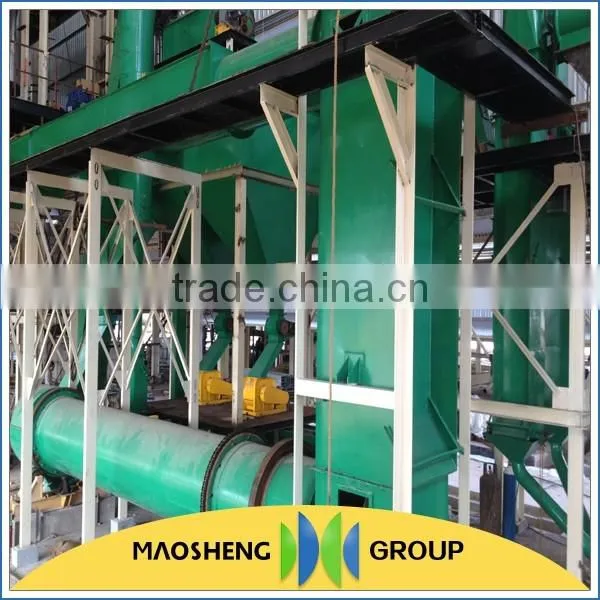

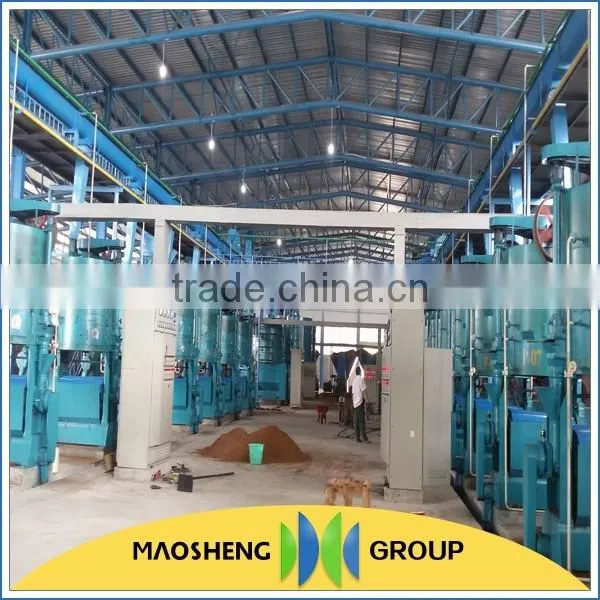

Product Show for soya bean oil extraction machine
Our Service for soya bean oil extraction machine
Pre-sale services
1. System evaluation:Project basic situation.
2. Solution: The investment budget, feasibility, rationality.
3. Product selection: Factory inspection; Site measurement; Technical discusion; Supply professional drawing and lists.
4. Win-win Cooperation: Sign the contract; Establish mutual benefit, strategic cooperative partnership.
In-sale Services
1. Design evaluation: Detailed technical assessment & arrangement; Design of process and equipment layout.
2. Procurement: Strictly inspection, optimized selection.
3. Acceptance: Acceptance test; Accepted deliverables.
In-sale Services
1. Design evaluation: Detailed technical assessment & arrangement; Design of process and equipment layout.
2. Procurement: Strictly inspection, optimized selection.
3. Acceptance: Acceptance test; Accepted deliverables.
Our company
Packing&Delivery for soya bean oil extraction machine
Our certificate

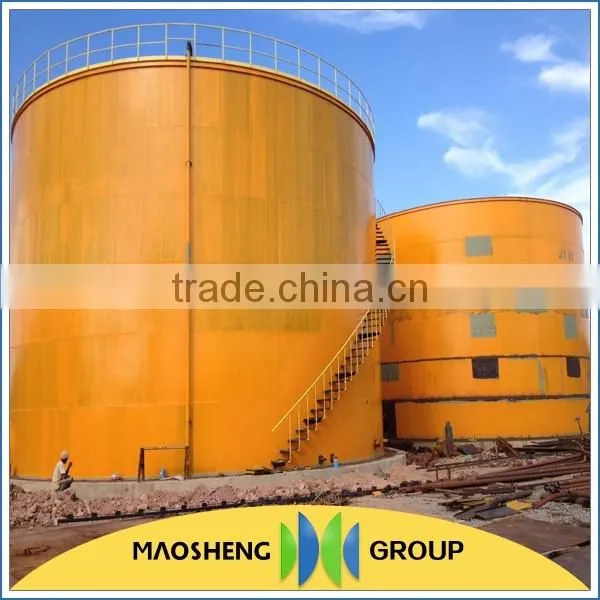

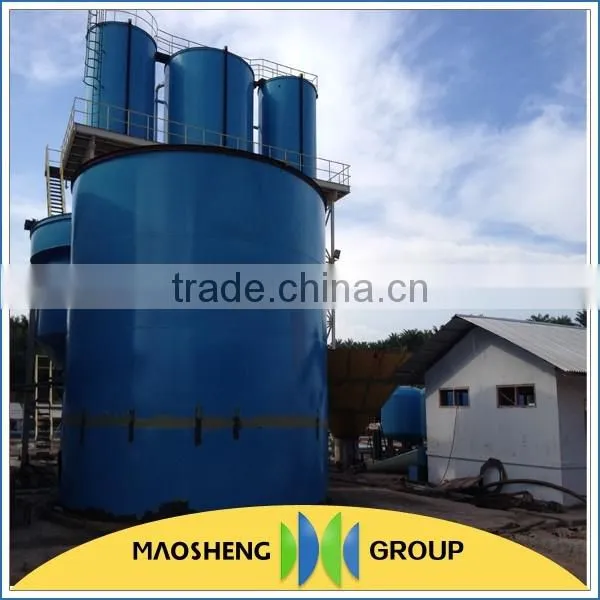

Installation site for soya bean oil extraction machine
FAQ for soya bean oil extraction machine
Q: How is the quality of your oil machine?
A: Our oil machine are manufactured strictly according to national and international standard, and we take a test on every equipment before being delivered out. We have got CE certification and all kinds of testing report; if you want please just ask us for it.
Q: What is the warranty for the oil machine?
A: Our products have the high quality, we can offer 12 months warranty. The time for the warranty is much longer than any other similar products.
Q: Can you manufacture the special products according to customers?
A: Of course the answer is YES. You can contact with us directly.
Q: How can costumers be sure they can get the products on time?
A: If we can not deliver the products during the ordered time, we can give back 100% your money. The third part, SGS can also help you check the machine before the delivery.
