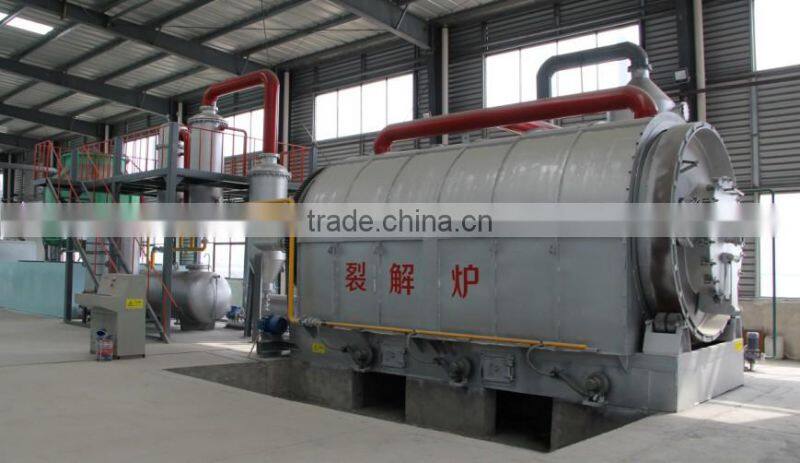

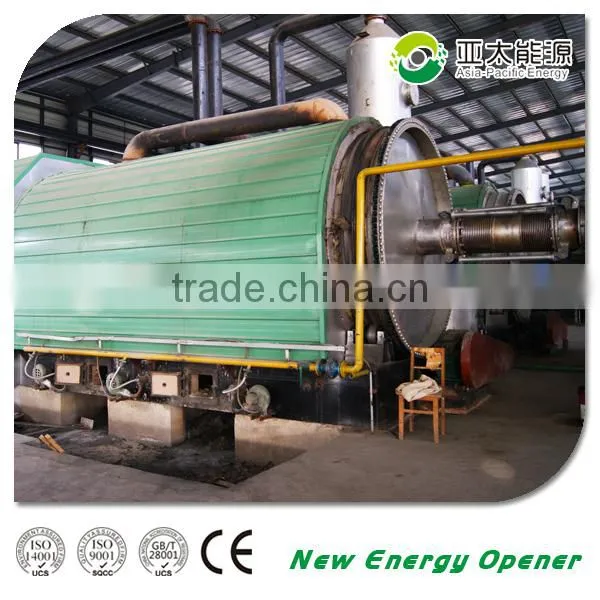

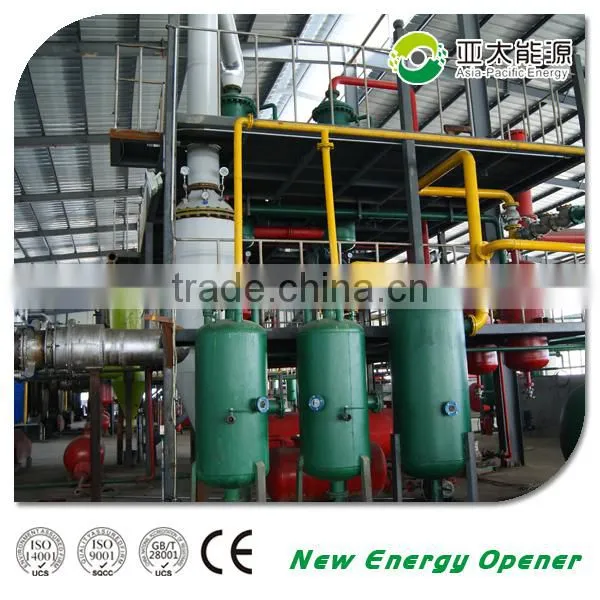

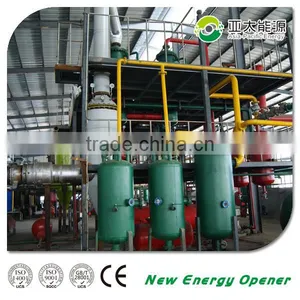

New Technology 10TPD Used Tire Tyre Pyrolysis Plant for Sale

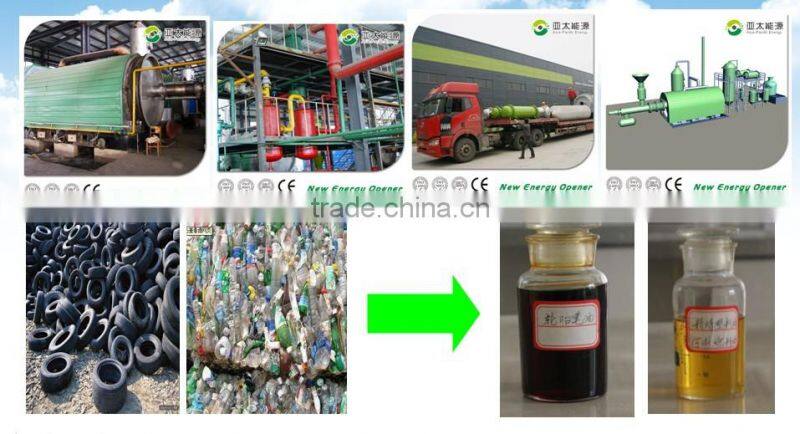

 Introduction of waste tyre pyrolysis plant

This plant supply automatic feed and automatic deslagging device, for make easy to feed and deslagging quickly, improve work efficiency. Pyrolysis process not need remove the silt, water, and steel etc. impurity; can take the waste tire, rubber, waste plastic and organic waste into the micro negative pressure process reactor. Raw material will through the high temperature heating to pyrolysis , get the mixture oil gas , and then through multistage segregator, multifunction refining tower to filter dealing, and the oil gas pass through cooling system get the good quality fuel oil. The whole process connect with micro negative pressure process system, this system can make the pressure of interior under the micro negative pressure.

The waste gas from reactor pyrolysis, one part make the use of waste heat through the special pipe to multifunction refining tower, and then enter into the counter-current wet dust removal process device, after reach the standard discharge; the other part some of noncondensable gas through the safety water seal to gas recycle system, as heating material burning.

Pyrolysis equipment safety

   Our company based on scientific development and harmonious and efficient concepts, always insist on safety first. In manufacturing, materials all according to national standards. Under the production of micro negative pressure, micro negative pressure system will be able to prevent the gas leakage. Non - condensable gas C1 to c4 organic hydrocarbons are the main components and hydrogen chloride and sulfur, formic acid, acetic acid and other corrosive gases, directly burning will have a very serious corrosion of equipment, or even cause a serious accident.

Our production process at present, using the latest new programed overpressure automatic blast replaces the pressure relief valve, and set up a system pressure relief device, the pressure balance guarantees the operation of the equipment.

Environmental protection equipment
1, the exhaust gas
Equipment during the operation of the exhaust gas is divided into two parts. Through a pipe from the remaining portion of the waste heat acting on the multi-distillation, thermal wet dust after finished countercurrent column, the treated exhaust fumes can reach GB13271 - 2001 emission standards. Another part of the non-condensable gas can pass retardant liquid seal nozzle return cracker and gas as fuel combustion, it is necessary to eliminate the air pollution, but also saves energy.
2, waste
Oil in the process, will produce some acidic wastewater (to produce 1 ton of oil will produce about 50 kg waste, the amount is small, easy to handle). By adding a weak lye, put the neutral water through the filter to reach harmless discharged into special evaporation processor (its heat of the flue of main processor heat), wet dust by countercurrent tower treatment compliance emissions, so that the cracker can provide energy, but also solve the problem of pollution.
3, waste solids
By catalytic pyrolysis of waste plastics, there will be some solid residues, waste plastic weight about 5% to about 10. Its main component is a coarse carbon black, the material has a combustion characteristics, can be used as a fuel for combustion. By the catalytic pyrolysis of waste tires, the remaining residue is carbon black, the first industrial production of carbon black can be used as raw material, and can also power plant with coal fly ash as a raw material mixed fly ash for manufacturing bricks (a kinds of environmentally friendly building materials) of raw materials, or made into carbon rod as fuel; Also, you can go through the carbon black deep processing equipment, raw materials for the production of rubber products or adsorbent.

 Summary of the product

Company's micro negative pressure Rotary device has a number of national invention patents, advanced technology, sophisticated technology. The devices are made of high-quality steel products during the manufacturing process and equipment in accordance with national standards making. Equipment Under the production of micro negative pressure, micro negative pressure system will be able to prevent the gas leakage. The whole process of running environmental pollution - free, full electronic monitoring system, simple, stable, safe and reliable.

Henan Asia-Pacific Energy Technology Co., Ltd established in 2005, is a professional manufacturer and exporter that is concerned with the design, development, and production of refining equipment and recycling equipment. We are specializing in manufacture oil refining equipment, including waste tire oil refining equipment, waste rubber oil refining equipment, waste plastic oil refining equipment and used oil refining equipment and biodiesel equipment. We are located in Shangqiu Development Zone, with convenient transportation access.

The total investment capital is 300 million RMB. We have 101-200 employees, including 12 QC and 22 research personnel. Our company has a number of independent intellectual property rights of patent technology.

Our company takes "Employee satisfaction, customer satisfaction and market satisfaction" as its management idea, adhering to the "responsibility, innovation, tenacity and environmental protection" enterprise culture, relying on the advanced production technology, with an open mind exposed to the energy industry.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
