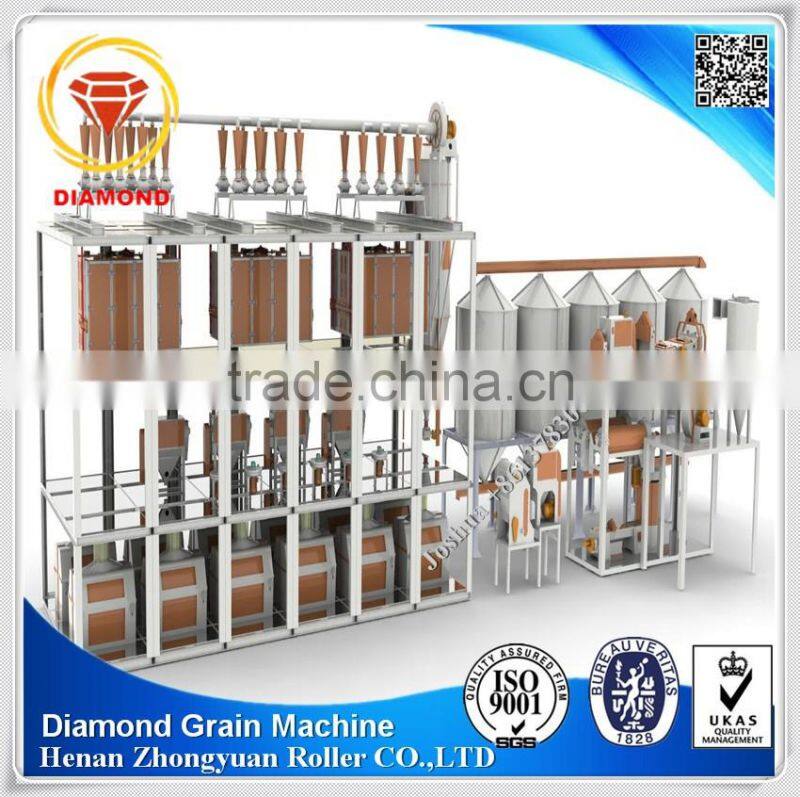

Flour mill Wheat flour milling machines flour milling machine
Application and Features of wheat flour milling machine
This wheat flour milling machine mainly uses in flour processing. This product strctures compact, design reasonable, contour artistic.
- Computerized auto-control,you can also manual cotrol or remote control in front of the mill.
- The rotate speed of feeding rollers will speed governing automaticly between 33r/min and 260r/min.
- The horizontal rollers constitute separate self-maintaining institution with the damping girder.
- Liquid crystal show the roll clearance,rotate speed of feeding rollers and percent of load power.
- It is equipped with denti-wedge belt drive of slow and quick roller
- The body of mill is welded with the high quality steel plate,sturdy and durable,beautiful apperance.
- The main control element and bearing are adopted the famous brand at home and abroad
Use reliable, smooth working, save power. Feeding series adopts double roller, and feeding uniformity, antomatism control, easy to operate, in the mill feed materials, resistance, It is a new equipment for wheat processing.
Technical data of wheat flour milling machine
Processing Line

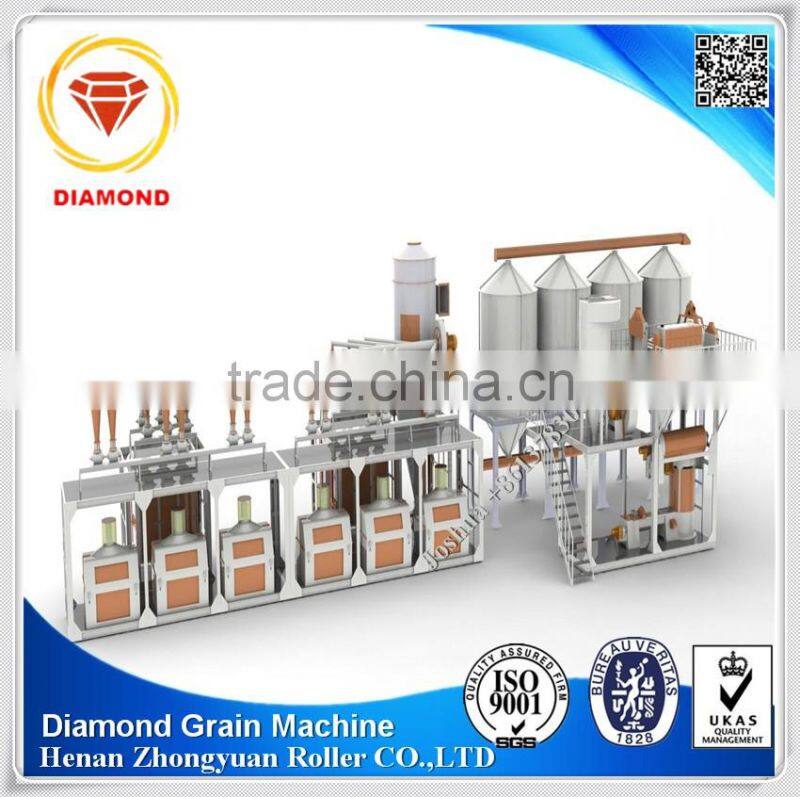

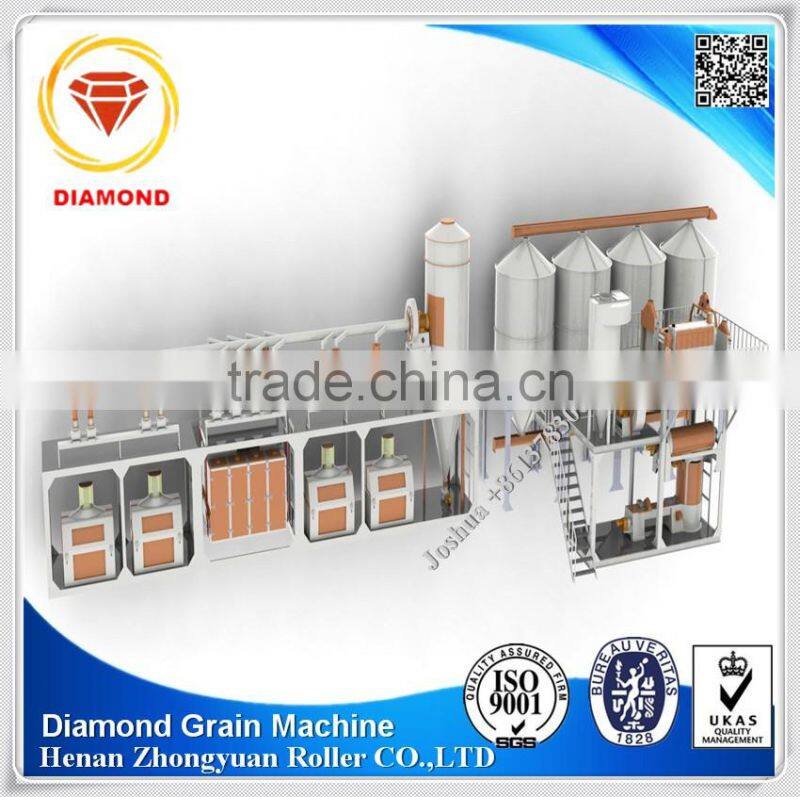

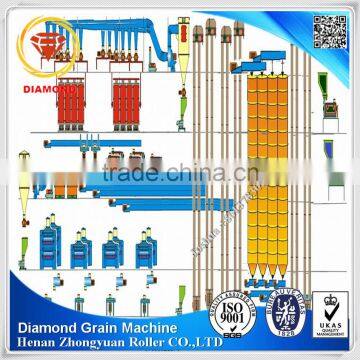

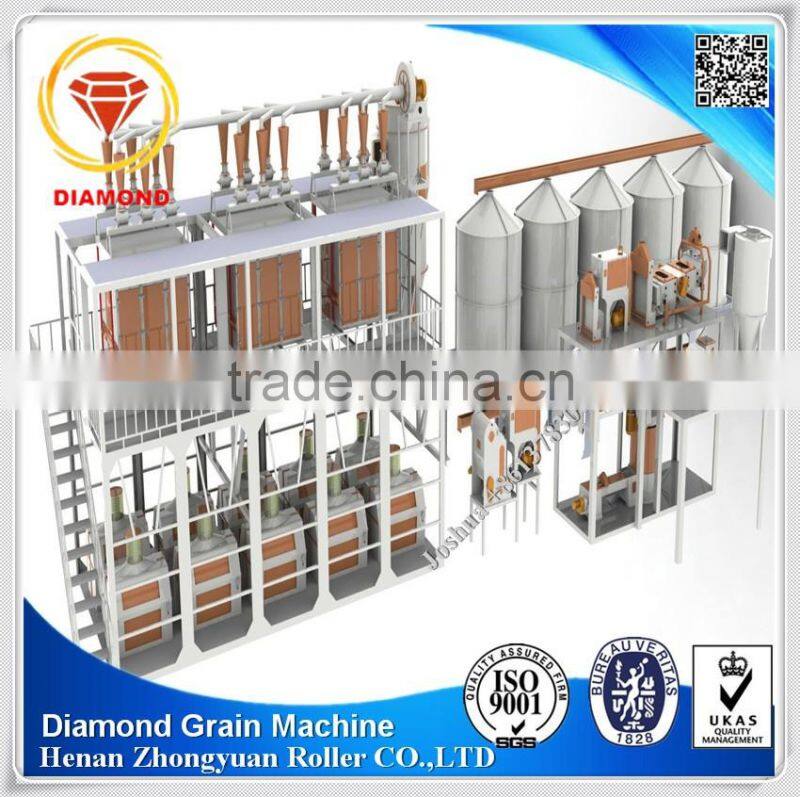

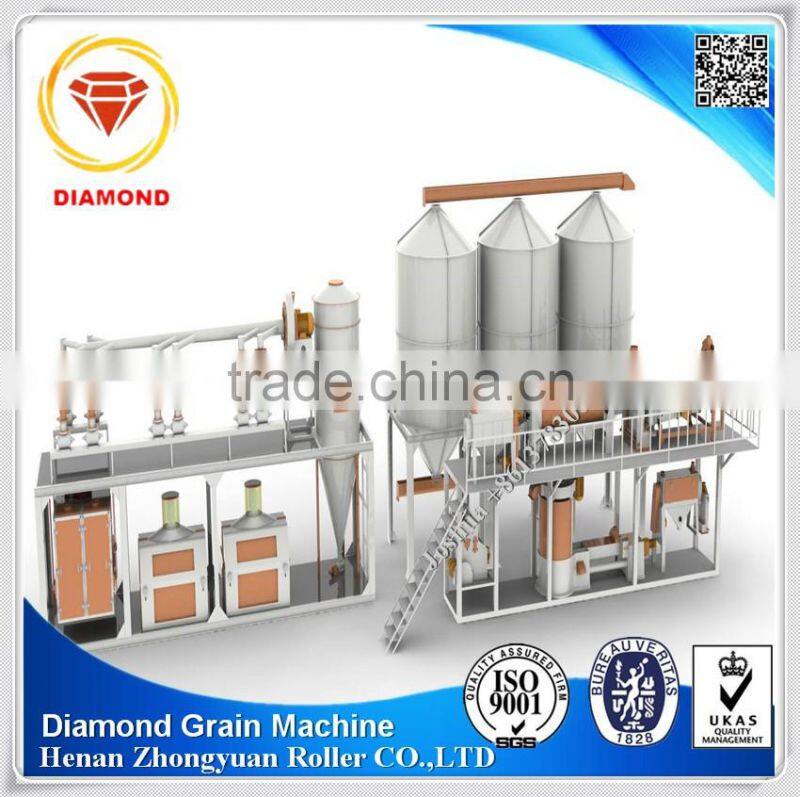

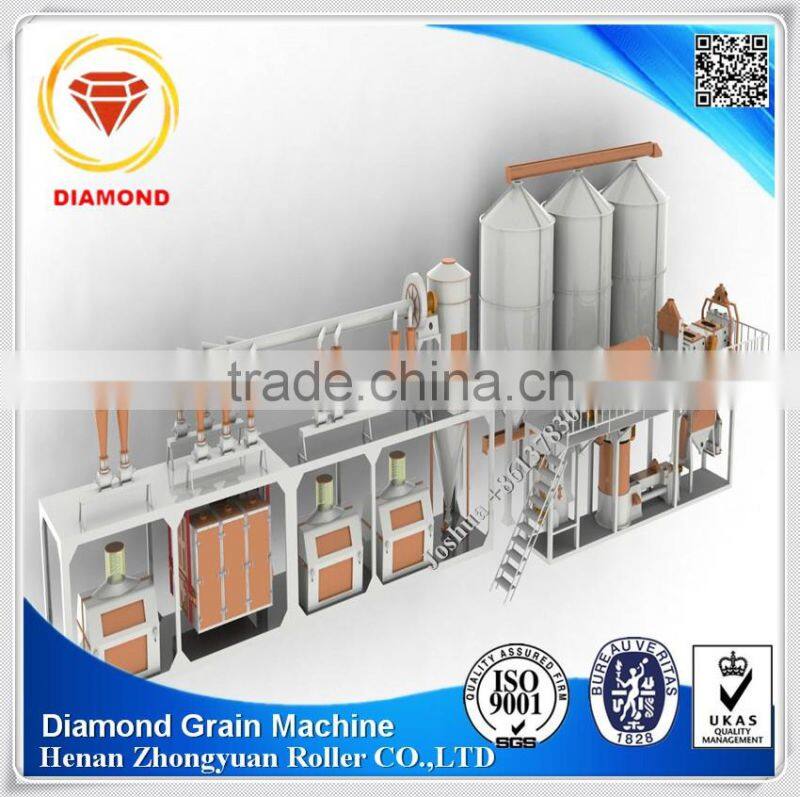

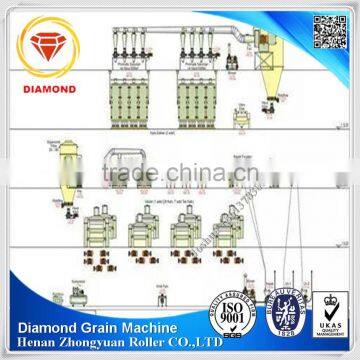

Complete set of wheat flour machine can be divided into four parts: cleaning part, milling part, packing part and PLC controlling part.
1. Cleaning part
to clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on. Includes beating, screening, destoner, magnetic separator and dampening. This section is to prepare for milling part and to protect the machinery as well.
2. Milling part
The second step, to mill the grain and separate the flour, bran and other by-product:
(1) Mill: mill the grain to break the integrity by the roller moving
(2) Sifter: to separate the flour, bran and other by-product, also separate large size and small size to ensure flour quality.
3. Packing part
The third step, the packing machine can be manual or automatic weighting and packing.
4. PLC controlling system
To controlling the whole set of machinery to work well and showing the process of working.
Our Advantages
1 | We provide a turnkey project for wheat flour mill plant. |
2 | Suitable design according to clients' requirements. |
3 | Advanced technology and reliable quality. |

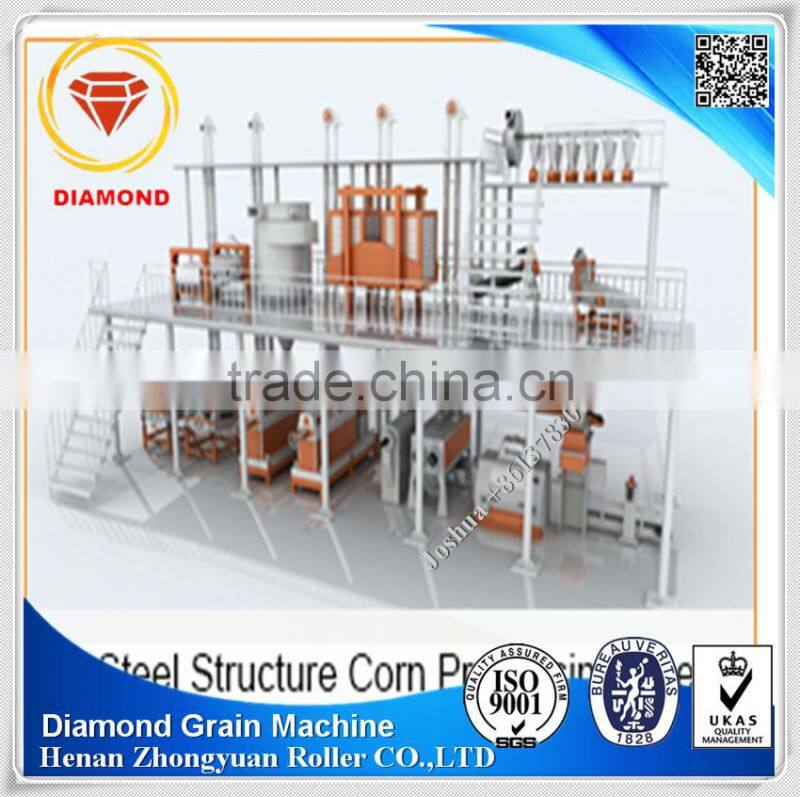

4 | Steel instructure or floor instructure |
5 | Professional engineers will be responsible for installation and training staffs. |
6 | Good quality & competitive price |
7 | Lifelong service |
Type Power(kw) Line Dimensions(m) Brief process
MF-30
spaure meters need : 87.2 16*7*7
Cleaning part: 2 siftings--2 scourings--1 destoning
---1 washing--2 magnetic separations
Milling part: 3 hulling and 3 wheat core millings,
separating wheat skin from wheat core to grind them partly.
MF-40
spaure meters need : 128.6 20*7*7.5
Cleaning part: three sieves, two beating,two removing stone, One washing and three magnetic selecting
Milling part: eight milling, two six-bin square sifter, one purifier and two bran finishers making up "4B,7M, 1S, 2T" process .
MF-50
spaure meters need : 135.5 28*7*7.5
Cleaning part: One screen, two scour, two destoner, one damper, and one magnetic separator.
Milling part: Four sets of double roller mill, three sets of Double-section high efficiency square sifter consist of the milling technology of four break, three reduction, one scratch ,one bran brusher
MF-100
spaure meters need : 300 35*7*15.7
Cleaning part: 4 break-5 reduction-1 scratch-1tail-2 purifying-1 inspection-2 bran brushing
Milling part: 3 sifting-2 scouring-2 destoning-3 magnetic separating-1 washing-2 dampening
All the wooden package for all the machine for the entire flour mill porcessing plant
we have the good relationship with APL, CMA,EMC,and many other shipping line ,we can get the best price from them
We provide a turnkey project of flour machinery, including special design, installation, commissioning and training workers.
All of our new equipment to contain one year free spare parts, and quality guarantee period of one year.
At the same time our company will carry on the lifelong service to our products.
Q1. What flour mill capacity can you provide?
A: We produce 5-1500 tons/24 hours, which means processing 30-500 tons wheat/corn per day.
Q2: Can wheat, corn and rice produced on the same production line?
A: Wheat, corn and rice normally can not producing on the same production line. Because the wheat grain and corn grain has different physical property and some parts need different equipments. Even the same equipments, the model is different.
Q3: What factors need to be considered to design and install a whole set of flour milling equipments?
A: Flour milling design need to consider the wheat/corn you are using, local geographical conditions, climate, power type, customer's request etc. So flour milling machine is different for customer from different country.
Q4: What payment terms do you accept?
A: T/T, 30% deposit, 70% balance before shipment or L/C at sight.
1.About us
Professional manufacturer specialized in grain processing project manufacturing
and installation with more than 60 years experience.Main products includes wheat
flour milling machine and maize milling machine. Our products have been exported
to 32 countries and regions such as Egypt, Ethiopia, India, Iran, Vietnam, Brazil etc.
The international Trade Division sets up sales dep., technical engineer dep., after sales
service dep.and documentation and logistical dep., which can manage engineer designing,
installation and service with professional staff.
2.Why chooes us
---Advanced equipments,good quality
---Professional skills,all-related services
---High quality and efficiency technology
---Complete production line,quick delivery
---60 years experience in flour mill industry
---Best solution for wheat and maize processing syste
---The biggest flour mill machine manufacturer and exporter in China
---Exporting to more than 40 countries with a presence world wide
