2.Pretreatment of corn oil:

The pretreament is the necessary to make the oil,generally speaking the pretreatment including cleanning,decladding,softening,flaker and so on.

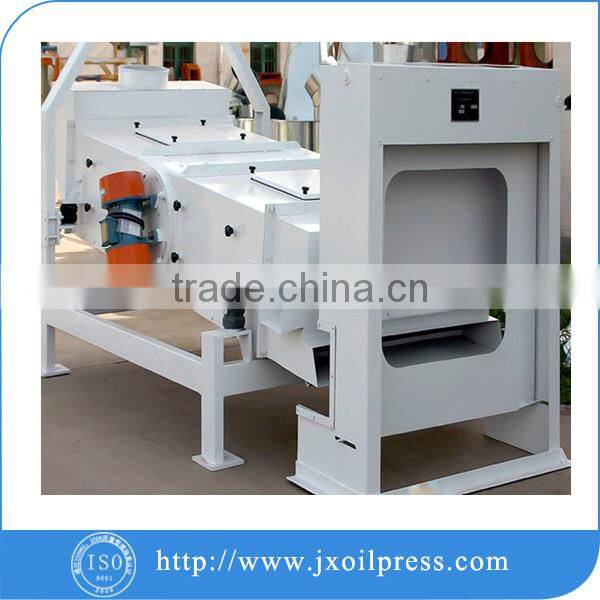

Cleaning: it will remove the impurity from the material to improve the quality of the oil.

Decladding:The sunflower seed have the skin, if not removing the skin,the skin will break the equipment, reduce the oil yield, and influence the oil color.

Softening: Increasing the material elastoplasticity by controlling the wet and the temperature,so that improve the oil yield.

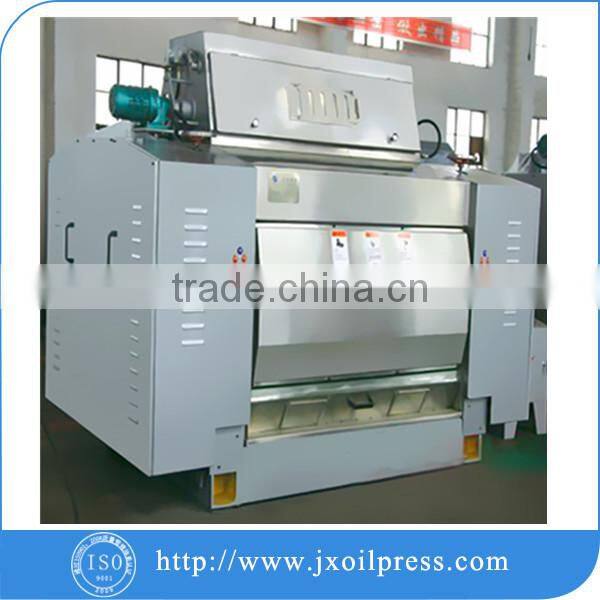

Flaker:The material should have the balance of the thickness,have the suit size,not lost of the oil and so on.

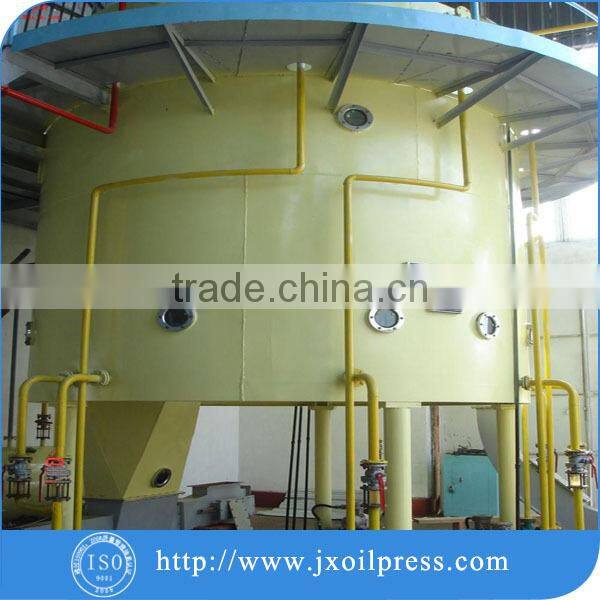

 3.Extraction:

Solvent extraction fits for pre-press extraction of high oil content  materials and direct once time extraction of low-oil-content materials.

The method of extraction:The direct extraction and the pre-pressing extraction.

The temperature of extraction:Below the initial boiling point solvent more or less 5℃.

The time of extraction:90-120 min.

Wet meal desolventizing and drying:Indirect steam heating combined with negative pressure steamdirectly stirring.

Mix the oil evaporation and stripping:Miscella filter→mix the oil tank→the first evaporator→ the second evaporator → stripping tower → extracted crude oil

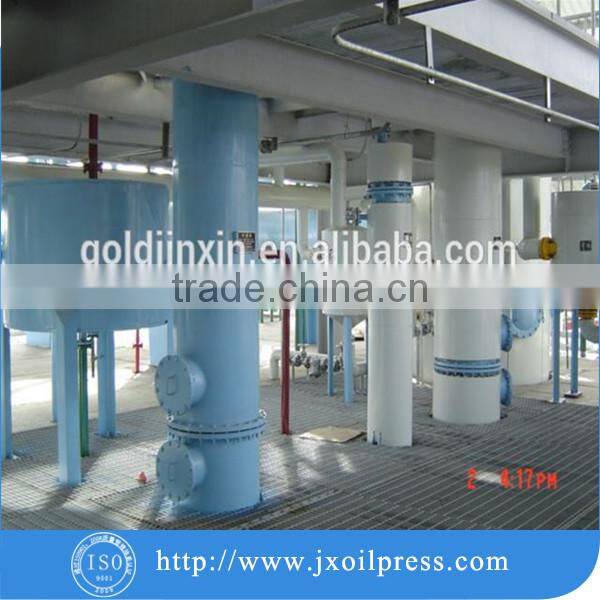

4.Refining

Degumming: We are using a special wet degumming,Thorough removal of colloid.

Decoloring :Premixing the a certain amount of clay with 20% degumming oil in the premix tank , then using the oil pump the premixing oil and the rest 80% oil in the vacuum decolorization tower to get rid of the pigment,then using platetype filter to separate the oil and the waste clay.

Dewaxing:Wax affects the taste of the oil and it's transparency.Poor solubility in oil, cannot be absorbed by human.

Deacidification /Deodorization:Avoid large amounts of neutral oil accident losses, using high temperature and high vacuum environment, by using the method of steam stripping deodorization, removing acid.

Degrease:Different from other oil. Effective separation of solid fat are critical in the process.

  Physical Refining

                                               Crude oils

                                              ↓

                                           ←  → Water-Degumming→Gums Drying→Lecithin

                           ↓                                ↓

 Gums ←Acid-Degumming                  Alkall- Neutralisation→ Soapstock Splitting→ Acid oil

                           ↓                                 ↓

                      Dewaxing                            Dewaxing

                                 ↓                                        ↓

                           Bleaching                           Bleaching

                                 ↓                                         ↓

Fatty Acids←Deacidification Deodorisation    Deodorisation→Distilled Fatty Acids

                                 ↓                                         ↓

                           Edible oil                               Edible oil

5 . Advantages of Sunflower Oil Mill

(1) High oil yield , obvious economic benefit .

(2) Lower residual oil rate in the dry meal .

(3) Improving the quality of the meal .

(4) Low processing cost , high labor productivity.
