High Efficiency Dry Powder Ball Press Machine/ briquette machine
1. Brief introduction of charcoal briquette making machine
Briquette machine is mainly used for high-density metal scrap (scrap iron, copper scrap, aluminum scrap, etc.), granular powder metal powder (iron powder, aluminum powder, copper powder, lead powder, etc.) , metallurgical additives, sponge iron, etc., without adding any binder pressed into the case of cylindrical cakes of high-density block (weight 2-8 kg), the cake density of up to 5T/M3 block above (the different raw materials, press out the cake block density and not quantity is not the same), pressed into the cake pieces can be directly cast furnace use.
2. Applications of charcoal briquette making machine
It is widely used in the field of metallurgy, chemical, refractories etc, for reducing bug dust, controlling volume, recycling, easy transportation and storage. It has the properties of high efficiency, energy saving and environment protection.
3. Technical parameters of charcoal briquette making machine
|
Model of machine |
GYQ1.0 |
GYQ1.5 |
GYQ2.0 |
GYQ3.0 |
GYQ5.0 |
GYQ6.0 |
GYQ10 |
|
Diameter of pressure roller(mm) |
φ367 |
φ367 |
φ399.5 |
φ522 |
φ738 φ700 |
φ738 |
φ858 |
|
Number of roller surface slot |
200 |
200 |
240 |
300 |
504 560 |
504 |
1000 |
|
Width of roller surface |
183 | 183
|
252 |
196 |
210 225 |
220 |
300 |
|
Model of bearing |
2097730 |
2097730
|
2097736 |
2097744 |
2097752 |
2097752 |
35168 |
|
Number of bearing |
4 sets |
4 sets |
4 sets |
4 sets |
4 sets |
4 sets |
4 sets |
|
Capacity designed (kg/h) |
1000 |
1500
|
2000
|
3000
|
5000
|
6000
|
10000 |
4. Suitable raw material for charcoal briquette making machine
Coal, coal fine, coal slurry, charcoal, charcoal dust, charcoal fine, metal powder, metal scrap, limestone, copper, sludge, iron oxide, peat, Carbon black, mineral powder, white coal, Lignite coal, brown coal
5. Working principle of charcoal briquette making machine
1.This series of charcoal briquette making machine will pass the powder on to the two pressure roller through the reducer.
2.The two sides and roll rotation, in both the rotating roll.
3.Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger.
4.When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak.
5.Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
6. Characteristics of charcoal briquette making machine
1). Operate easily and stably;
2). Convenient charging;

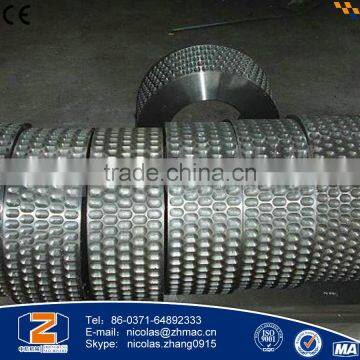

3). The machine can produce products with different shapes and specifications by changing the roller;
4). Use different roller to make different shape and size briquettes according to the users needs to meet and the demands of the market;
5). Multi-use, it can make different material briquettes.
6). High briquette ratio.
7). High intensity and high quality.
8). Easy operation and no flying dust
9). Smokeless, non-toxic, no peculiar smell, environment protective
7. Notice of charcoal briquette making machine
If you need our charcoal briquette making machine, pls give us the following information:
1. What is your raw material and its size? If the size is less than 3mm,don't need to use crusher,if bigger,we will match crusher for you.
2. What is the moisutre of material? If less than 15%,don't need to dry first,if bigger,then we need to match dryer for you at the beginning.
3. What is the final briquette shape and size you want? The shape can be round, pillow and square, the size can be 25~60mm,you can choose the one you prefer.

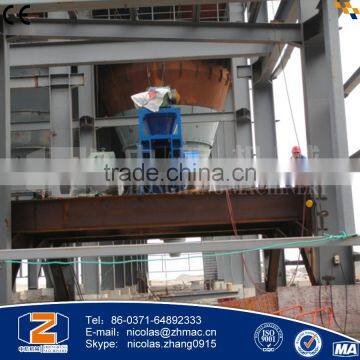

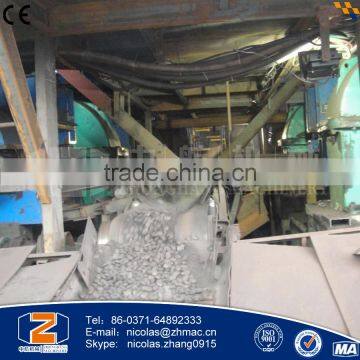

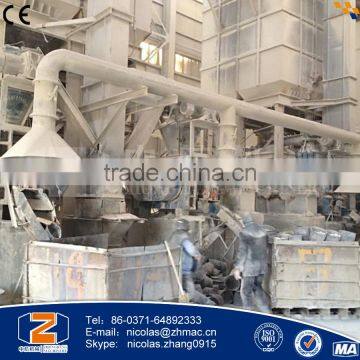

8. More pictures about charcoal briquette making machine
If you are interested in our charcoal briquette making machine, pls contact us feel free, and welcome to our factory for business negotiation!
