Charcoal and Coal Briquette Machine Matched To Coal Briquette Production Line
- 100 Set / Sets per Month
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Henan, China | Brand Name: | ZHONGHANG | Model Number: | DYQ |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Coal Briquette Making Machine1. Big capacity and low noise
2. No need adhesive
3. Widely used in ore and mineral powder
Charcoal and Coal Briquette Machine Matched To Coal Briquette Production Line
Introduction
This briquette machine is used for pressing coal powder, iron, coke, aluminum powder, iron filings, iron oxide skin, toner, charcoal powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, waste materials powder and waste residue. It is also widely used in refractories, electric powder plant, metallurgy, resource, chemical and other industries.This machine is energy-saving and easy to transport.Also,it increases the use of the waste materials and economical benefits.

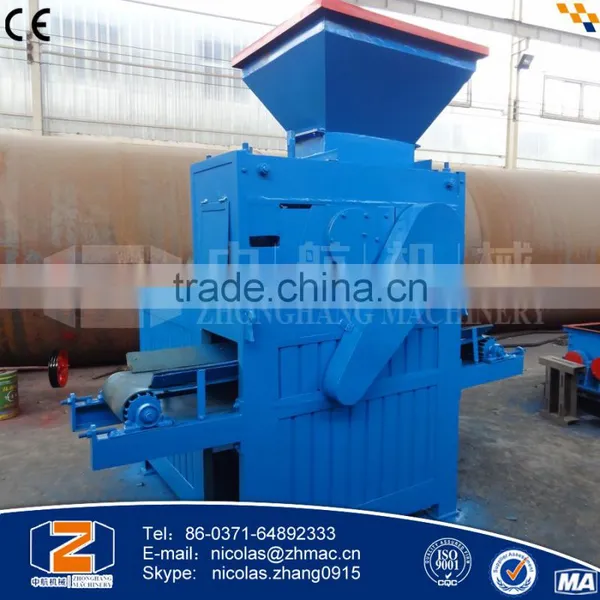

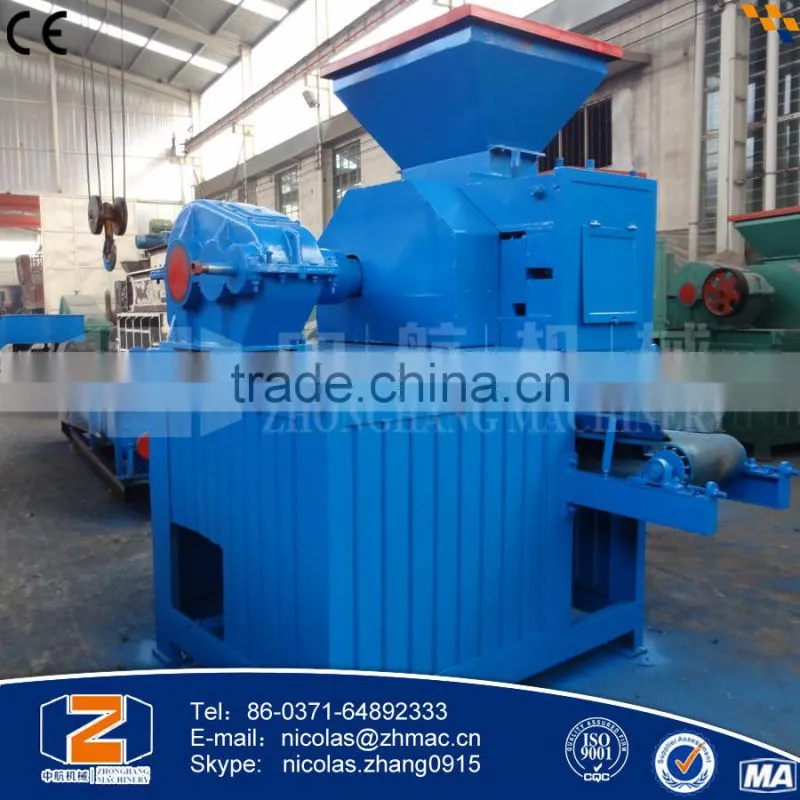

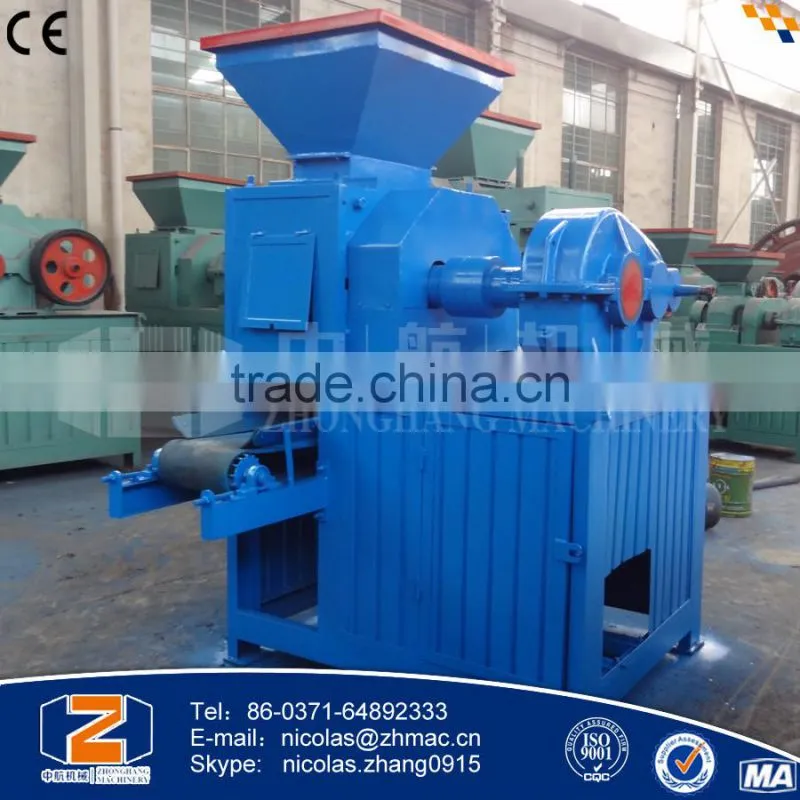

The coal powder ball press machine is mainly consisting of three parts: the feeding part, The transmission part, the Molding parts.
(1). Feeding part, mainly to realize feeding materials to the main machine quantitative, and make sure materials can enter into the rollers uniformly .
(2). The transmission part: the main driven system is electric motor--Triangle strip--speed reducer--open gear--roller.

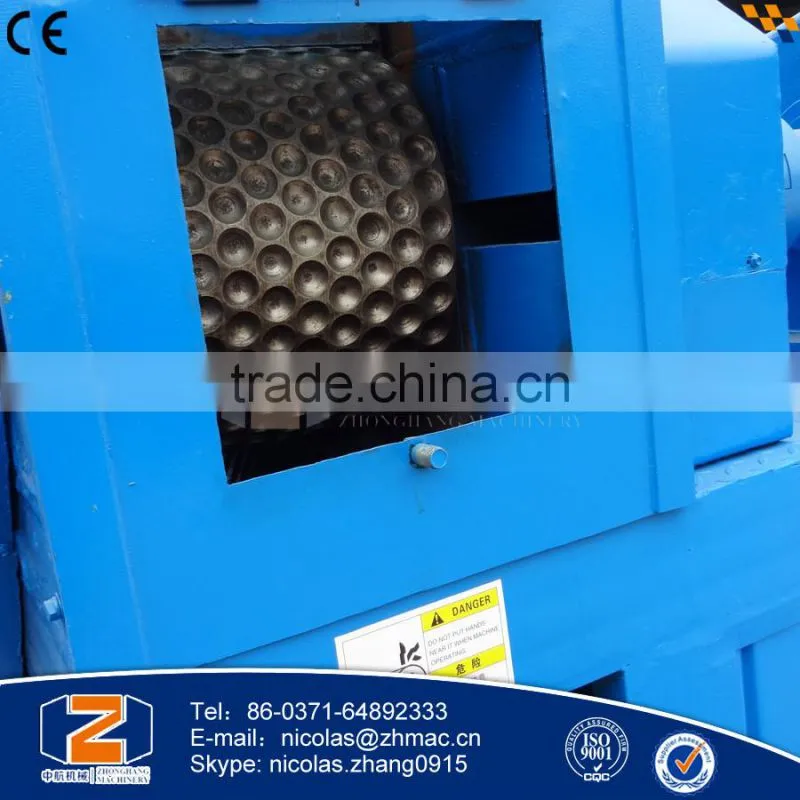

(3). The molding parts: mainly referring to the host part, the core part is roller.
Working Principle

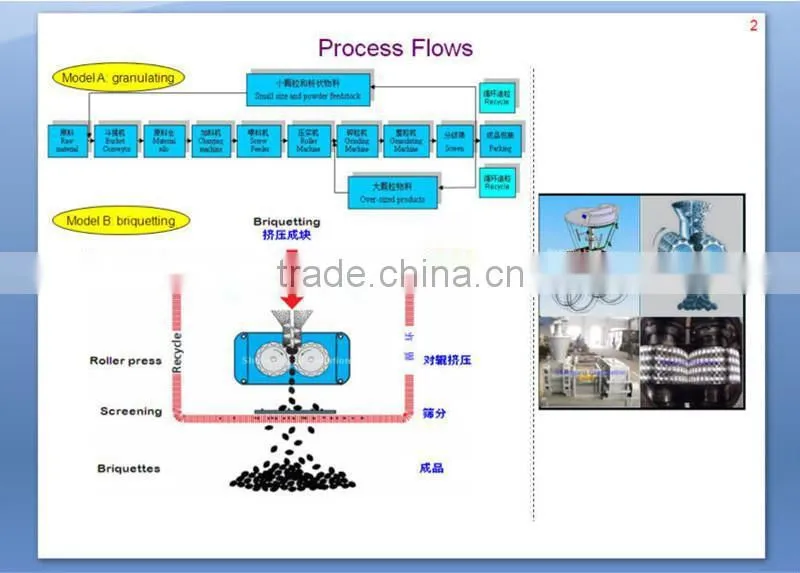

This series of briquette machine will pass the power on to the two pressure roller through the reducer.
The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak.Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

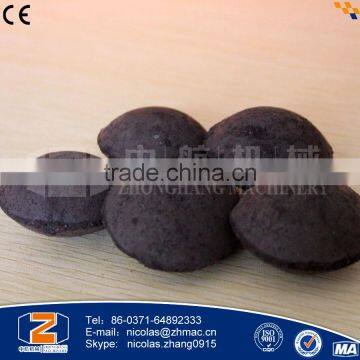

Molds and Samples of the finished coal briquettes
The material of the coal ball press machine could be 65 Mn or 9crsMo, or alloy steel.
Generally, there are two rollers type or four rollers type.

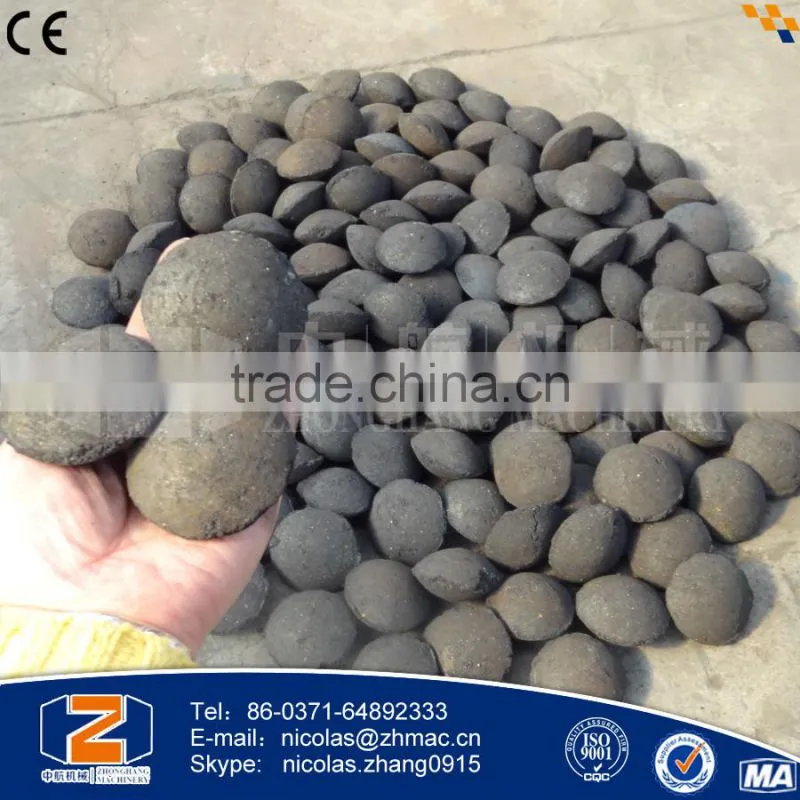

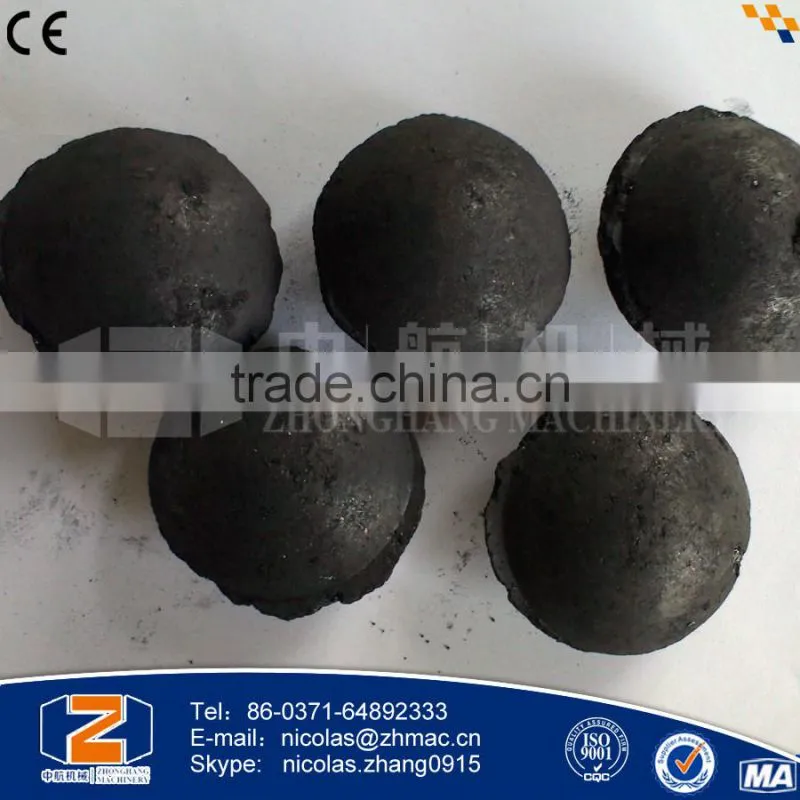

The shape of the finished coal briquettes could be egg shape, square shape, pillow shape etc.
The size of the finished coal briquettes is 30-60mm, and we can also offer it according to your requirement.
The finished coal briquettes have the features of energy conservation and environment protection, convenient to transport, improving the utilization rate of the waste material, having good economic and social benefit.
Features
The coal ball briquette press machine is used to process the coal powder into coal briquettes. Also it is used to press charcoal powder, iron powder, coke powder, aluminum, gypsum, sludge, kaolin and other powders, widely used in refractory, power plants, metallurgy, chemical industry, energy, transportation, heating and other industries.
Technical Paramaters
Model | DYQ360 | DYQ400 | DYQ500 | DYQ650 | DYQ750 | DYQ850 | DYQ1000 | |
Capacity | Hour | 3-5T/h | 4-7T/h | 8-10T/h | 12-20T/h | 25-30T/h | 35-40T/h | 40-45T/h |
Year | 10000T | 20000T | 30000T | 50000T | 70000T | 100000T | 200000T | |
Width of roller surface | 250mm | 280mm | 300mm | 336mm | 400mm | 500mm | 650mm | |
Diameter of pressure roller | 360mm | 430mm | 500mm | 650mm | 750mm | 850mm | 1000mm | |
Power | 7.5kw | 11kw | 15kw | 22kw | 30kw | 45kw | 130kw | |
Reducer model | ZQ350 | ZQ400 | ZQ500 | ZQ650 | ZQ750 | ZQ850 | ZQ1000 | |
ZQ400 | ZQ500 | ZQ650 | ZQ750 | ZQ850 | ZQ1000 | ZQ1250 | ||
Pressure Method | wedge block | wedge block | wedge block | wedge block | wedge block | wedge block | wedge block | |
bearing bars | bearing bars | bearing bars | hydraulic | hydraulic | hydraulic | hydraulic | ||
Roller Material | 65Mn | c | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | |
9Cr2Mo | 9Cr2Mo | 9Cr2Mo | 9Cr2Mo | 9Cr2Mo | 9Cr2Mo | 9Cr2Mo | ||
Model of Bearing and number | 319*4 | 319*4 | 2097724*4 | 2097732*4 | 2097732*4 | 2097734*4 | 20977*44 |
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide 2-years warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Why choose Zhonghang Company
We are manufacturer in Zhengzhou, which serves as the largest base of Chinese industrial technology, and the busiest container port in the world. The competition in this city is severe, only companies with ending technology, stable workforce, and effective cost management could survive. With 25 years of efforts and innovation ,our company is now a leading brand in China.
Affordable, high-quality machines. Our highly competitive price relies upon our ability to minimize our costs, of which our competitors don’t.
1. We are factory(NOT Dealer)
2. We own our factory & Land (NOT Rent)
3. Staff reside in factory(Stable Workforce)
Producing high-quality and reliable machines is always our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost, instead we manufacture our machines to supply you the best need.
