Specifications
1 material: SS304/SS3162 capacity : 200L-5000L
3 control : PLC auto-control
4.High quality

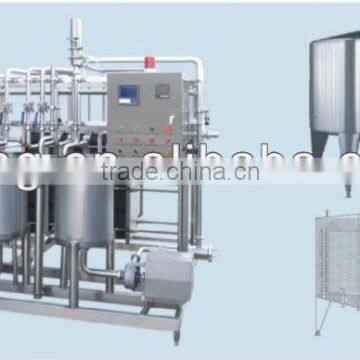

The sterilizing equipment is specially used for pasteurization of fresh milk and yogurt. The plates and stainless steel pipes are made of high quality SUS304 stainless steel. The temperature of material inlet is 5°C. The sterilization technology: fresh milk 120°C/15S and yogurt 95°C/300S. The temperature of material outlet is 5°C/45°C. The steam system adopts SPIRAXSARCO steam pressure relief valve, regulating valve and Denmark TEMPRESS temperature sensor. The control cabinet adopts Japan Fuji temperature controller and Schneider electric elements. The system has such functions as high temperature alarm and low temperature return flow, which have strictly guaranteed that all discharged materials conform to required technology parameters.
This equipment is composed of:
a) Plate type heat exchanger
b) Material balancing tank
c) Hot water balancing tank
d) Hot water pump of inlet
e) Material conveying pump
f) Hot water generator
g) Distribution cabinet
h) Temperature holding tank, stainless steel pipe, valve etc.
Technology: 4°C→65~70°C homogenization →120°C/15S→ 4°C 95°C300S→43°C
Spare: ice water 3:1(≤2°C) cooling water 3:1(30°C)
Technical Parameter
Model and specification | capacity(t/h) | Steam consumption(kg/h) | Steam pressure(bar) | Cooling water flow rate(Kcal/h) | Ice water flow rate(t/h) | Power kw) | Outline dimensions(l×w×h) | Weight (kg) | Pipe diameter(Φ) | ||
material | Steam | medium | |||||||||
BR16-PUT-SN-1t | 1 | 40/76 | 4.0 | 20,000 | 3 | 3.0 | 1.6×1.4×1.8 | 730 | 32 | DN25 | 32 |
BR16-PUT-SN-2t | 2 | 80/152 | 4.0 | 40,000 | 6 | 4 | 1.6×1.4×1.8 | 910 | 32 | DN25 | 32 |
BR16-PUT-SN-3t | 3 | 120/228 | 4.0 | 60,000 | 9 | 4 | 1.8×1.6×2.0 | 940 | 38 | DN25 | 38 |
BR16-PUT-SN-4t | 4 | 160/304 | 4.0 | 80,000 | 12 | 6 | 2.0×1.6×2.0 | 970 | 38 | DN32 | 51 |
BR16-PUT-SN-5t | 5 | 200/380 | 4.0 | 100,000 | 15 | 6 | 2.2×1.6×2.0 | 1030 | 51 | DN32 | 51 |
