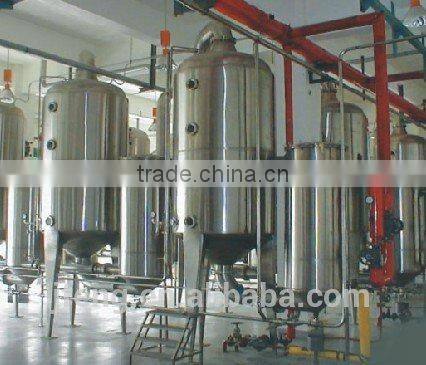

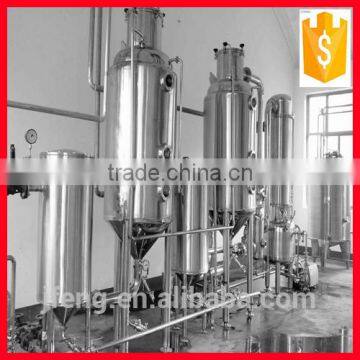

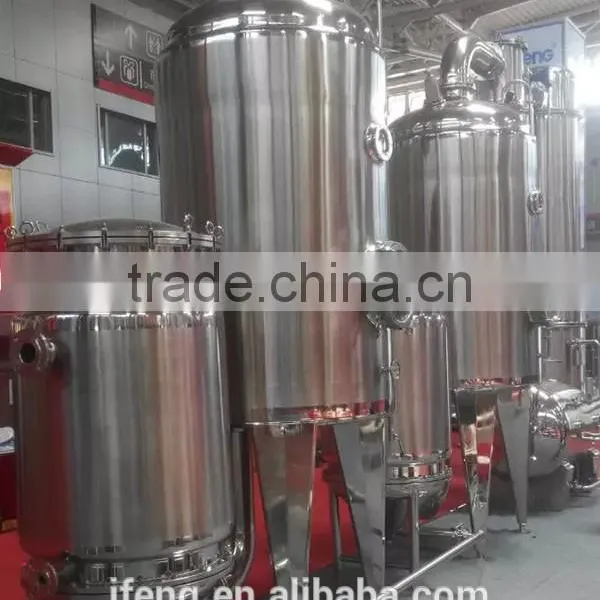

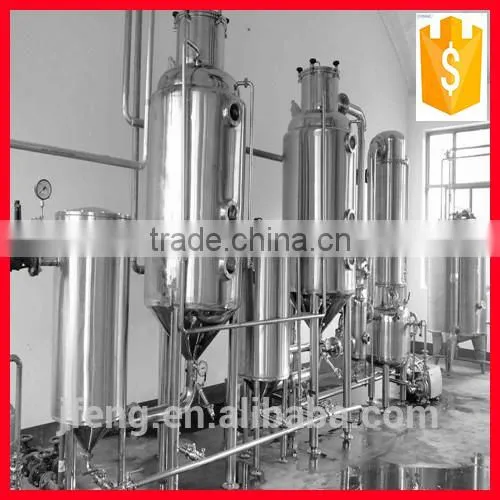

SJNII double effect vacuum evaporator concentrator
This concentrator is suitable for concentrating the fluid materials of traditional medicine, western medicine, grape sugar, starch, gourmet powder, food and milk products, chemical idustry, especially for ther-mal sensitive matter low temperature vacuum concentration.
Feature & profit:
Energy-saving profit:In case of SJN-1000, the saves respectively in the terms of vapor water and electric per year are about 3500 tons 90000 tons and 80000 watt, equal to RMB 100,000-150,000Yuan.
- The device uses the modes of outer-heated natural cycle and vacuum negative pressure evaporation featuring swift evaporation with concentration proportion of 1.2-1.35 (in case of normal China traditional immerse cream) without need of open-mouth pan for collection of cream.
- The concentrator uses dual-effect to synchronously vapor, which to utmost extent untilze the second vapor. The client can lower investment in boiler and the energy consumption can be 50% less than that of the single-effect concentrator. It is about less than one year that the client can withdraw the investment in the concentrator.
- Feature of multiple function handle:(1)The reclaimable alcohol concentration is about 80%.(2) The single-effect and dual-effect can time after time collects cream together, (3)The intermitten and continuous material feeding is available.
- The special structure of concentrator can bring the concentrated material thick taste and even cream quality, The concentration under the seal and non-bubble condition can prevent material loss and pollution, The present material can be concentrated presently, which features immune to block and convenient cleaning which can be make just by opening the up and down covers and can be make by one person.
- The part inside the concentrator in contact with the material is made with stainless steel SUS304. The thermal layer made with polyuerthane is available at the heater and evaporator, The surface is treated with sand grinding and surface polishing, meeting with the GMPstandard.
Technology parameter:
Specification Type | SJN2-500 | SJN2-1000 | SJN2-1500 | SJN2-2000 | |
evaporation quality(kg/h) |
500 |
1000 |
1500 |
2000 | |
steam consumption(kg/h) |
≤250 |
≤500 |
≤750 |
≤1000 | |
External dimensions LXWXH(m) |
4x1.5x3.3 |
5x1.6x3.5 |
6x1.6x3.7 |
6.5x1.7x4.3 | |
Circulation consumes the water yield (T/h) |
8 |
12 |
16 |
18 | |
Evaporate temperature) |
first effect |
80-90 |
Mpa Vacuity |
first effect |
0.02-0.04 |
Second effect |
55-70 |
Second effect |
0.05-0.06 | ||
Mpa Steam pressure Mpa) |
0.25 |
Concentrate proportion |
1.2-1.3 | ||
Vessal type |
Grade 1 | ||||
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
Under the long-term objective of " serving the world ", the company has introduced a large contingent
of high-quality and well-trained professional talents, including 2 senior engineers of professor title,
6 senior engineers, and 20 technicians of intermediate titles.
The company has applied advanced management system to effectively organize,coordinate,standaraize
and control various resources of the company and the whole production and management process.Morever,
it has constantly made technical exchanges with relevant scientific research institutes and experienced experts
in the industry to continuously promote the scientific research and innovation ability, striving to further improve
Jufeng advantageous strength through " advantageous talents,advantageous managemnet, advantageous technology and advantageous equipment"
Q------What’s the Payment Term?
A------ By T/T in Advance, or Irrevocable L/C at Sight.
Our equipments can be customized, leave an inquiry to know more details about price, packing, shipping and price.
