Brief introduction
………………………………………………………………………………………………………………………………………………

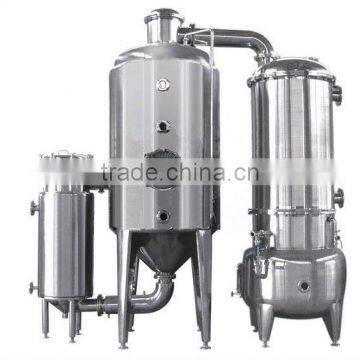

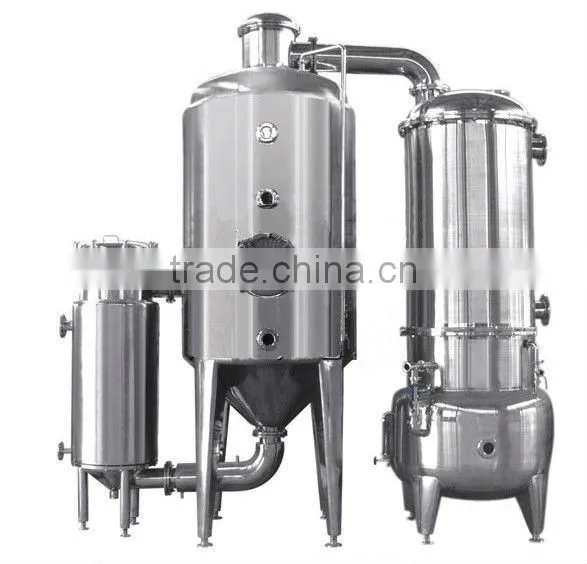

Product name: Stainless steel multifunctional alcohol recovery concentrator
Material: stainless steel SUS304, SUS316L
Application: food,dairy, beveage, biochemical, cosmetic processing
The equipment is applicable for industrial alcohol recycling of traditional Chinese medicine, western medicine, glucose, wine brewing, starch, oral liquid, chemical industry, food and monosodium glutamate. It can be used in low temperature vacuum concentration,of heat sensitive substances with small batches and large varieties.
Equipment characteristics:
- Alcohol recovery: Large recovery capacity. Adopt vacuum operation method and improve the process flow of device. The recovery rate can amount to 95%, the loss rate of alcohol is lower than 5% and the energy consumption is 30% reduced. It is the energy saving equipment with small investment and high recovery benefit.
- Liquid concentration: The equipment adopts external heating natural cycling mode and vacuum negative pressure evaporating mode, with instant evaporation and great concentrated specific gravity up to 1.4. The liquid materials are concentrated without foam under the completely sealed status. The liquid medicine concentrated from the equipment has no pollution, and has strong flavor of medicine. It’s easy to clean. Just open the upper and lower covers of the heater. The operation is convenient, the space is small, the appearance is beautiful and the heater, evaporator and heat preservation are completely equipped before leaving the factory. The parts of the equipment contacting with liquid materials are made of SUS 304 stainless steel. The heat preservation adopts polyurethane foaming or pearl cotton and the exterior surface adopts grinding semi-luster polishing. It is accordance with GMP medicine standard.
Technology parameter
Model and specification |
DJN-500 |
DJN-1000 |
DJN-1500 |
Evaopration quantity(kg/h) |
500 |
1000 |
1500 |
Density of recovery alcohol |
85% |
85% |
85% |
Recovery quntity(kg/h) |
200 |
350 |
500 |
Steam pressure(Mpa) |
0.098 |
||
Vcuum degree |
0.06-0.07Mpa |
||
Heating area(m2) |
8 |
16 |
25 |
Volume of evaporation room(m2) |
1 |
1.5 |
2 |
Condensing area(m2) |
10 |
15 |
20 |
Cooling area(m2) |
6 |
12 |
16 |
Steam volume(m2) |
0.2 |
0.3 |
0.3 |
Steam consumption(kg/h) |
500 |
1000 |
1500 |
Water consumption(t/h) |
7 |
12 |
20 |
Vent of heated steam(m/m) |
40 |
40 |
50 |
Intel and outlet of cooling water(m/m) |
40 |
40 |
50 |
