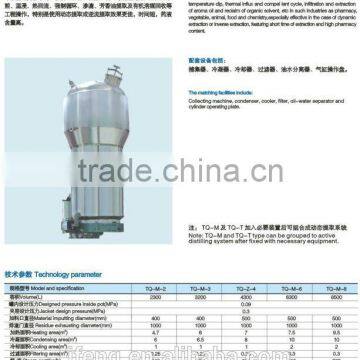

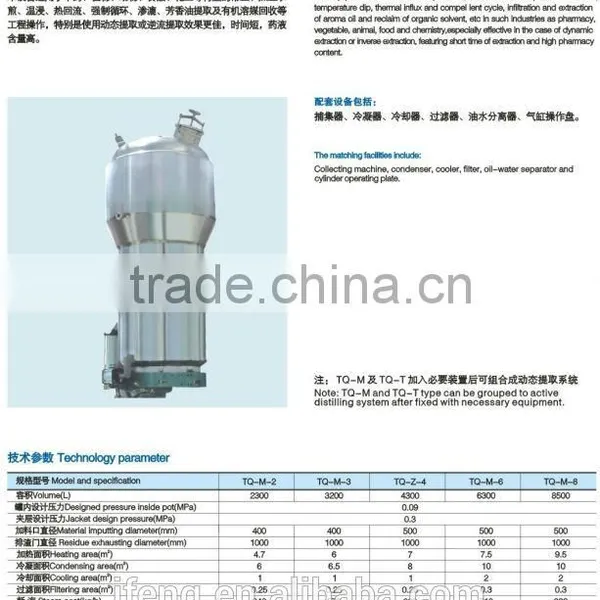

Help CenterTQ-M-2 Series Multifunctional Extraction Tank
Related Products
-
WZIII 1000kg Multifunctional Single Effect ConcentratorUS$ 1,000 - 10,000MOQ: 1 Set -
JFCQ- 3000 Extracting TankUS$ 5,000 - 30,000MOQ: 1 Piece
-
JFCQ- 2500 Extracting TankUS$ 1,000 - 10,000MOQ: 1 Piece
-
JFCQ-2000 Series Extracting TankUS$ 5,000 - 20,000MOQ: 1 Piece
-
TQ-Z-6series Stainless Steel ExtractorUS$ 10,000 - 50,000MOQ: 1 Unit
Usage: The equipment serves as normal pressure, temperature dip, thermal influx and compel lent cycle, infiltration and extraction of aroma oil and reclaim of organic solvent, etc. in such industries as pharmacy, vegetable, animal, food and chemistry, especially effective in the case of dynamic extraction or inverse extraction, featuring short time of extraction and high pharmacy content.
The matching facilities including:
Collecting machine, condenser, cooler, filter, oil-water separator and cylinder operating plate.
Technology parameter
Model and specification |
TQ-M-2 |
TQ-M-3 |
TQ-M-4 |
TQ-M-6 |
TQ-M-8 |
Volume(L) |
2300 |
3200 |
4300 |
6300 |
8500 |
Designed pressure inside pot(Mpa) |
0.09 |
||||
Jacket design pressure(Mpa) |
0.3 |
||||
Material imputting diameter(mm) |
400 |
400 |
500 |
500 |
500 |
Heating area(m2) |
4.7 |
6 |
7 |
7.5 |
9.5 |
Condensing area(m2) |
6 |
6.5 |
8 |
10 |
10 |
Cooling area(m2) |
1 |
1 |
1 |
2 |
2.2 |
Filtering area(m2) |
0.25 |
0.25 |
0.25 |
0.3 |
0.3 |
Residue exhausting diameter(mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
Steam cost(kg/h) |
346 |
570 |
660 |
718 |
903 |
Water cost(t/h) |
2.5 |
4.2 |
4.5 |
5.4 |
6.7 |
Steam water outlet(mm) |
32 |
40 |
40 |
50 |
50 |
Gas exhausting orifice(mm) |
100 |
125 |
125 |
150 |
150 |
Condensed water outlet(mm) |
32 |
32 |
40 |
40 |
50 |
Motor power(KW) |
3 |
4 |
5.5 |
5.5 |
7.5 |
Agitating speed(r/min) |
24 |
24 |
36 |
36 |
36 |
Note: TQ-M vertical conic type can be grouped to active distilling system after fixed with necessary equipment.
