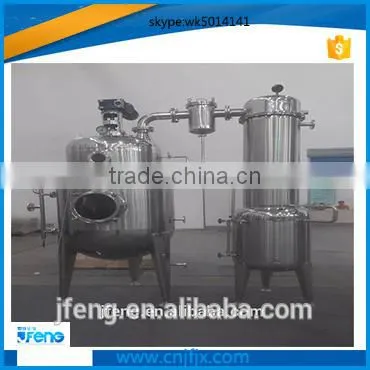

QN -series scraper vacuum distillation concentrator
Application
Technical parameter
Specification | Model | QN-300 | QN-500 | QN-700 | QN-1000 | |
Evaporation quanity (kg/h) | 70 | 120 | 145 | 195 | ||
Nominal volume (L) | 300L | 500L | 700L | 1000L | ||
Inside diameter of ball(mm) | 800 | 990 | 1115 | 1250 | ||
Steam pressure (Mpa) | 0.09 | |||||
Vacuum degree (Mpa) | 0.06-0.07MPa | |||||
Heats up the area (m2) | 1.1 | 1.6 | 2 | 2.5 | ||
Condensation area (m2) | 2.4 | 3.2 | 3.5 | 4.5 | ||
Equipment weight (kg) | 380 | 450 | 630 | 950 | ||
steam consumption(kg/h) | 77 | 132 | 159 | 214 | ||
water consumption(T/h) | 2 | 4 | 6 | 7 | ||
steam inlet(mm) | 25 | 25 | 40 | 40 | ||
water inlet and outlet(mm) | 30 | 30 | 40 | 40 | ||
Out size(mm) | L | 1900 | 2030 | 2100 | 2335 | |
W | 1100 | 1200 | 1300 | 1520 | ||
| h | 2300 | 2500 | 2500 | 2765 | ||
With the development of market demands and the improvement of production technology, the company is gradually increasing its business range, which includes fruit juice, beverage, dairy turn-key projects, biological engineering, pharmaceutical engineering, sanitary fluid fittings, etc.
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
About Delivery time
Q-----What’s the delivery term for making business with us?
A----- FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;
About Lead Time
Q------What’s the lead time after placing order?
A------Usually it takes about 25~30 days after we received your deposit.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
About Payment Term
Q------What’s the Payment Term?
A------ By T/T in Advance, or Irrevocable L/C at Sight.
Our equipments can be customized, leave an inquiry to know more details about price, packing, shipping and price.
