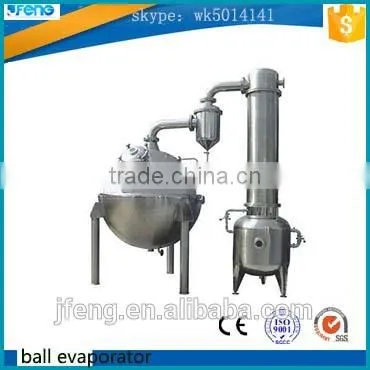

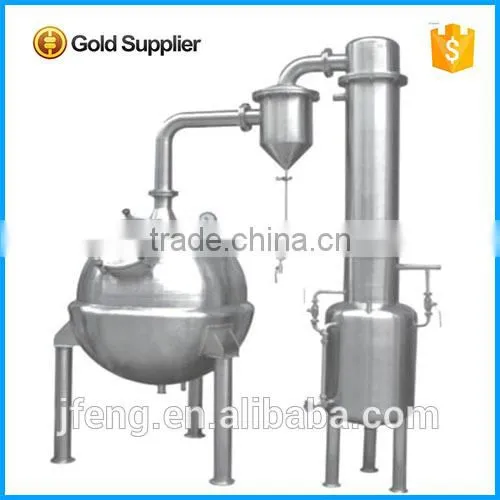

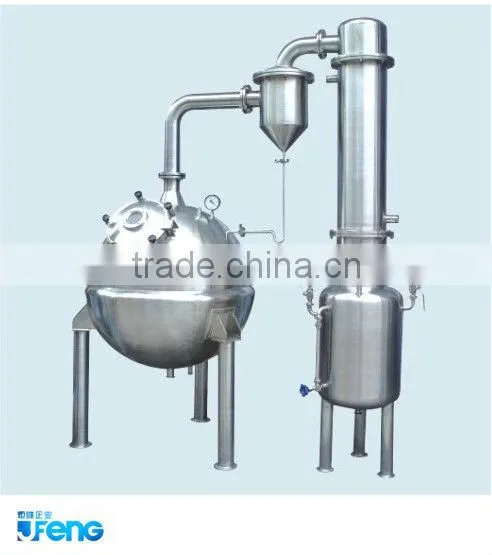

QN-300 series spherical vacuum Evaporator
Application

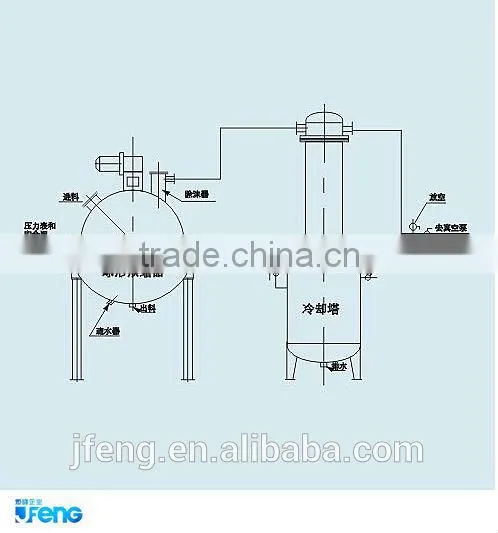

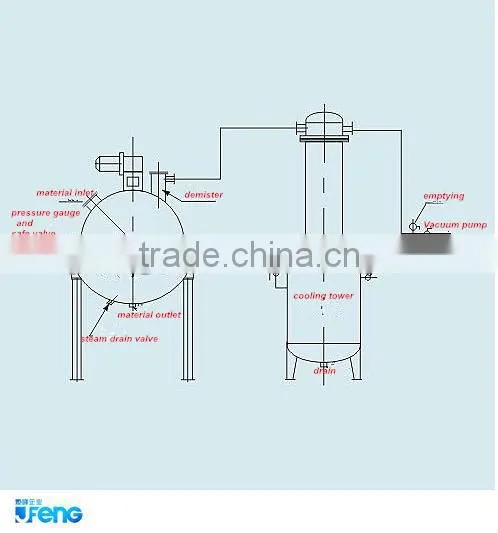

The sphere concentration pot mainly by the concentration pot main body, the condenser, the steam fluid separator, is composed the fluid barrel four parts, may use in to manufacture drugs, profession and soon food, chemical industry to material craft and so on fluid concentration, distillation and organic solvent recycling. Because uses the reduced pressure concentration, therefore the concentration time is short, also cannot destroy the material active principle. This equipment and the material contact are partial is the stainless steel manufacture, has the good anti-corrosive performance ,durable, conforms to the GMP medicine standard.
Technical parameter
Specification | Model | QN-300 | QN-500 | QN-700 | QN-1000 | |
Evaporation quanity (kg/h) | 70 | 120 | 145 | 195 | ||
Nominal volume (L) | 300L | 500L | 700L | 1000L | ||
Inside diameter of ball(mm) | 800 | 990 | 1115 | 1250 | ||
Steam pressure (Mpa) | 0.09 | |||||
Vacuum degree (Mpa) | 0.06-0.07MPa | |||||
Heats up the area (m2) | 1.1 | 1.6 | 2 | 2.5 | ||
Condensation area (m2) | 2.4 | 3.2 | 3.5 | 4.5 | ||
Equipment weight (kg) | 380 | 450 | 630 | 950 | ||
steam consumption(kg/h) | 77 | 132 | 159 | 214 | ||
water consumption(T/h) | 2 | 4 | 6 | 7 | ||
steam inlet(mm) | 25 | 25 | 40 | 40 | ||
water inlet and outlet(mm) | 30 | 30 | 40 | 40 | ||
Out size(mm) | L | 1900 | 2030 | 2100 | 2335 | |
W | 1100 | 1200 | 1300 | 1520 | ||
| h | 2300 | 2500 | 2500 | 2765 | ||
With the development of market demands and the improvement of production technology, the company is gradually increasing its business range, which includes fruit juice, beverage, dairy turn-key projects, biological engineering, pharmaceutical engineering, sanitary fluid fittings, etc.
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
About Delivery time
Q-----What’s the delivery term for making business with us?
A----- FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;
About Lead Time
Q------What’s the lead time after placing order?
A------Usually it takes about 25~30 days after we received your deposit.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
About Payment Term
Q------What’s the Payment Term?
A------ By T/T in Advance, or Irrevocable L/C at Sight.
Our equipments can be customized, leave an inquiry to know more details about price, packing, shipping and price.
