Latest Design Of Pyrolysis Machine and Oil Refine/distillation to Diesel

Xinxiang DOING GROUP are specialized in manufacturing  Pyrolysis machine and oil refine/distillation to Diesel  , pyrolysis machine, pyrolysis plant, plastic to oil plant and oil distillation machine, oil refining machines, tire oil / plastic oil / engine oil / motor oil / ship oil refining plants. We have two workshops producing each line (pyrolysis machine and waste oil distillation machine) , professional laboratory improving technology and demo plant which could show customers running machine. And rich experienced engineers guarantee installation of our equipment with good after -sale service.

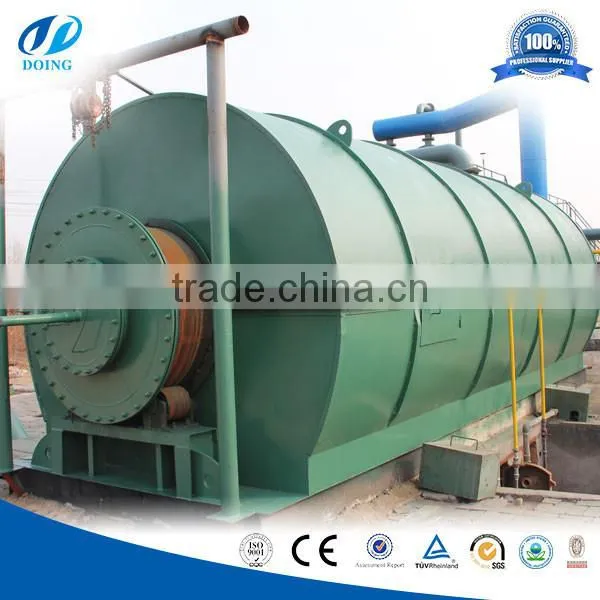

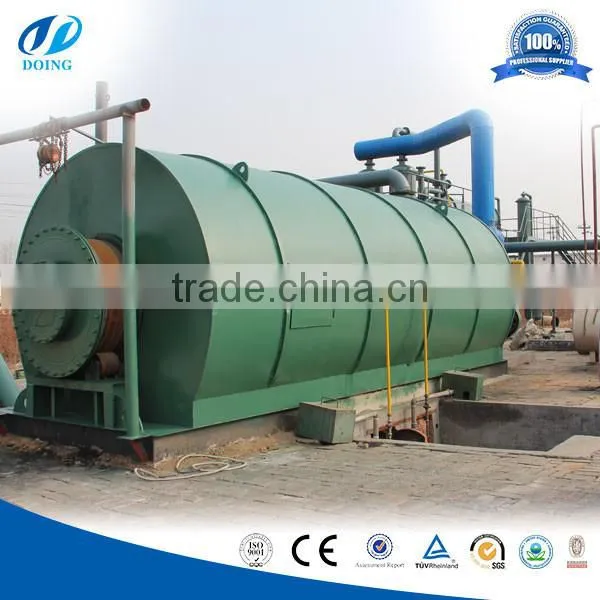

waste plastic to fuel oil machine can convert waste tires, waste plastic, waste rubber to fuel oil, carbon, steel wire. Waste tire oil average rate is 45%-52%, plastic is 75%-95% for PP,PE,ABS etc.

waste oil to diesel plant can process waste

engine oil, motor oil, black oil, tire oil,

plastic oil to clean diesel. This kind of diesel can

be used to tractors, trucks, diesel oil generator, power

generator etc.Oil recovery average rate: 75%-90%.

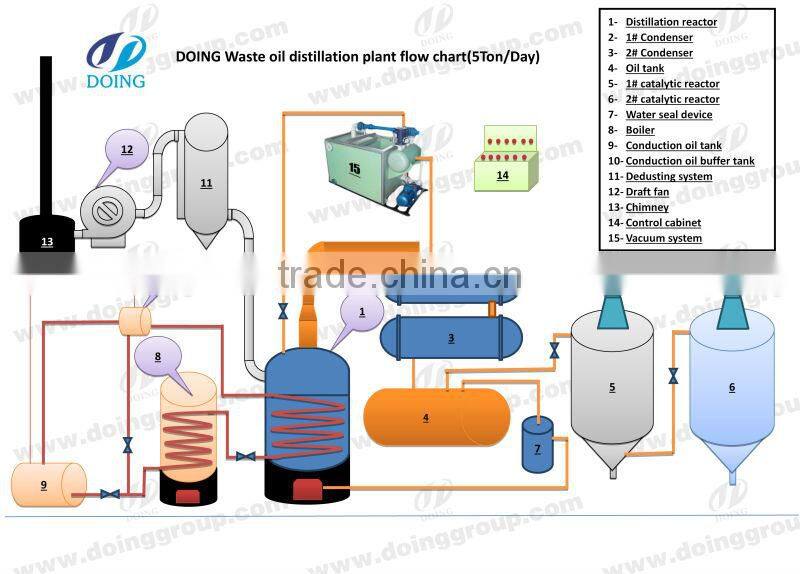

1. Firstly, put the raw material(tire oil, plastic oil, waste engine oil or other waste oils)  into the first reactor by oil pump.
2. Secondly, heating the oil by conduct oil and make the liquid oil in gas form.

3. Then cool the oil gas.

4. Next, put the cooling oil into the second reactor and mix with chemicals under the certain temperature situation.
5. Put the mixed oil from the second reactor to the third reactor and mix with another chemical, and subsites.
6. Lastly,get the diesel.
7. When the oil from the second reactor to the third, the raw material could put into the second reactor and process the next

8. batch. The machine is continuous.

1. The waste oil to diesel plant is produced by our factory only,which cost our 2 years’ time to design
2.  and test. You can not find any machine like ours’.
3. waste oil to diesel plant  can be used to process waste plastic oil, waste tires oil, waste engineer oil,

4. waste used oil to diesel.
5. There is indirect heating, that means it uses boiler to heating, which makes no pollutions and greatly

6. increase the service life of machine.
7. Fast processing time. Using conduct oil and coiler to heating the fuel oil, well-distributed and fast.
8. Good quality diesel. The diesel could be used in the tractor,truck, engines, motors etc. directly.


Cooling System of  Pyrolysis machine and oil refine/distillation to Diesel or naphtha :

1. Inside of horizontal condenser have 61 smaller
2.  pipes, the diameter of which is 48mm.

3. Cooling area of each

4. condenser can reach 50 square meters.
5. the whole cooling areas will be 100 squres meters.

6. So it can guarantee oil gas maximumly

7. cooling down to guarantee oil output.
8. Devided into 3 parts easy to insall and easy for clearance.

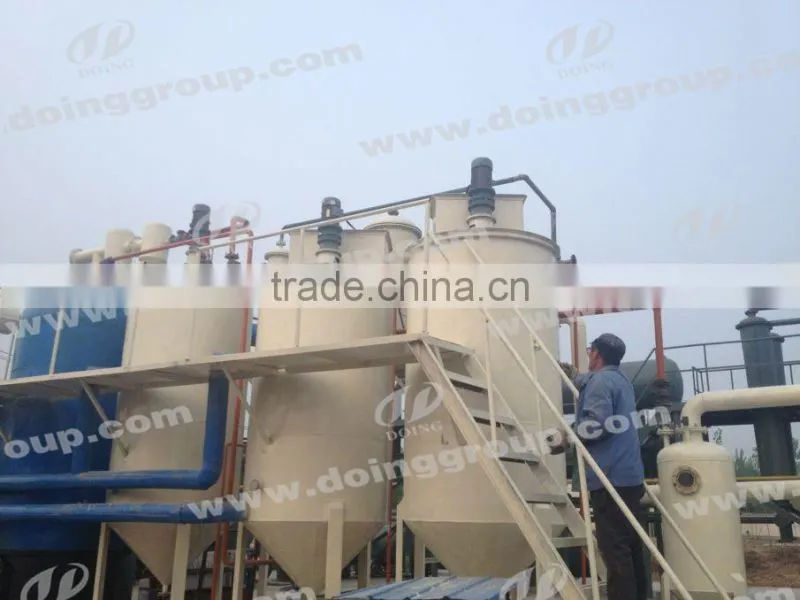

The vertical reactor of  Pyrolysis machine and oil refine/distillation to Diesel or naphtha :

 There are two reactors in the system and they are vertical

reactors. The advantage of this type

reactor is that it is very easy to clean. Before 2013, we also

produced the old design distillation machine and it looks like

the pyrolysis machine which using a big

 horizontal reactor. This design is cheap. But it is difficult

to clean when finish one batch. As our customers say, they

have to let one person into the reactor and

 to clean the slag leaves in the reactor. But you know,

the slag is thick black oil, it is very difficult to clean when it cold

 down. It spends hours to clean. There is

no choice, because it is unsafe to clean the reactor

when the temperature is high. But now, it will be no problem.

The slag could be easy to clean and it will be

down through the bottom of the vertical reactors.

  The heating type of Pyrolysis machine and oil refine/distillation to Diesel or naphtha :

      Using conduct oil to heat the whole system. The conduct

 oil goes through the coil pipes inside

 the reactor and make the heating uniformly.

The most important is that the indirect heating makes no

 pollutions and increase the service life

of distillation machine.

More information about   Pyrolysis machine and oil refine/distillation to Diesel or naphtha ,please don't hesitate to  contact us! Welcome to visit our factory!
