Xinxiang DOING GROUP are specialized in manufacturing base oil recovery plant , pyrolysis plant, plastic to oil plant and oil distillation machine, oil refining machines, tire oil / plastic oil / engine oil / motor oil / ship oil refining plants. We have two workshops producing each line (pyrolysis machine and waste oil distillation machine) , professional laboratory improving technology and demo plant which could show customers running machine. And rich experienced engineers guarantee installation of our equipment with good after -sale service.

Waste Oil To Base Oil Refining Plant  can convert waste tires, waste plastic, waste rubber to fuel oil, carbon, steel wire. Waste tire oil average rate is 45%-52%, plastic is 75%-95% for PP,PE,ABS etc.

Oil distillation machine can process waste engine oil, motor oil, black oil, tire oil, plastic oil to clean diesel. This kind of diesel can be used to tractors, trucks, diesel oil generator, power generator etc. Oil recovery average rate: 75%-90%.

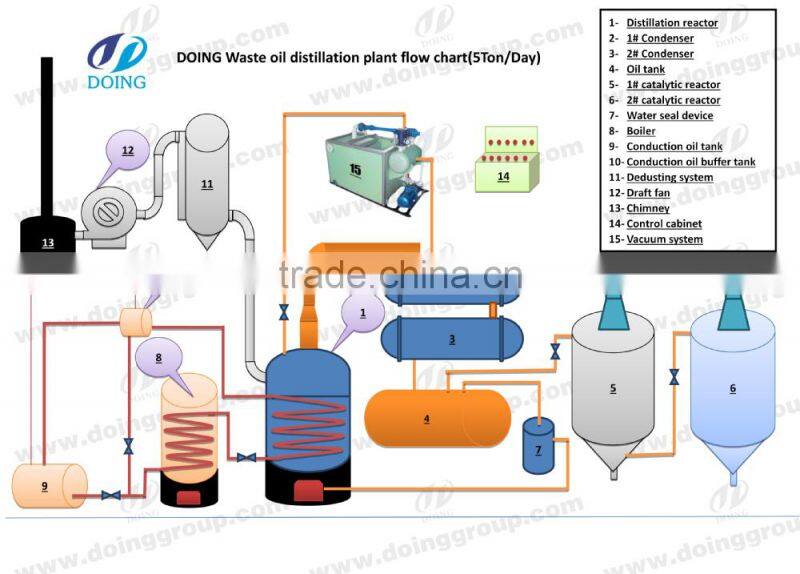

1. Firstly, remove the water and mechanical impurities in the raw material

2. Secondly, remove the water , gaslion and diesel by film evaporator

3. Remove the heavy components, such as pitch, by Short-range molecular distiller
4. Mix the chemical solvent with the oil
5. Recycle the excess solvent
6. Remove the color

1. Auto-feeder - To shorten feeding time; feed more raw material; save workers,save time,save energy.
2. Reactor - Q245R/Q345R material , pyrolysis for waste tire / waste plastic / waste rubber.
3. Buffer chamber - To reduce oil gas speed;  improve oil quality.
4. Oil-water separator - Avoid oil gas reback to reactor, ensure running safety.
5. Cooling system (Vertical condensers and horizontal condensers) -100 squre meter better condensing effect to get more.
6. Oil tanks -  Collect tire/plastic oil.
7. Anti-back fire device - First to recycle tail gas to furnace as fuel; second water closing for machine running safety.
8. Negative pressure device -  Guarantee working  under normal pressure safety; shorten pyrolysis time; environment protection.
9. Dust removal system - ensure the smoke reach international emission standard.
10. Bad mell removal system - Remove bad mell,keep a well environmental working place, to ensure reach international emission standard.
11. Carbon black slagging device -  Slagging carbon black automatically,  environmental protection; save time and workers.

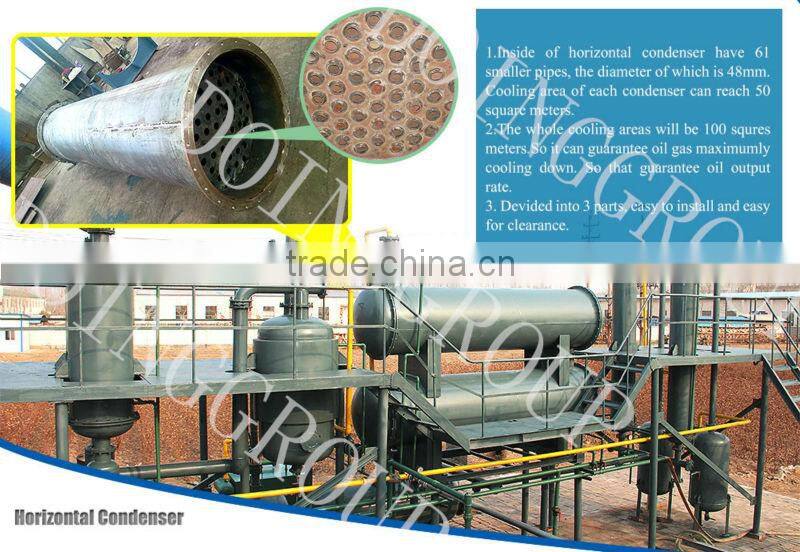

Cooling System:

1. Inside of horizontal condenser have 61 smaller pipes, the diameter of which is 48mm. Cooling area of each condenser can reach 50 square meters.
2. the whole cooling areas will be 100 squres meters. So it can guarantee oil gas maximumly cooling down to guarantee oil output.
3. Devided into 3 parts easy to insall and easy for clearance.

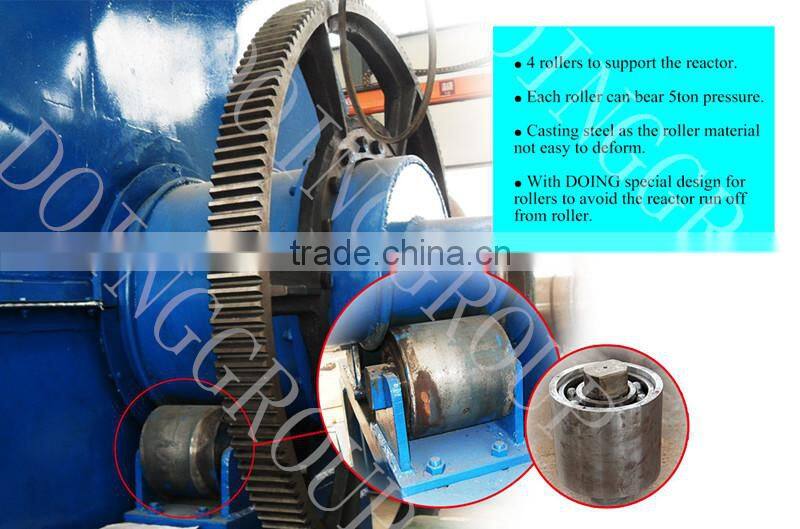

 Support Rollers:

1. 4 rollers to support the pyrolysis reactor.
2. Each roller can bear 5ton pressure.
3. Casting steel as the roller material not easy to deformed.
4. With DOING special design for rollers to avoid the reactor run off from roller. Keep machine safety running.
5. More safe, Long service life.

 Auto-Feeder:

1. 60 tons hydraulic pressure.
2. Suitable to all kinds of materials.
3. Take steel out of the reator.
4. Save time, save labour, save energy.

DY-1-10t  2600*6600

Thickness of Reactor

Cooling area of Condenser

More information about base oil recovery plant ,please don't hesitate to  contact us! Welcome to visit our factory!
