New Invention Waste Oil Refining Machine for Waste or Crude Heavy Oil to Diesel

Xinxiang Doing Renewable Energy Equipment Co., Ltd.
New Invention Waste Oil Refining Machine for Waste or Crude Heavy Oil to Diesel thumbnail-1
New Invention Waste Oil Refining Machine for Waste or Crude Heavy Oil to Diesel photo-1
US$ 50,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tire Machine
Tire Machine Type:
Tire Recycling Machine
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao orTianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tire Machine
Tire Machine Type Tire Recycling Machine
Place of Origin Henan, China
Brand Name DOING
Model Number DY-1-6
Voltage 220V-440V
Power(W) 17-22kw
Dimension(L*W*H) 9.2*3.14*3.17
Weight 25-45tons
Certification ISO9001&CE&SGS
Warranty 3 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.recycle crude or waste oil to diesel
2.strict quality control
3.high diesel rate 85-90%
4.high efficiency
5.CE ISO SGS

Company Information
   New invention waste oil refining machine for waste or crude heavy oil to diesel

What is waste oil refining mavhine?

Waste oil refining machine is for refining waste oil, waste engine oil, motor oil, black oil to diesel by distillation.




DOING GROUP are specialized in manufacturing Waste oil refining machine , pyrolysis plant , plastic to oil plant and oil distillation machine, oil refining machines, tire oil / plastic oil / engine oil / motor oil / ship oil refining plants. We have two workshops producing each line (pyrolysis machine and waste oil distillation machine) , professional laboratory improving technology and demo plant which could show customers running machine. And rich experienced engineers guarantee installation of our equipment with good after -sale service.

New invention waste oil refining machine for waste or crude heavy oil to diesel


Product Description
Tyre recycling machine and Waste oil refining machine

New invention waste oil refining machine for waste or crude heavy oil to diesel



Tyre recycling machine can convert waste tires, waste plastic, waste rubber to fuel oil, carbon, steel wire. Waste tire oil average rate is 45%-52%, plastic is 75%-95% for PP,PE,ABS etc.

New invention waste oil refining machine for waste or crude heavy oil to diesel

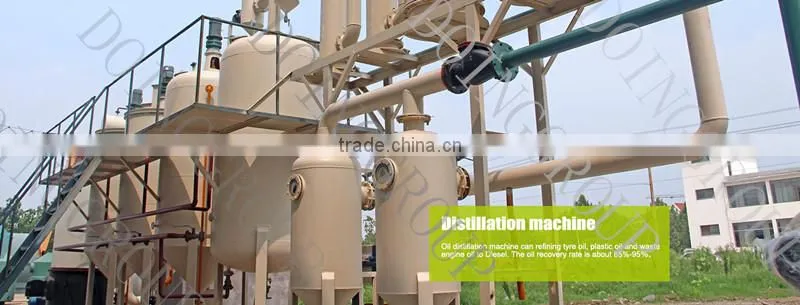

Waste oil refining machine  can process waste engine oil, motor oil, black oil, tire oil, plastic oil to clean diesel. This kind of diesel can be used to tractors, trucks, diesel oil generator, power generator etc. Oil recovery average rate: 75%-90%.

Tyre recycling machine working pinciple description briefly
  1. Firstly, the raw material was put into furnace with auto feeder,thenseal the feed inlet system.
  2. Secondly, burned the fuel material (coal, or wood, or natural gas, oil ) in the combustion system .The reactor will slowly heat, when the temperature reach around 150 degree Celsius, it will produce oil gas .
  3. Oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure ,which will be designed to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much.
  4. After finished oil produce ,the temperature of reactor will be down ,in same time ,carbon black will be discharged automatically.
  5. Lastly, when the temperature fall to 100 degree Celsius, worker could opened the door of reactor to discharge of steel wire .
  6. Then can start to another batch working.
New invention waste oil refining machine for waste or crude heavy oil to diesel

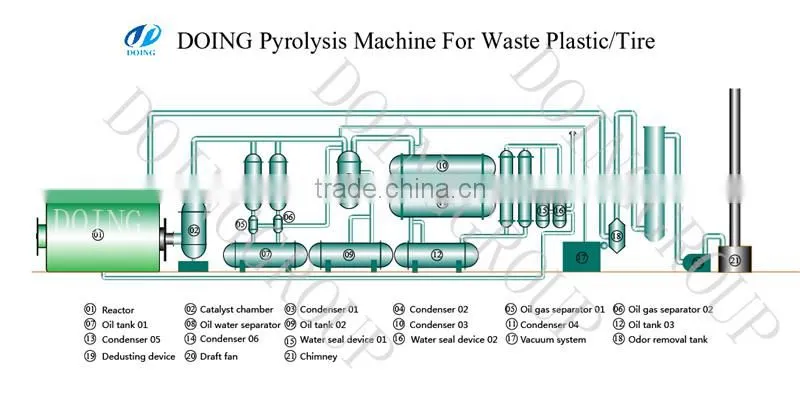

Tyre recycling machine Main Parts
  1. Auto-feeder - To shorten feeding time; feed more raw material; save workers,save time,save energy.
  2. Reactor - Q245R/Q345R material , pyrolysis for waste tire / waste plastic / waste rubber.
  3. Buffer chamber - To reduce oil gas speed;  improve oil quality.
  4. Oil-water separator - Avoid oil gas reback to reactor, ensure running safety.
  5. Cooling system (Vertical condensers and horizontal condensers) -100 squre meter better condensing effect to get more.
  6. Oil tanks -  Collect tire/plastic oil.
  7. Anti-back fire device - First to recycle tail gas to furnace as fuel; second water closing for machine running safety.
  8. Negative pressure device -  Guarantee working  under normal pressure safety; shorten pyrolysis time; environment protection.
  9. Dust removal system - ensure the smoke reach international emission standard.
  10. Bad mell removal system - Remove bad mell,keep a well environmental working place, to ensure reach international emission standard.
  11. Carbon black slagging device -  Slagging carbon black automatically,  environmental protection; save time and workers.
Some details of tyre recycling machine
 New invention waste oil refining machine for waste or crude heavy oil to diesel

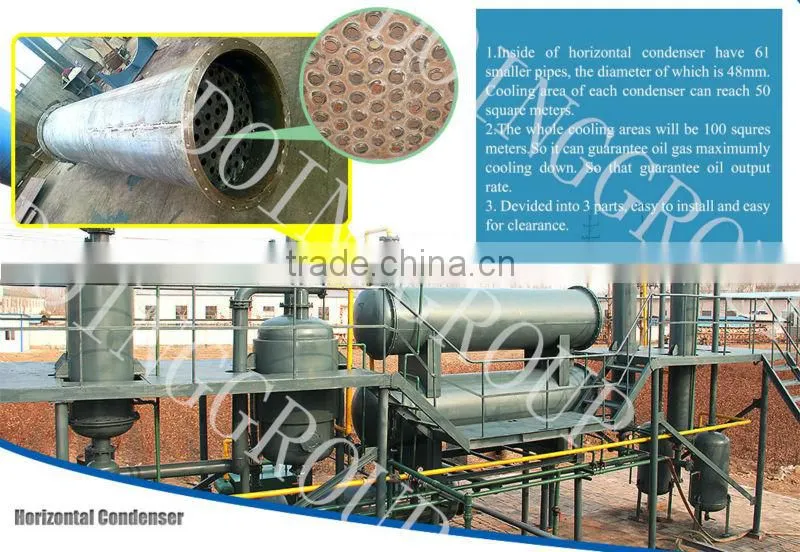

Cooling System:



  1. Inside of horizontal condenser have 61 smaller pipes, the diameter of which is 48mm. Cooling area of each condenser can reach 50 square meters.
  2. the whole cooling areas will be 100 squres meters. So it can guarantee oil gas maximumly cooling down to guarantee oil output.
  3. Devided into 3 parts easy to insall and easy for clearance.
 New invention waste oil refining machine for waste or crude heavy oil to diesel

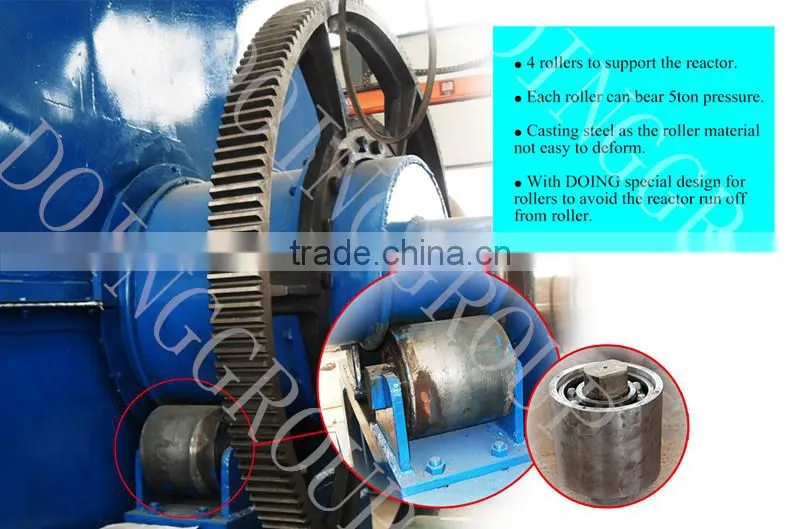

 Support Rollers:



  1. 4 rollers to support the pyrolysis reactor.
  2. Each roller can bear 5ton pressure.
  3. Casting steel as the roller material not easy to deformed.
  4. With DOING special design for rollers to avoid the reactor run off from roller. Keep machine safety running.
  5. More safe, Long service life.



 New invention waste oil refining machine for waste or crude heavy oil to diesel

 Auto-Feeder:



  1. 60 tons hydraulic pressure.
  2. Suitable to all kinds of materials.
  3. Take steel out of the reator.
  4. Save time, save labour, save energy.

Technical parameter of  tyre recycling machine

  Brand DOING
Model(D*L) mmDY-1-6t  2200*6000
DY-1-8t   2200*6600
DY-1-10t  2600*6600
Thickness of Reactor 16mm/18mm
Total power 19kw
Mode of cooling
water cooling
Cooling area of Condenser 100 square meters
Slagging Way Automaticaly
Total weight 20t-35t
Machine Space needed 350m2-500m2
Labors need 2 workers
Customer case
New invention waste oil refining machine for waste or crude heavy oil to diesel

Packaging & Shipping
Tyre recycling machine is in Qingdao Port ( one 40H rubber pyrolysis plant Q & one 40FR)
New invention waste oil refining machine for waste or crude heavy oil to diesel

Our Services

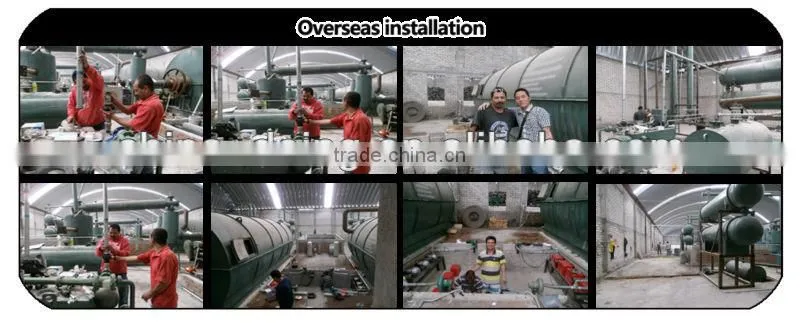

Our Engineer are installing  tyre recycling machine in different countries which are been installing
New invention waste oil refining machine for waste or crude heavy oil to diesel

More information about this machine ,please don't hesitate to  contact us! Welcome to visit our factory!
