Specifications
1. CE, ISO, SGS2. Good quality and no pollution
3. Warranty:3 year
4. 48-55% oil
horizontal rotation tire oil refiningmachine with X-ray test 100% Safety
Our tire oil refining machine can pyrolysis waste tires, waste rubber and waste plastic, processing fuel oil, crude carbon black and steel wires without pollution.

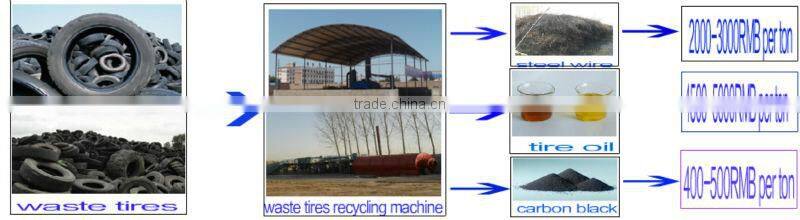

1.Products & Applications of tire oil refining machine
Through the pyrolysis tyres, plastic and rubber, the main products: fuel oil, combustible gas, crude carbon black and steels, which are widely used in hotels, restaurants, bathing centers, power engines, chemical sector and so on..
2. Equipment features of tire oil refining machine
No special requirements for raw materials
Operate under atmospheric pressure
Automatic decompression
Automatic sludge discharge
3.Environmental protection of tire oil refining machine
a> waste-gas : during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.
b> Waste-water: there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis
c> Bad smell: there will be some chemical substances feed into the catalysis tower and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.
d> Emission controller: there is emission controller in the set of plant, it won’t cause dirty dust in the process of pyrolysis
4.Technical parameter of tire oil refining machine
Technical parameter of tire oil refining machine | ||||
|
Items |
Contents |
||
1 |
Equipment type |
DY-1-6 |
DY-1-8 |
DY-1-10 |
2 |
Raw material |
tires/Plastic |
tires/Plastic |
tires/Plastic |
3 |
Structural form |
Horizontal rotation |
Horizontal rotation |
Horizontal rotation |
4 |
24-hour Capacity |
6 ton |
8 ton |
10 ton |
5 |
Oil yield |
2.7ton |
3.6 ton |
4.5 ton |
6 |
Operating pressure |
Normal |
Normal |
Normal |
7 |
Material of Reactor |
Q245R |
Q245R |
Q245R |
8 |
Thickness of Reactor |
14mm |
14mm |
16mm |
9 |
Rotate speed of Reactor |
0.4turn/minute |
0.4turn/minute |
0.4turn/minute |
10 |
Total power |
19.5KW |
19.5KW |
19.5KW |
11 |
Mode of cooling |
Water cooling |
Water cooling |
Water cooling |
12 |
Cooling area of condenser |
40sqm |
40sqm |
65sqm |
13 |
Kind of transmission |
Internal gear drive |
Internal gear drive |
Internal gear drive |
14 |
Noise dB(A) |
≤85 |
≤85 |
≤85 |
15 |
Size of Reactor(D×L) |
2200×6000 |
2200×6600 |
2600×6600 |
16 |
Working form |
Intermittent operation |
Intermittent operation |
Intermittent operation |
17 |
Delivery time |
20days |
20days |
20days |
18 |
Weight |
25T |
30T |
35T |
If you interested in tire oil refining machine , please call me and I will reply you at the first time.
