Home > Products > waste tire and plastic recycling machine > the 5th generation recapped tires pyrolysis plant

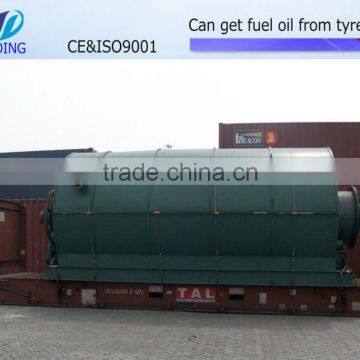

the 5th generation recapped tires pyrolysis plant
- 8 Set / Sets per Month
- Qingdao
Product Details
Type: | Tire Machine | Tire Machine Type: | Tire Recycling Machine | Place of Origin: | Henan, China |
Brand Name: | DOING | Model Number: | DY-1-10 |
Product Description
Specifications
1)we are used tire recycling machinery company2)power: 19.5kw
3)products:52%oil,30%carbon black,12% steel
4)environmental
nological process:
Firstly , the raw material is put into furnace,then seal the feed inlet system.
secondly,burned the fuel material(coal,or wood,or natural gas ,oil ) in the combustion system .
the reactor will slowly heat ,when the temperature reach around 250 degree celsius,it will produce oil gas .
oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil.
the gas which can not be liquid under normal pressure ,which will be desinged to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much .
after finished oil produce ,the temperation of reacor will be down ,in same time ,carbon black will be discharged automatically.
Lastly,when the temperature fall to 100 degree celsius,worker could opened the door of reactor to discharge of steel wire .
then can start to another batch working.
2.The usage of final production-----FUEL OIL
fuel oil from waste tyre are used in below industries
A.power plant factoryB.glass fa ctorC.cement factoryD.ceramic fatoryE.aluminum factoryF.boiler factory
G.central heating factoryH.painting factory
The usage of final production-----CARBON BLACK
carbon black from waste tyre are used in below industries
A.electric cable nveyor banC.hose and doormatD.black nylon bagE.rubber additive
F.automatic spare partsG.heat isolationH.black colorant in rubber materialsI.plastic pipes
J.industries rubber productsK.fire fighting
steel wire from waste tyre can be re-sale to steel factory
3.Profit calculation
Take waste tire oil refining equipment processing 10 tons for example
No. | Item | Cost of Per Batch |
1 | 10 tons of waste tires | 10T×1500RMB/T=15,000RMB |
2 | 0.4 tons of coal | 0.4T×800RMB/T=320RMB |
3 | Water and electricity | 200×1.00RMB=200RMB |
4 | Workers | 4×100RMB=400RMB |
5 | Total Cost | 15,920RMB |
NO. | Item | Income |
1 | Crude Oil | 10T×45%×4,500RMB=20,250RMB |
2 | Carbon Black | 10T×35%×520RMB=1,820RMB |
3 | Steel Wire | 10T×13%×2200RMB=2,860RMB |
4 | Gross Profit | 24,930RMB |
5 | Daily Net Profit | 24,930RMB-15,920RMB=9,010RMB |
6 | Monthly Net Profit | 9,010RMB×25=225,250RMB |
7 | Yearly Net Profit | 225,250RMB×10=2,252,500RMB |
