Medium cable copper wire continuous drawing machine and annealer
Copper Wire Drawing Machine is a kind of machinery used for recycling waste & scrap copper wire and cables, whose diameter should be below 25mm,
such as Auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc. The recycling rate can reach 99.9%,
can get copper granule and PVC plastic in the end automatically.
Features of Copper Wire Drawing Machine
1. The material of the waste wire can be telephone wire, household electric wire, automotive wire and cables, diameter should be 0.5-25 mm.
2. Just needing 1-2 workers to operate, labour-saving, small land occupancy and investment

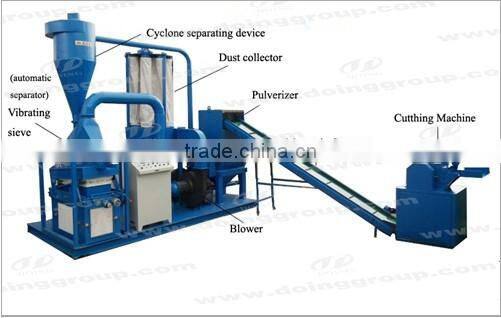

3. Combines many processions into one, the whole process is controlled by PLC, including crushing, conveying, dust collecting, separating process. It can recycle both the copper granule and PVC plastic.
4. Can separate the copper granule from the plastic by the winding separation and the vibrating separation at last. The copper purity can be 99.9%
5. No need water during the whole process, no dust, no environmental pollution.
Copper Wire Drawing Machine Process:
1. Starting of Copper Wire Drawing Machine :
Please make sure all the machines are in good condition. Before getting started, please keep the machine unloaded running for 5-10 minutes.
2. Feed inlet of Copper Wire Drawing Machine
Please clear up iron from the mixed cables, avoiding damage to crusher blade.
3. Fine crushing of Copper Wire Drawing Machine
If there is any abnormal noise, please stop and check the crusher. Change different size screen, if the copper granule is too fine or too much copper without separating from plastic
4. Vibrating separator of Copper Wire Drawing Machine
After curshed, the mixed material will be delivered to vibrating device. The copper fro vibrating separator is complete copper without plastic,
while the copper clad from the opposire discharging hole needs to be second crushed.
Technical Data of Copper Wire Drawing Machine
| Model | Voltage | Power | Capacity | Dimension | Weight |
| DYTM-400 | 380V | 22.45 kw | 150-200kg/H | 2700*1900*2300(mm) | 1200kg |
| DYTM-600 | 380V | 36 kw | 300-400kg/H | 3500*1900*2700(mm) | 3000kg |
| DYTM-800 | 380V | 75 kw | 500-600kg/H | 5500*4500*3300(mm) | 8000k |
FAQ
1. Are you manufacturer or trade compnay ?
We are the manufacturer, our have over 10 years experience in fertilizer machinery field.
2. Where is your factory ?
Our factory locate in the Xinxiang City .It take about 3 hours from Xinzheng national airport to factory ad our office is located in the Zhengzhou city.
3. How does your factory do regarding quality control ?
Quality is priority, since establishement, we keep strictly requirements about the quality with using X-Ray to test every section of the products, so we gain high praise from our customers ,all product have to pass strict inspection before they were sent out.
4. How about your after-service ?
We will provide the one year warranty , you can feel free to contact us , when you have any
questions about our machine.
5. How long does itl take you to delievery ?
A. In stock, within 15 days after received the advanced payment;
B. Out of stock, within 20 days after received the advanced payment.
Certificate:
Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office just need 30 minutes. We have finished demo machine in our factory waiting for your visiting.
