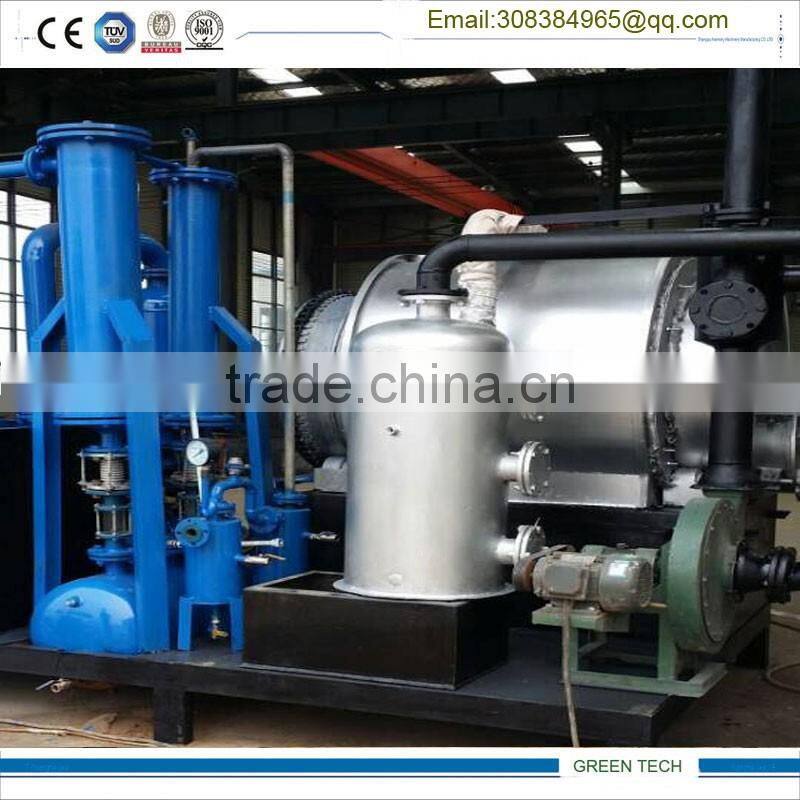

Skid type tyre to diesel recycling machine 3 Ton per batch
1.Technical parameters
NO. | Name | Parameter |
1 | The raw materials: | waste tyres,/rubber/plastic/oil sludge |
2 | Out put | Diesel oil |
3 | Daily capacity: | 2-3 ton /day |
4 | The size of reactor (D*L) | 1800*4000mm |
5 | Reactor material | Q345R |
6 | Average oil productivity: | 30%-50%, (for tire ) |
7 | Average carbon productivity: | 30%-35% (for tire) |
8 | Average steel productivity: | 10%-15% (for tire) |
9 | Average waste-gas productivity: | 5-8% |
10 | pyrolysis time | 6hours |
11 | Discharge time | 1 hour |
12. | Feeding time | 1 hour |
13 | Cooling time | 2 hours |
14 | Working pressure | Normal /slightly negative |
15 | Power | 11 kw |
16 | Fuel | Coal. Wood, gas etc |
17 | Working area | 300 square meters |
18 | Total weight | 26 000kgs |
19 | Reactor rotate speed | 0.25-0.4/min |
20. | Noise | No more than 85 db |
21. | Type | NEW TECH Pollution free |
2.Plant features:
1. ) Pyrolysis and distillation is integrated, Can pyrolysis waste tyre also can refine waste oil.
2. )saving working ground area and saving working time and saving fuel.
3.) More easy to move and easy to use.
3.Payment term and conditions:
1. ) Payment term: 30% TT advance payment 70%TT payment before plant shifting .
2. ) Delivery time: for batch type plant, loading plant within 20days after getting your advance payment,
3. ) About installation: we will send technician for guiding installation and test machine and training your workers for free. The Installation period is one months, buyers offer round tickets and accommodation for our technician.
4. ) Warranty: The whole set plant warranty period is one year (easy-ware parts except). The reactor warranty is 3 years. We will not be responsible for problems caused by personal wrong operation
4.Diesel oil parameters:
Project | diesel | standard |
Oxidation stability | 2.2 | ≤2.5 mg/100ml |
Sulfur content | 0.3 | M/m≤0.2 |
10% steamed residual carbon residue | 0.33 | M/m≤0.3 |
Ash content (10%) | 0.16 | %m/m≤0.01 |
Waste content (10%) | traces | / |
Mechanical impurities | / | / |
Density (g/ml) | 0.85 | 0.83-0.87 |
Solidifying point ( ℃) | -10 | 0 |
Flash point (closed ) ( ℃) | 45 | 55 |
Movement viscosity | 3.5 | (20 ℃) mm2/s 3.0-8.0 |
Combustion value(Kcal) | 9500 | 8500 |
colority | 1.2 | ≤3.5 |
cetane number | 40 | 45 |
Acidity | / | MGkoh/100ml≤7 |

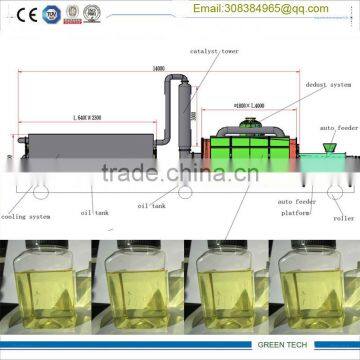

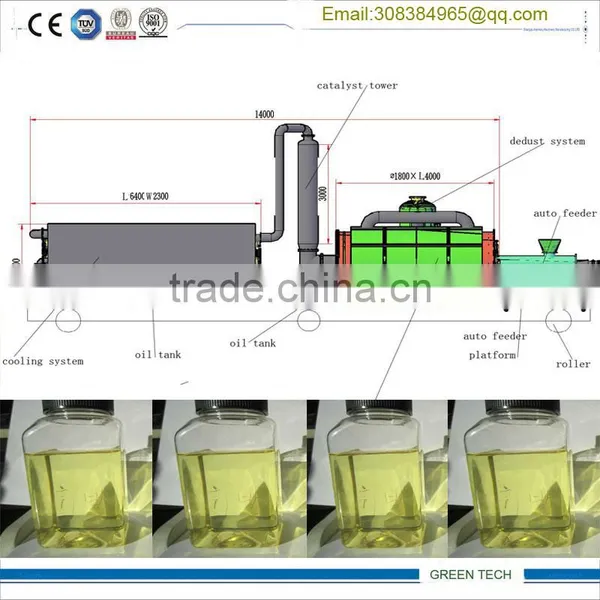

5.Major parts:
6.About us
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation. shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
Following is our major products:
Type | 24hour capacity |
Batch type pyrolysis plant | 5ton,8ton,10ton 12ton,15ton |
Semi-continuous pyrolysis plant | 10ton,15ton,20ton |
Fully continous plant | 20ton ,30ton,40-60ton |
Tunnel reactor pyrolsyis plant | 15Ton 20Ton |
Lengthen Reacor pyrolysis plant | 15Ton ,20ton |
Other special customerized plant | As customer requirement |
Continuous oil distillation plant | 5ton,10ton,15ton.30ton |
