HOT-SALE Automatic 10 Tons Per Day Scrap Plastic Recycling Machine Waste Tire Pyrolysis Plant

Specifications

waste tire pyrolysis plant
1. 100% safety
2. Energy saving
3. Non-pollution
4. CE&ISO certified

Most Profitable HOT-SALE Automatic 10 Tons Per Day Scrap Plastic Recycling Machine Waste Tire Pyrolysis Plant







A. The machine capacity and model.



NO.	Model	Reactor size(mm)	Motor power(KW)	Capacity  (ton/batch)	Note
1	XHZT-2260	2200*6000	13	5-6	2 days 3 batches
2	XHZT-2260	2200*6600
3	XHZT-2460	2400*6000	15	6-7	2 days 3 batches
4	XHZT-2460	2400*6600
5	XHZT-2660	2600*6000	17	8-9	1 day 1 batch
6	XHZT-2660	2600*6600
7	XHZT-2880	2800*6000		10	1 day 1 batch
8	XHZT-2880	2800*6600		12	1 day 1 batch





 B. The raw material that pyrolysis plant can use



Tyre, plastic(PE,PP is better), rubber,  oil sludge(oil tank sediment etc...).

The machine is same, just processing have a little different. Our engineer will training you as what raw material you use.











a. The complete set of unit produces no smoke and smell with favorable effects of



environmental protection.



b. The pressure release device operates through water circulation, which greatly improves the security of the system.



c. The release of pressure during the production dramatically increases the output



within certain time and meanwhile improves the quality of oil.



d. The heating system adopts hot air heating technology, which improves the safety



performance of production and heating efficiency.



e. High efficiency fuel gas heating system. When the heated gas reaches 150 during



refining, a large amount of gas will be generated: through methane to butane, which



cannot be liquefied under normal temperature. A large quantity of energy will be generated after these gases fully burn within a specially designed gas burner. Then energy will be saved greatly.

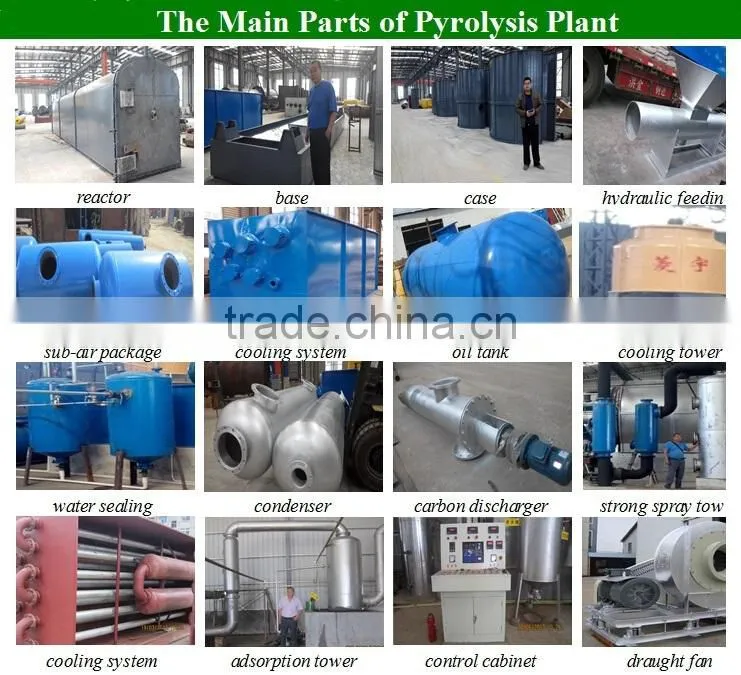

Brief Description of the Process



 Firstly, put the raw material into furnace, then seal the feed inlet system. Secondly, burn the fuel material (coal, or wood, or natural gas, oil ) in the combustion system, the reactor will slowly be heated ,when the temperature reaches around 80-100 degree  Celsius, It will produce oil gas, oil gas will be processed by our technology ,then goes to the cooling system-condensers  to be cooled down  then go to the first heavy oil tank. the other oil gas which can not be liquefied under normal pressure and normal temperature ,can be recycled going into the furnace instead of the fuel materials to heat the reactor, which can save energy very much . After finishing oil produce ,the temperature of reactor will be down, at the same time ,carbon black will be discharged automatically. Lastly, when the temperature falls to 100 degree Celsius, workers could open the door of reactor to discharge of steel wire. Then you can start another batch working.















Oil Yield of Different Raw Material





PE	50%-75%
PP	50%-75%
PS	50%-75%
ABS	40%
Leftovers of paper	Wet 15-20%, dry 60%
House garbage	35-50%
Plastic cable	80%
Plastic bag	50%
Submarine cable	75%
Rubber cable	35%
Sole	30%
PVC	Not suitable
PET	Not suitable









Pre-sales Service:



The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit RESEM working machines or complete plant in the site.



After-sales Service:



Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the customers factory to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
