waste rubber recycling processing machinery with 6 MT/D

Specifications

waste rubber processing machinery
Professional manufacturer
Most experienced and knowledgeable engineers
30% energy saving

Technical parameter sof pyrolysis machine



Model   (diameter*length)(mm)	2200*6000  5 tons
	2200*6600
	2600*6000
	2600*6600  10 tons
	2800*6000
	2800*6600
Boiler plate	Q345R
Thickness	16/18mm
Condensers	Vertical condenser
		Horizontal condenser
Product series	4th generation
		5th generation
Slagging system	Screw slagging carbon black
Total weight	25-42T
Total power	20kw
Space needed	150m2-400m2
Labor needed	4 workers



Work flow

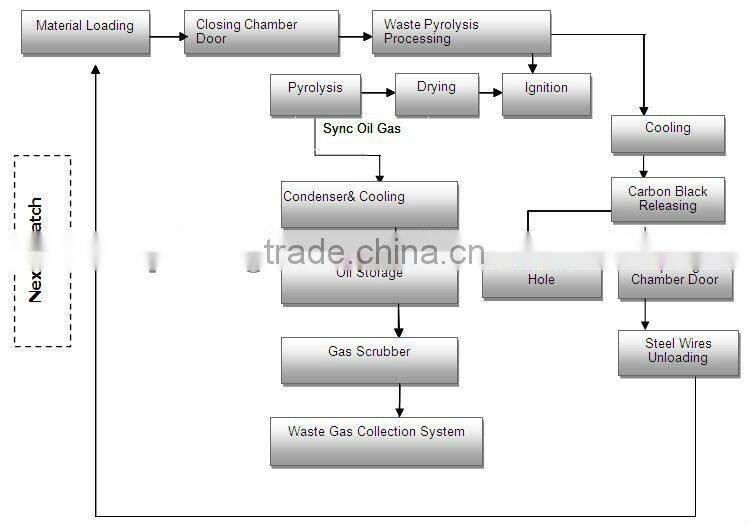

Put the waste tyres or plastic in to our machine, after catalyzing and heating the tyers are dissociated to gas steam.









Major parts



1. Pre-treatment device for raw materials



2. Rapid feeder



3. Integrated rotary cracking device



4. Automatic slaging system with characteristics of safety and environmental protection



5. Whirlwind dedusting device with oil steam



6. Rapid condensation system



7. Exhaust purification, recycle and combustion system



8. Heat source supply system



9. Environmental protection and exhaust system for heat source



10. Central electric control system



Items	Contents
Raw material	Waste tyre ,scrap plastic,waste rubber
Structure form	Horizontal
Model	2200-6000	2600-6000	2800-6000	2800-6600
Size of reactor	D2200*L6000mm	D2600*L6000mm	D2800*L6000mm	D2800*L6000mm
24-hour capacity	5T	8T	10T	12T
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil ,heavy oil.
Average out-put oil rate	50%
Material of reactor	Q245R/Q345R boiler plate
Thickness of reactor	16mm
Rotate speed of reactor	0.4-0.8 turn/minute
Mode of cooling	Water cooling
Power in total	4.0-8.0kw
LIfe	5-8 years



The technical parameters of tire oil





Item	Tire Oil
Density  g/cm3	0.90-0.92
Freezing Point oC	-10
flash point oC	50
Kinematic viscosity mPa.s	6
Combustion valuekJ/kg	10500





















 Working time



Style	Feeding time(hours)	processing time(hours)	cooling time (hours)	Slag outlet time(hours)
2200-5100	2	7	3	2
2200-6000	2	8	3	2
2600-6000	3	10	3	3
2800-6000	3	12	3	3
2800-6600	3	13-14	3	3







































Delivery & shipment





The Features of our plants:

A.Safe

The reactor take safety design, the whole system have safety device.

Safety valves ,pressure meter ,temperature meter and control cabinet a and alarming system.

B. High oil rate

We have two kind of cooling system, this improved cooling efficiency. Better cooling efficiency symbolize high-oil rate .

C. Reasonable and Simple design

We try to make complicate system simple based on safety and high-oil rate.

Our machine is easy to use.

The function of the final products

Fuel oil: Widely used as fuel oil in industries such as steel and iron factories, ceramics or chemical industries or hotels, restaurants etc. or used for generators to get electricity.

Carbon black: used for construction bricks with clay

                           also can be used as fuel

                           and can be deep process

Steel wires:     Sold or reprocessing

Combustible gas: Can be recycled and used during process as fuel.
