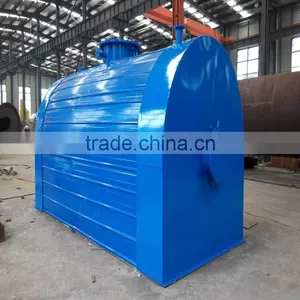

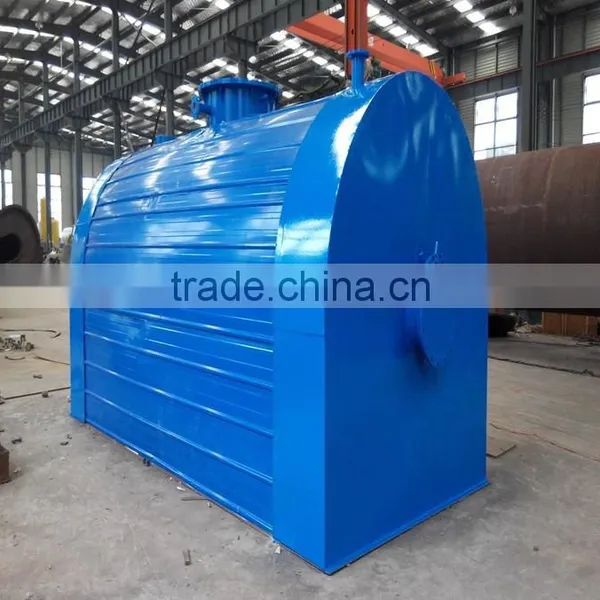

Green Energy Waste Plastic Pyrolysis Machine With Top Quality

Green Energy Waste Plastic Pyrolysis Machine With Top Quality thumbnail-1
Green Energy Waste Plastic Pyrolysis Machine With Top Quality photo-1
US$ 40,000 - 1,200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, USED OIL DISITLLATION
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Shangqiu Harmony Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, USED OIL DISITLLATION
Place of Origin Henan, China
Brand Name XHZT
Model Number XHZT-18*30
Voltage 380V
Power(W) 20KW
Dimension(L*W*H) 18*20*14
Weight 25TONS
Certification CE&ISO
Warranty 1YEARS
After-sales Service Provided Engineers available to service machinery overseas

Specifications

waste plastic pyrolysis machine
1- no pollution and safety 100%
2- high oil yield
3- energy saving
4-high quality



Whole processing time of different models



6 tons whole processing time

2 hours loading time(one time loading), 3 hours preheating time(plastic become oil gas time),14 hours oil come out, 1 hours discharging carbon black



8 tons whole processing time

2.5 hours loading time, 3 hours preheating time,14.5-15 hours oil come out, 1 hours discharging



10 tons whole processing time

3 hours loading time, 3 hours preheating time,15-15.5 hours oil come out , 1 hours discharging

Products usage and different raw material oil rate

 Crude oil: Oil from this machine can be used as industrial fuel for burning.



Carbon black: First,Carbon black from this machine is crude. You can sell it to the brick

 factory as internal combustion or to the factory which need it as raw materials, such as shoe,

tire, cable and sealant companies. Second, could make further process, make carbon black

powder into carbon black briquette, use it for burning.





PE

95%

PP

90%

PS

90%

ABS

40%

Leftovers of paper

Wet 15-20%, dry 60%

House garbage

35-50%

Plastic cable

80%

Plastic bag

50%

Submarine cable

75%

Rubber cable

35%

Sole

30%

Big tires

45-50%

Small tires

35-40%

PVC

Not suitable

PET

Not suitable






Working plant factory

Green energy waste plastic pyrolysis machine with top quality

Environmental protection and safety devices

It will include four parts: water, slag, gas, noise

Water include two parts, cooling water and de-dusting chemical water.

Cooling water, just temperature higher, no pollution.

Slag, it is by-product, we can also called it carbon black. Above has

mentioned the usage, please check it.

Gas include two parts, exhaust gas and smoke dust. Exhaust gas is Methane,

Ethane...these kind of gas are every easy to burning, here we make a special

design could recycling it into fire furnace, heating the reactor. Smoke dust, it

is generated from burning coal / wood. Through de-dusting system, it could

meet the emission standard of national requirement.

Noise: under 75db.



Safety devices

Our machine is equiped with anti-clogging device, pressure gauges, alarming

system, safety valves, negative pressure device(vacuum device), oil-water

separator.



Usually our machine is working under normal or negative pressure. In case

of congestion, cause pressure, alarming system will ring, if no response from

workers, safety valve could release pressure automatically.



Negative pressure device could make sure our machine working under negative

 pressure, more safety.



Oil-water separator could avoid oil gas go back to reactor, cause explosion.

Certifications







 After-sell service

We will send one of our engineer to your factory, instruct you install and testing the machine, help you training your workers.

Warrenty will be one year.
