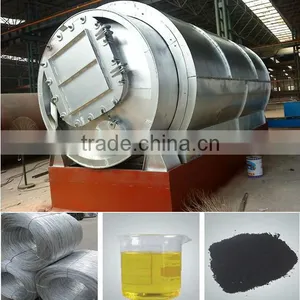

Help CenterEnvironmental Friendly New Design Waste Plastic and Tires Recycling Plant
Related Products
-
Environmental Friendly New Design Waste Plastic Recycling PlantUS$ 30,000 - 50,000MOQ: 1 Set -
More Than 8 Years Experience High TECH Scrap Plastic Pyrolysis PlantUS$ 30,000 - 46,000MOQ: 1 Set
-
Fully Automatic Green Energy Waste Plastic Pyrolysis Production LineUS$ 30,000 - 45,000MOQ: 1 Set
-
Environmental Friendly Waste Plastic Recycling System for SaleUS$ 30,000 - 45,000MOQ: 1 Set
-
Environmental Friendly Waste Plastic Recycling System With Top TechnologyUS$ 30,000 - 45,000MOQ: 1 Set
Specifications
waste plastic recycling plant1 Auto feeding&Discharging
2 Increase 5% oil yield&save 30% energy
3 Environmental friendly
| Introduction of waste tyre/plastic/rubber pyrolysis machine: |
Day by day, waste tire, waste plastic, waste rubber, waste oil cause serious environmental pollution. Most people have no idea about how to dispose of these house waste or industry waste. Burning, landfill, actually are not the right way to solve the problem. We have the honor to introduce you the green technology for waste recycling. Waste tire recycling machine, waste plastic recycling machine, also named as pyrolysis equipment. Waste engine oil recycling machine, oil residue recycling machine, also named as distillation equipment. After being processed, all the tire or plastic will be fully recycled, most percent are turned into fuel oil, the others are carbon black and fuel gas. It does not cause secondary pollution. Meanwhile at most area of the world, the cost of raw material is very low. Because actually they are waste things. People are willing to cooperate with you as waste management. After recycling these waste things are turned into treasure.
|
| Flow chart: |
|
| Working process: |
Firstly, put the raw material into furnace, then seal the feed inlet system.
Secondly, burn the fuel material(coal. wood, gas or oil)in the combustion system, the reactor will slowly heat, when the temperature reaches around the certain temperature, it will from solid into gas ,the oil gas will be produced by our technology, then go into the water-oil separator, and the heavy oil will be separated, and then go through the cooling system to be liquid oil, the gas which cannot be liquid will be recycled to the reactor for heating.
At the same time, the dust removal device will clean up the dust in the gas, then the gas through the Condenser being cooled into liquid, then the gas exhausted to the air is little, so it is no pollution and energy saving.
|
| Main parts: |
|
Technical parameter of waste plastic pyrolysis machine : |
Model (diameter*length)(mm) | 2200*6000 5tons |
| 2200*6600 | |
| 2600*6000 | |
| 2600*6600 10tons | |
| 2800*6000 | |
| 2800*6600 | |
| Boiler plate | Q345R |
| Thickness | 16mm |
| Condensers | Vertical condenser |
| Horizontal condenser | |
| Slagging system | Screw slagging carbon black |
| Total weight | 30-45Tons |
| Space needed | 180m2~400m2 |
| Labor needed | 4 workers |
| Our workshop: |
|

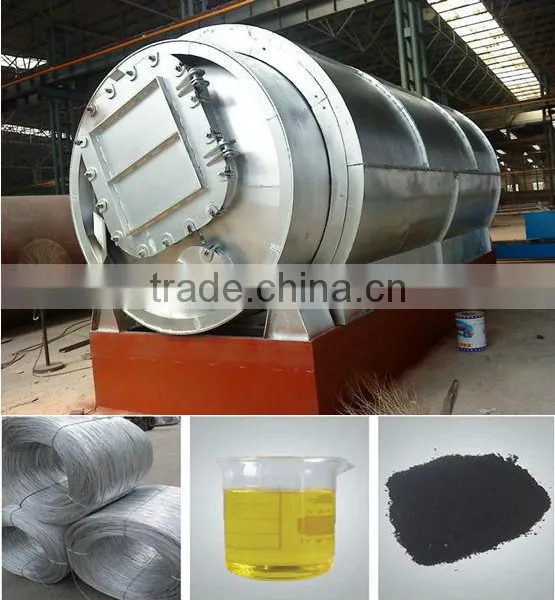

| The function of the final products: |
Fuel oil: Widely used as fuel oil in industries such as steel and iron factories, ceramics or chemical industries or hotels, restaurants etc. or used for generators to get electricity.
Carbon black: used for construction bricks with clay also can be used as fuel
Steel wires: Sold or reprocessing
Combustible gas: Can be recycled and used during process as fuel.
|
|
| We can deliver the machine in 15days after receiving deposit. |
Approx oil yield rate of different raw material: | |
PE | 50%-75% |
PP | 50%-75% |
PS | 50%-75% |
ABS | 40% |
Leftovers of paper | Wet 15-20%, dry 60% |
House garbage | 35-50% |
Plastic cable | 80% |
Plastic bag | 50% |
Submarine cable | 75% |
Rubber cable | 35% |
Sole | 30% |
PVC | Not suitable |
PET | Not suitable |
| Service: |
Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit RESEM working machines or complete plant in the site.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the customers factory to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also. |
Certificates: |
| |
| Our customers: |
|
