Environmental protection
a> waste-gas : during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.
b> Waste-water: there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis
c> Bad smell: there will be some chemical substances feed into the catalysis tower and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.
d> Emission controller: there is emission controller in the set of plant, it won’t cause dirty dust in the process of pyrolysis

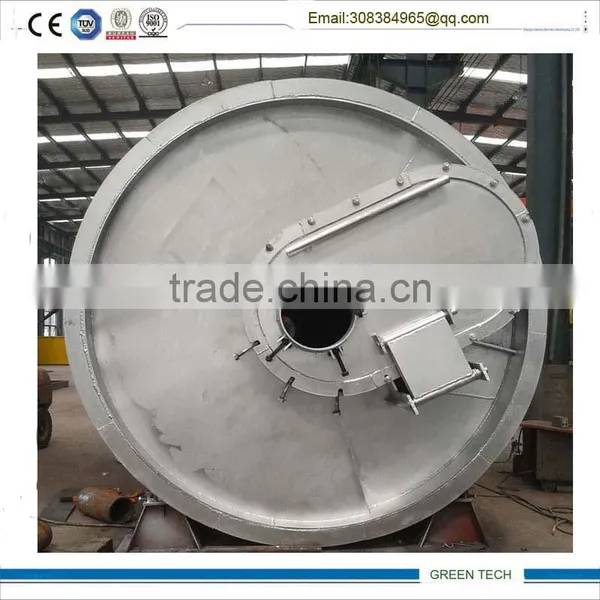

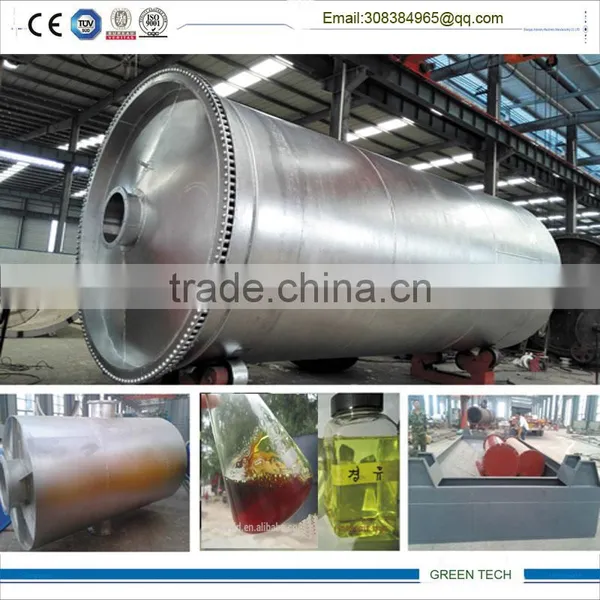

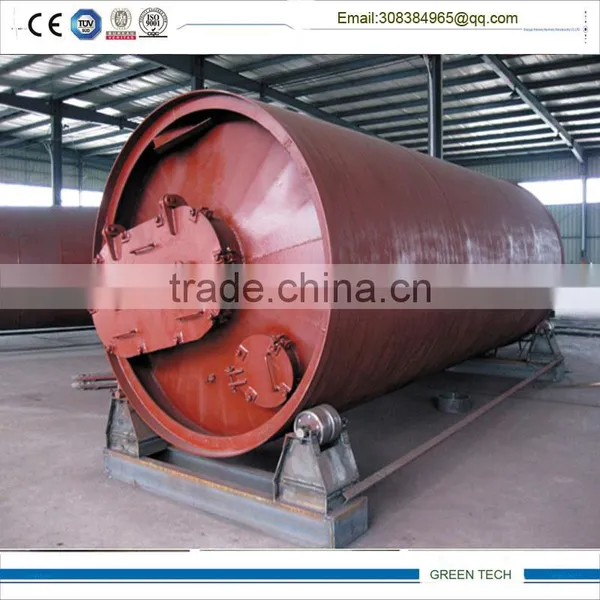

Long service life
1.Material: Q245R/345R special steel plate ,thickness 16 mm.
2.Welding: Automatic welding machine and experienced welder will guarantee the quality and life of the reactor.
Available Raw Materials and Oil Output
Item | Raw Materials | Oil Output |
Waste Tyres | Steel Tyres | 40%-45% |
Nylon Tyres | 40% | |
Bike Tyres | 35% | |
Waste Plastcis | Plastics bags (shopping) | 50% |
Weaves or handbags | 60% | |
Cable Skin | PE Cable Skin | 35% |
PVC Cable Skin | 25% | |
Pure Rubber Cable Skin | 35% | |
Telephone Line | 50% | |
Waste Paper Mixture from Paper Factory | Rough Material | 15% |
Washed Material | 20-25% | |
PE Material | 70% | |
Shoes Soles | Sports Shoes Soles | 25-33% |
Black Rubber Soles | 35% | |
Gum Rubber Soles | 45% | |
Others | Common Rubber Tubes | 30% |
Carpets | 35% | |
Aluminum Foil Paper | 30% | |
Car Glass Layering | 50% | |
PP Beverage Bottle | 50% |
Technical Parameters
1 | The raw materials: | waste tyres,/plastic, oil sludge |
2 | Daily capacity: | 10 ton/day |
3 | The size of reactor | 2800*6000mm 16mm thickness |
4 | Reactor material | Q345R |
5 | Average oil productivity: | 30%-80%, |
6 | Average carbon productivity: | 20%-35% |
7 | Plastic oil rate | 30%-80% |
8 | pyrolysis time | 6-8 hours |
9 | Discharge time | 1.5 hour |
10 | Feeding time | 3 hourS |
11 | Cooling time | 3 hours |
12. | Working pressure | Normal /slightly negative |
13 | Power | 18 kw |
14 | Fuel | Coal. Wood, gas etc |
15 | Working area | 1000 square meters |
16 | Total weight | 35 000kgs |
17 | Reactor rotate speed | 0.25-0.4/min |
18 | Noise | No less than 85DB |
19. | Certificate | Ce,.iso, |
20. | Carbon slag out | Automatic |

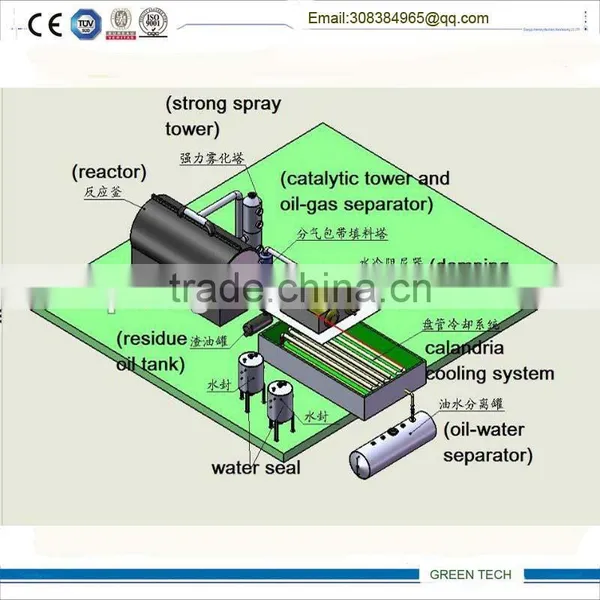

A. loading plastic into reactor
B. heating reactor
C. after heating , solid plastic converted to oil gas
D. oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system

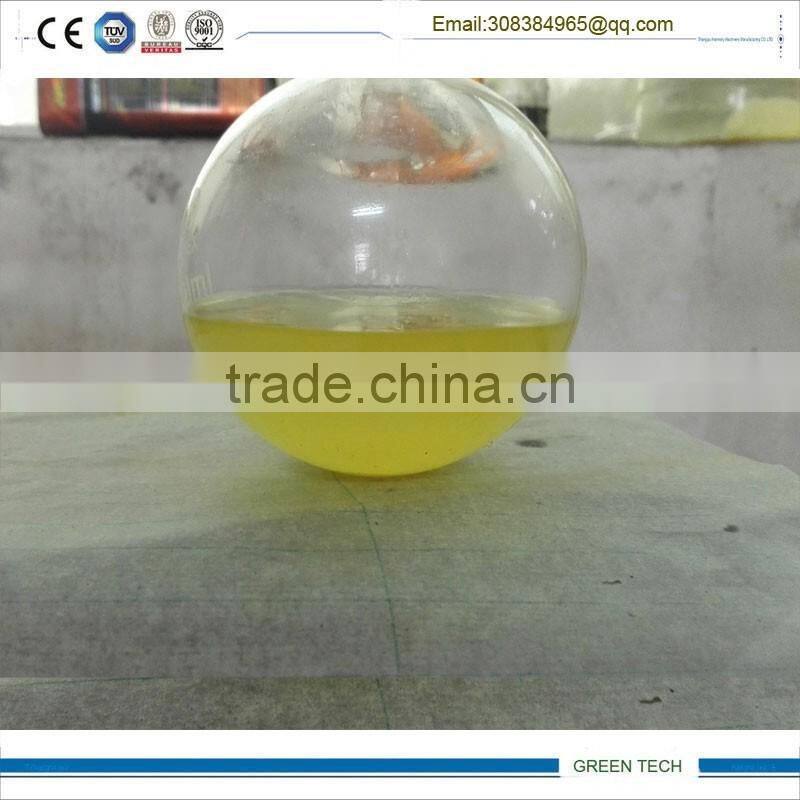

E. after cooling ,light oil gas change to liquid oil and go into light oil tank
F. non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
G. smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.

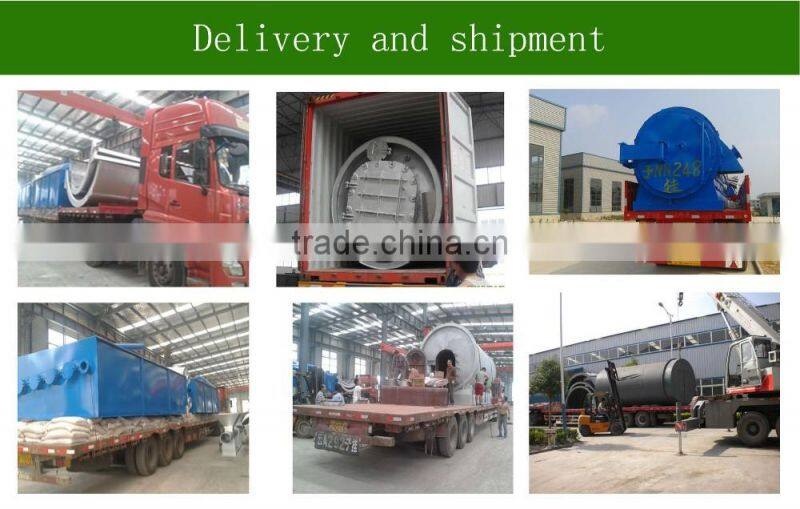

We'll punctually pack and deliver machine within 25day after receiving deposit.
(1)We will provide the foundation drawings and catalyst formula once we receive deposit.
(2)installation:we will send 1-2engineer to your local for guide installation and debugging .
(3)In normal use condition ,reactor warranty:one year,lifelong time5-6years!

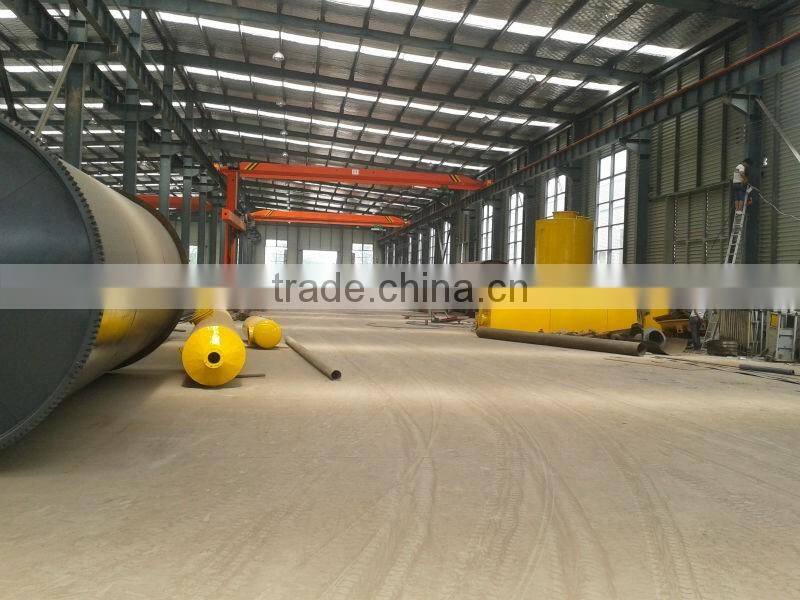

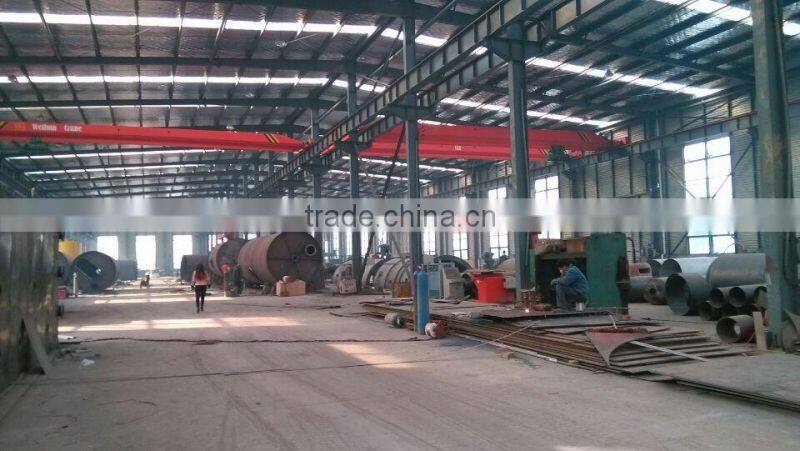

Shangqiu Harmony Machinery Manufacturing Co., LTD is a company has been specialized in manufacturing waste tyre or plastic recycling machine for more than ten years. Now our products are very popular both at home and abroad because of the perfect after-sale service and high quality.
Our Certificates:
Our Customers:
Our domestic users | Shandong,Fujian,Hunan,Henan,Yunnan,NeiMonggol,Chongqing, Hongkong, Taiwan | |
Oversea users | The Middle East | Iran,Iraq,Lebanon |
East Asia | Korea | |
Europe | Poland,Turkey | |
Africa | Mauritius | |
South America | Brazil | |
Southeast Asia | Malaysia, Indonesia,Vietnam,Philippine,Thailand | |
South Asia | Pakistan,India | |
| Europ | Italy |
