2016 Best Selling Intermittent Tyre Pyrolisis Plant Wiht High Oil Output

2016 Best Selling Intermittent Tyre Pyrolisis Plant Wiht High Oil Output photo-1
2016 Best Selling Intermittent Tyre Pyrolisis Plant Wiht High Oil Output photo-2

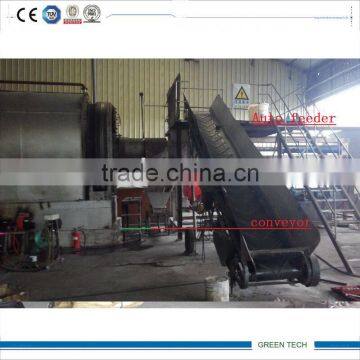

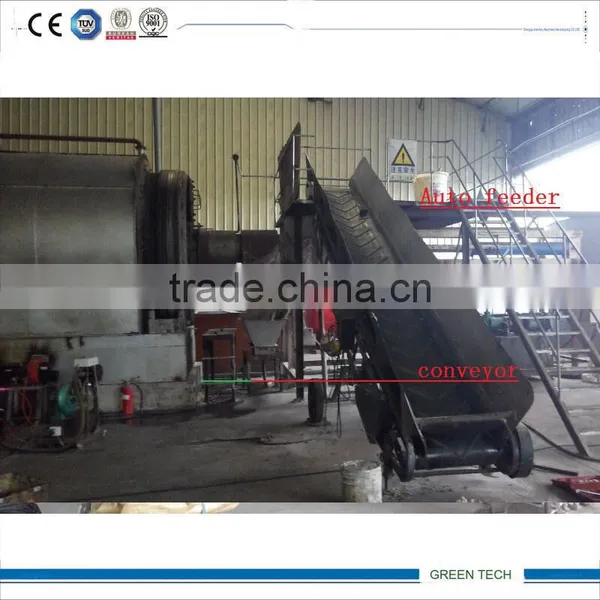

2016 Best Selling Intermittent Tyre Pyrolisis Plant Wiht High Oil Output photo-3

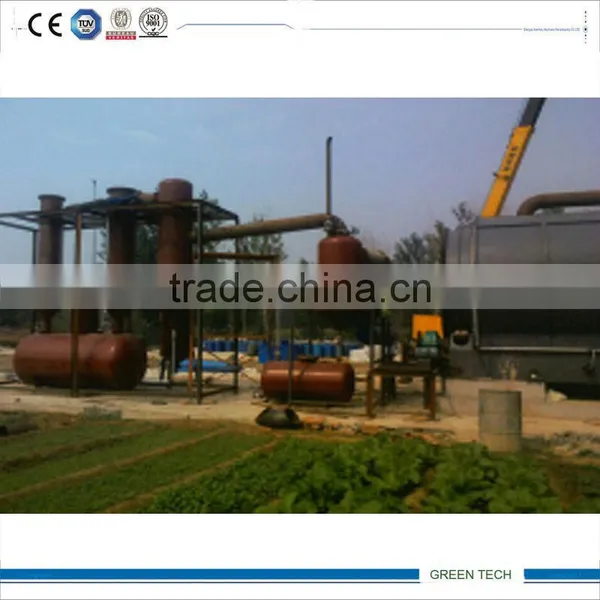

2016 Best Selling Intermittent Tyre Pyrolisis Plant Wiht High Oil Output photo-4
2016 Best Selling Intermittent Tyre Pyrolisis Plant Wiht High Oil Output photo-5

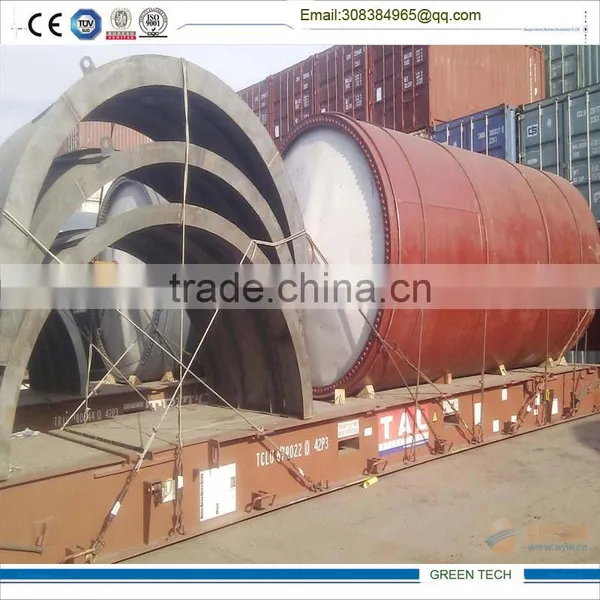

2016 Best Selling Intermittent Tyre Pyrolisis Plant Wiht High Oil Output photo-6
US$ 30,000 - 48,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tire Machine
Tire Machine Type:
Tire Recycling Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Tire Machine
Tire Machine Type Tire Recycling Machine
Place of Origin Henan, China
Brand Name XHZT
Model Number xhzt-2600-6600
Voltage 220/380/170V
Power(W) 21-30KW
Dimension(L*W*H) 2600*6600*16MM
Weight 35 TON
Certification ISO,CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

2016 best selling intermittent tyre pyrolisis plant wiht high oil output

the machine can be used for recycling waste tyre,rubber,plastic etc.


Pyrolysis work flow



Plant parameter

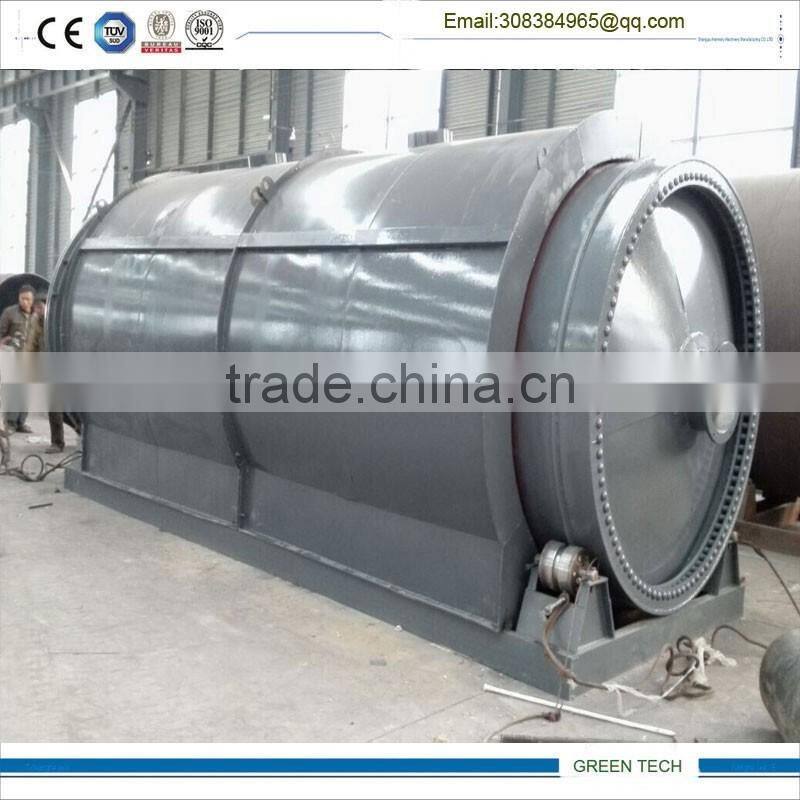

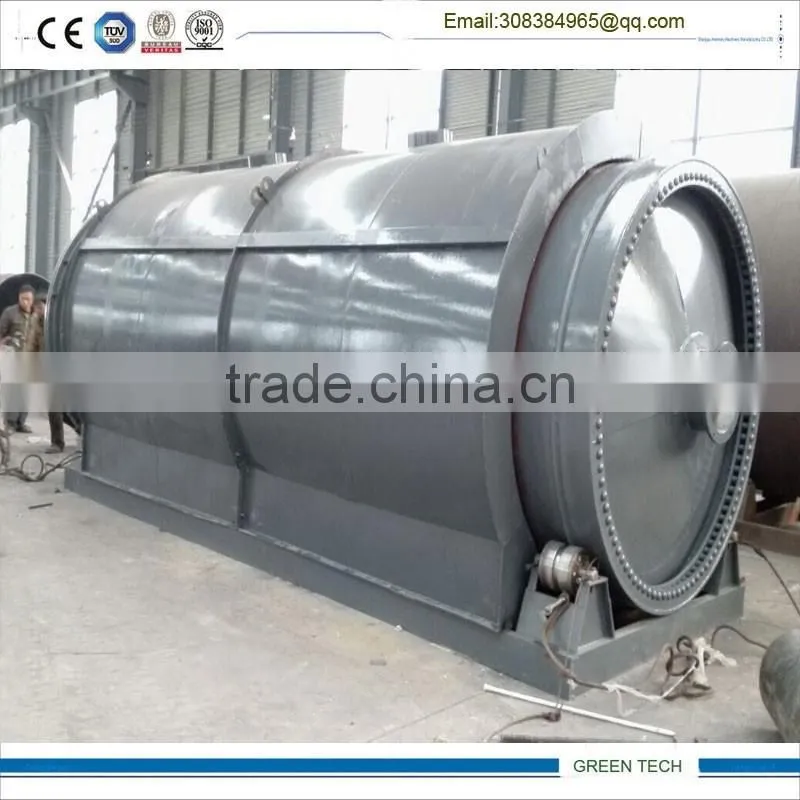

Reactor size
Reactor material
Driving way
Batch time
2600*6600mm(D*L)
q345R
by gear
16-20 hours
Effective temperature
working pressure
labour required
land required
150-600 degree
less than 0.3mp
3-4
500-600 sqm
Final ouput

1. FUEL OIL
It is the main product from the oil produce of pyrolysis process, widely used for industrial
and commercial purposes. Fuel oil composes of 45% to 53% of the total output.
2. CARBON BLACK
Carbon Black is the main product recycled by pyrolysis technology. The amount of recycled
carbon black is 30-35% (depend on the type of tyre) of the total amount of scrap tyres recycled
in the system. Carbon black can be used as raw material in many industries. We can further
process it and increase the mesh by grinding machine, or make it into carbon pellet by carbon
pellet machine.
3. STEEL WIRE
Tyre contains steel wires that can be detached at the end or the tyre recycling process.
It is about 10% to 15% of the output.
4. GAS
Gases are the products that produced during the process of recycling. These gases are
non-condensable and occupy about 10% to 20% of the output.

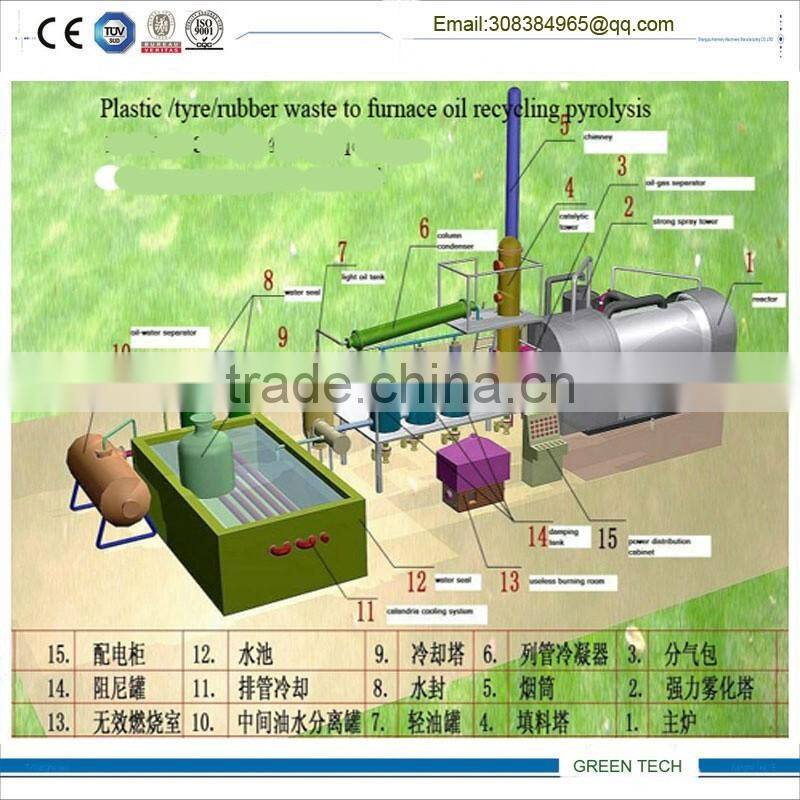

Major parts
About us

Only make pyrolysis and distillaiton plant

with more than 8 years experiences

One of top 10 BEST Chinese manufacture and supplier of pyrolysis and distillaiton plant

Our machine export to more than 15 countries

Patented factory of fully coninuous plant
