Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd

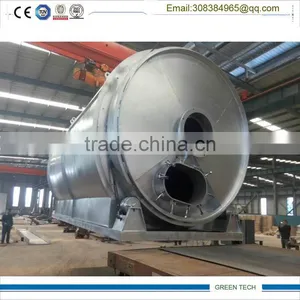

Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd thumbnail-1
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd thumbnail-2
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd thumbnail-3
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd thumbnail-4
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd thumbnail-5
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd thumbnail-6
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd photo-1
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd photo-2
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd photo-3
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd photo-4
Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd photo-5

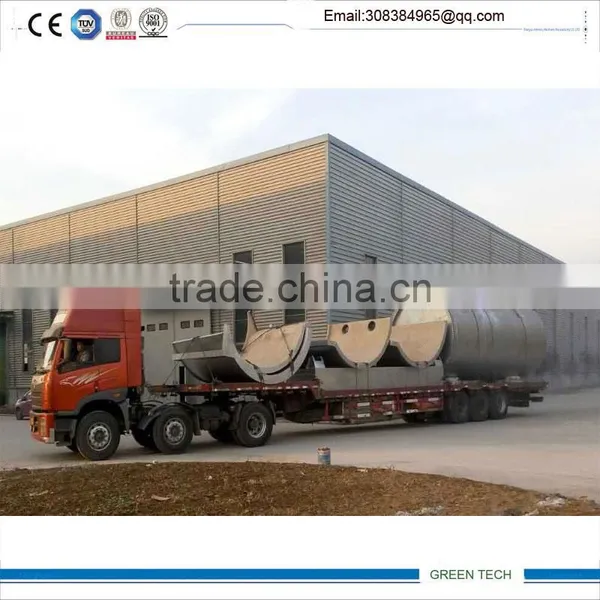

Economic Applicable Used Tires Refine To Oil Machinery By Pyrolysis Way 12-15 Tpd photo-6
US$ 30,000 - 56,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Tyre recycling pyrolysis machine
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Shangqiu Harmony Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
lainyungang shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Tyre recycling pyrolysis machine
Place of Origin Henan, China
Brand Name XHZT
Model Number XHZT-2800-8000
Voltage 380V/50HZ
Power(W) 30 kw
Dimension(L*W*H) 2800*8000mm
Weight 35-40 Ton
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Used tire refinery to oil pyrolysis machine

Convert waste tire to oil and carbon black

Batch type

Daily capacity 12-15 ton

Batch time:20 hours

Working pressure : normal

Effective temperature: 150-360

Water consumption: 800 kgs

Power:21-30 kw

Labors required:2-3

Heating fuel: coal, gas, oil

Certificsate: CE, ISO

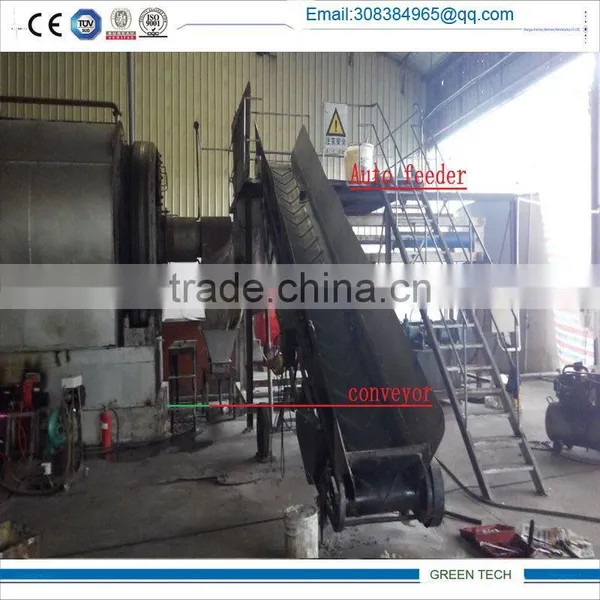

Feeding way: by hand or automatic

Carbon slag discharge way: automatic

Reactor size
Reactor material
Reactor rotate speed
Total weight
 2800*8000MM (D*L)
Q345 R
4 rpm
35-38 ton
Detailed Images

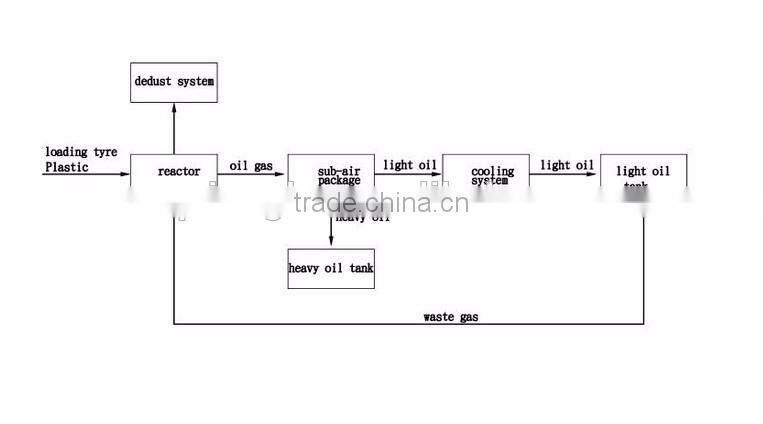

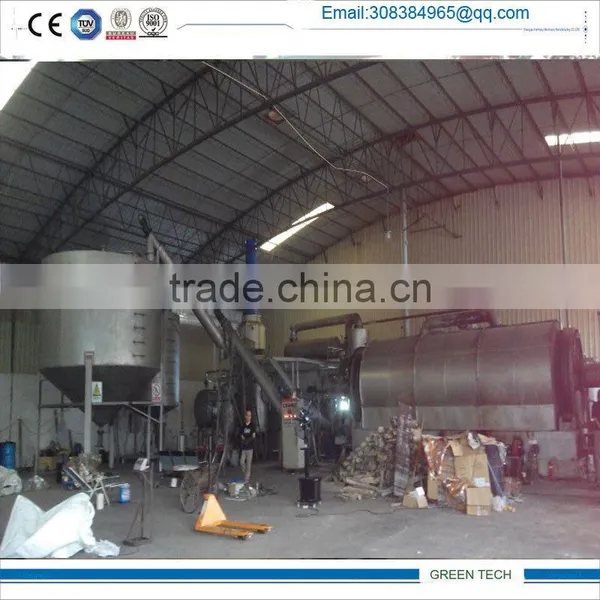

Working principle

Feed waste tyre into reactor, heat reactor, solid waste tyre change to oil gas, oil gas goes to cooling system , after cooling down, oil gas changes to liquid oil, then goes to oil tank.

After pyrolysis, carbon black will be produced, cool down reactor, then discharge carbon black automatic by reactor rotate and by carbon discharge machine.

Also non-condensed gas will be produced when pyrolysis, the non-condensed gas will go through water sealing then back to burning chamber,  burn to heat reactor as fuel.

Tyre oil parameter
Density
0.88-0.92
 g/cm3
Freezing Point
-5
  oC
flash point
25-35
  oC
Sulfer content
5/1000
-----------
Combustion value
9500-10000
Kj/kg

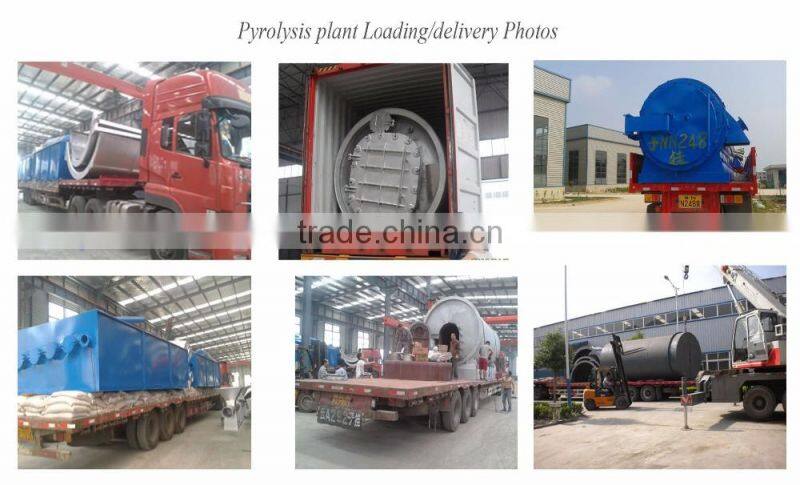

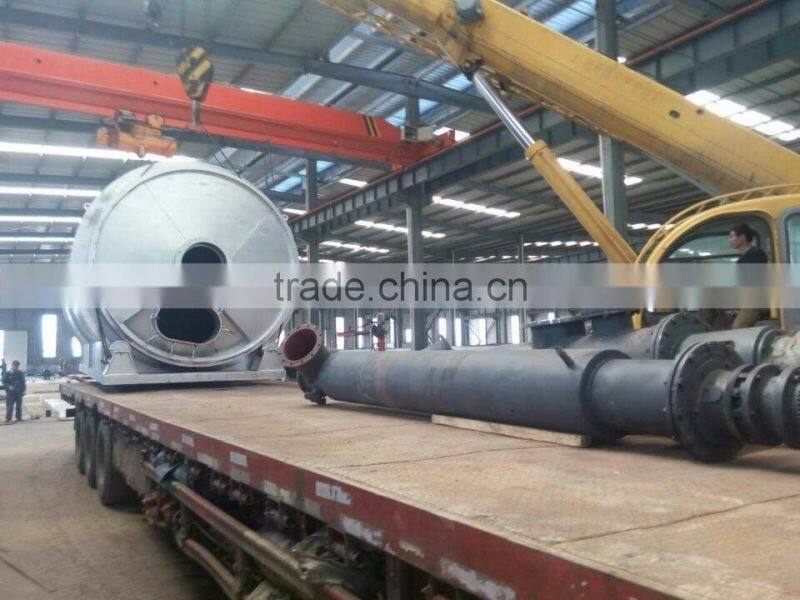

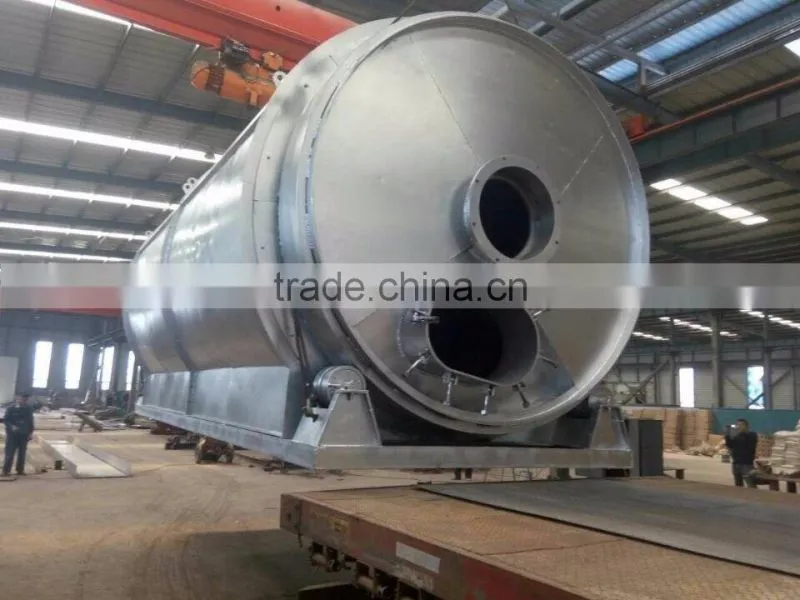

Loading
Related Products

Mini pyrolysis plant

2-3 ton/ batch

xhzt-1600-4000

small pyrolysis plant

5 ton/ batch

xhzt-2000-6000

middle pyrolysis plant

8-10 ton/ batch

xhzt-2600-6600

xhzt-2800-6000

fully continuous pyrolysis plant

20-30 ton/24 hrs

xhlx-20-30

large continuous pyrolysis plant

40-60 ton /24 hrs

xhlx-40-60

tube type tyre special pyrolysis plant

20 ton / batch

xhzt-11000-2000


Oil Distillation plant

5 ton/24hrs

xhzl-05

Oil distillation plant

10 ton/ 24 hrs

xhzl-10

oil distillation plant

15 ton/ 24hrs

xhzl-15
