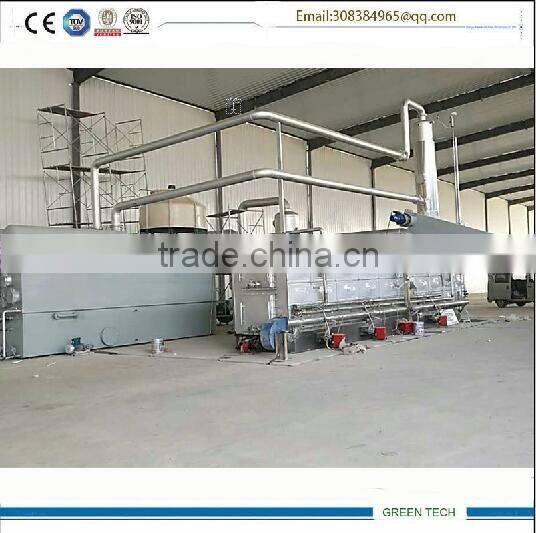

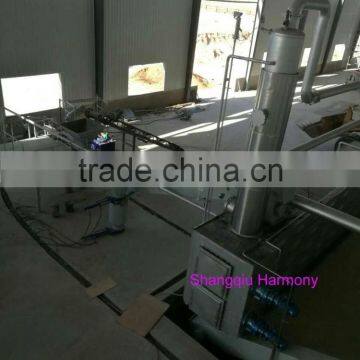

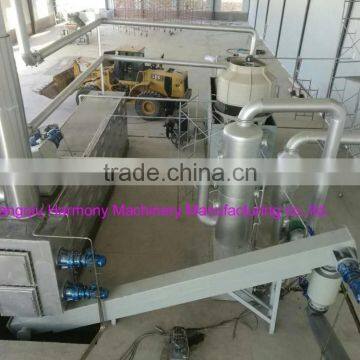

20 tpd Masut oil/mazout oil refining to base oil fully continuous pyrolysis plant
Fully continuous pyrolysis plant
24 hours non-stop,continuous work 25 days or more
static pyrolysis ,getting high quality oil ,the oil with less dust
this machine can be used for many material such as tyre, plastic, rubber ,oily waste, cooking waste etc
special design saving fuel
Take latest design , fast installation .
Reactor size | (L*W*H)10.5*1.5*2.5 M |
volumn | 39 M3 |
material | Q345R |
Work pressure | slightly negative pressure |
Process capacity /24hours | 8 ton for tyre |
15 ton for plastic | |
Oil sludge 20 Ton | |
Oil sand 15-20 TON | |
output | Base oil |
Working principle | Oxygen free pyrolysis |
workers | 9 |
power | 40-60 kw |
voltage | 220v/380v |
Power consumption/24hours | 500 kw |
Water consumption | 1-2 Ton |
Feeding time | Continuous feeding |
Carbon discharge time | Continuous slage out |
working life time | 4-5 year |
Slag temperature | 150℃ |
Fuel | Gas, oil |
Pyrolysis way | Static pyrolysis, non-rotate |
Slag disharge way | Continuous slag out |
Dust smoke temperature | 350℃ |
Shangqui Harmony Machinery Manufacturing co.,ltd. which is one of TOP 10 Pyrolysis plant and Oil recycling distillation plant manufactures in China with more than 8 years experiences and newest technology.
Our pyrolysis plant -convert waste tyre, plastic or other raw material to fuel oil without pollution,specification from 2ton to 40ton (per day capacity ),from batch type to semi-continuous type and to fully continuous type. Customized plants also are welcome.
our distillation plant converting fuel oil to diesel from 1 ton to 40ton, from batch type to fully continuous type.
1. we send enginer for guid installlation and test machine, train the workers
2.offer documents machine machine manufal
nic upte for customer
4.24 hours on line service,
5.incase can not solve the problem one line, then we will send engineer to the customer side
6.the whole machine guarantee time is one year, for reactor it is 3 years, during warranty period , if our machine have defect, we will change or repair it for free
7. we will ship machine with 50 days after receipt deposit payment
