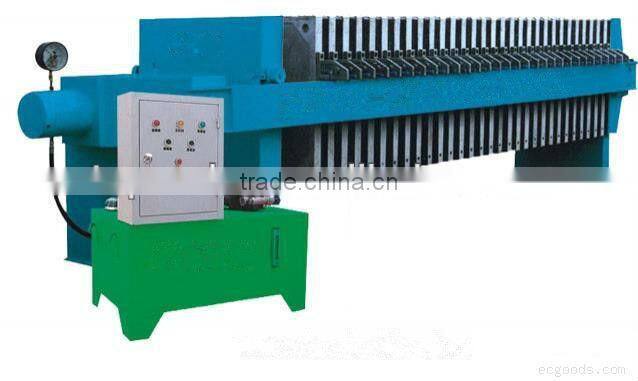

Membrane Filter Press for Precipitated Calcium Carbonate

Specifications

Working principle of membrane filter press for precipitated Calcium Carbonate :

The filter chamber of membrane filter press consists of membrane plate and chamber plate.With the help

of the feeding pump,the solid and liquid are separated by the filter medium(filter cloth).After the filter cake

is formed,and then air or liquid goes into the membrane plate.The second squeezing happens by the

membrane plate bulk and lower moisture content.Membrane filter press is suitable for the filtration of viscous

material and user who has higher requirments about the moisure content of filter cake.

 Membrane flter plates is molded with enhanced polypropylene plates are stick together.It is firm,not easy

to fall off,long service life.

The difference between the membrane filter press and the ordinary filter press:
membrane pressure filter and other filter press equipment on the biggest difference lies in the structure of

the filter chamber,and the  membrane filter press block solid medium is rubber diaphragm and PP overall

diaphragm of diaphragm, the ordinary press filter medium is woven with fibre filter cloth, its medium material

on a significant difference between the two. Diaphragm filter press can be secondary expansion pressure,

further drying the filter cake filtration.

The membrane filter press equipment has the following advantages:
1, shorten the filtering operation time.
2, save power consumption, operation in late filtration, small flow, high pressure.
3, save power consumption.
4, further reduce the moisture of filter cake, generally can reach 8%-15%.
5, compared with the plate and frame filter press, effective filtration area increases, accelerate the filtering speed.
6, acid resistance, alkali resistance, the use of the temperature is higher, generally can be used in 230 about the

temperature of the, application more widely, basic is applicable to all the solid-liquid separation.
7, the automatic degree is higher. Adopt humanized structure design, make the control and operation more convenient.
8, diaphragm filter plate has anti-fatigue, anti-aging, sealed performance is good wait for a characteristic.
9, easy replacement of filter cloth.

Technical data of membrane fiolter press 870/1000
