Stainless steel cartridge Filter, stainless steel filter for gas or liquid.

Stainless steel cartridge Filter, stainless steel filter for gas or liquid.

Stainless steel cartridge filter is so widely used, filter variety, more specifications, it is important to select the model.

Filtering can be divided according to use two kinds of liquids and gases, size specifications can be divided into 5",10", 20", 30" and 40" . Working pressure in general 0.1Mpa-0.4 Mpa. Due to the different filter pore size, its flow is not the same as 0.2um-0.4 um filter turbid water standards in 300-500kg / h, if you want to increase the hourly amount of filtering, you can use multi-core or 20", 30" and 40" inch combination, for example, to filter 5t / h of sterile water, you can choose 0.2 um, 30" 7 core filter. If the filter impurities and the viscosity should be added to the pre-pre-filtration equipment. Filtration and liquid gas filter is slightly different from its filtration capacity in cubic gas per minute is calculated. 10 inches filter, aperture φ0.22 um, pressure at 0.12 Mpa, the pressure at 0.01 Mpa, flow 4-6m3 / min, it is widely used in the fermentation industry.

Suitable filter, choose the appropriate aperture, to sterilize the selection 0.2um-0.5um pore size filter, pharmaceutical injections, antibiotics, blood products, such as polysulfone filter. If the liquid to remove particles, microbes and bacteria larger ionic impurities, such as liquor, wine, wine, oral liquid, the choice 1-5um aperture can be. High temperature gas filtration and fermentation air sterilization gas should we use teflon filter.

Stainless steel barrel filter, it is equipped with different internal aperture filter. Objective To achieve fine filter, pre-pre-filtration equipment must be used (draft beer with diatomaceous earth, cardboard filter. Pharmaceutical use frame, meltblown, wound), and then the porous sterilization filter, so fine filter to achieve the purpose.

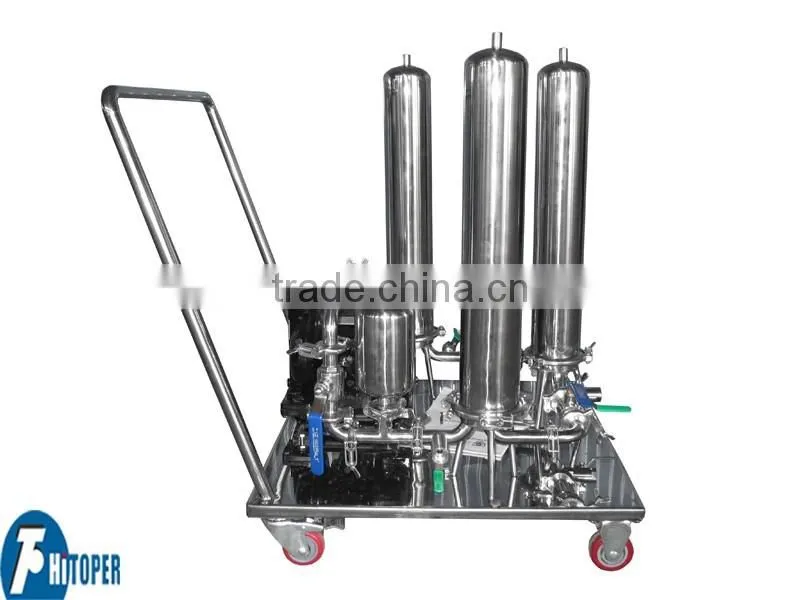

Usually with mineral water, medicinal sterile water, the electronics industry integrated water, food industry with a high quality water. Microporous filter cartridge design should become a separate filtration system, which can take backwashing, saving production costs.

Various filters in our factory,
