Brief Introduction

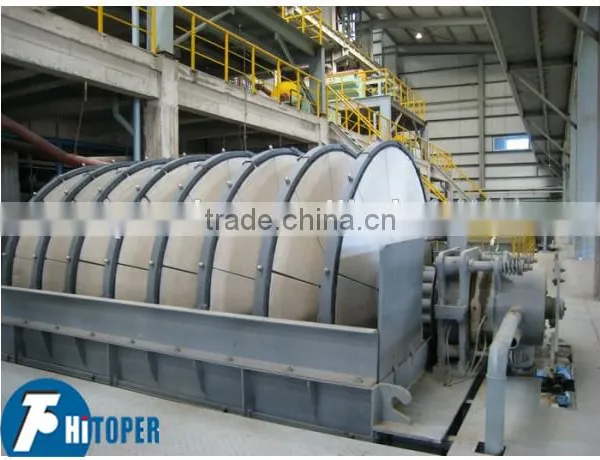

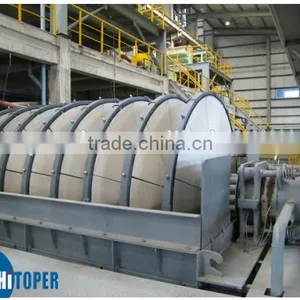

This machine is a new type of disc vacuum filter, designed especially for iron ore concentrate, non-ferrous metal concentrate dewatering is also suitable for beneficiation in the coal washing, non-metallic minerals, chemicals used in the environmental effects.
Vacuum disc filter is a solid-liquid separation equipment, filtered power vacuum as the slurry liquid separation. The machine uses a filter plate guide frame-oriented, variable speed agitation, anti-hair unloading, automatic centralized lubrication advanced technology, is an excellent use of reliable dewatering equipment.
Material of Sectors filter plate
Discs and sectors can be made in injection molded polypropylene and ceramic.
Disc vacuum filter is constituted by the individual fan-shaped piece of the disc.
A fan-shaped piece separate filtration unit, made by the filter cloth filter chamber is formed in a fan-shaped piece cloth cover.
Filter disc by a motor through a gear reducer and open to drive the rotation of the filter disc clockwise direction, the filter room pulp by means of a vacuum pump a pressure difference is formed on both sides of the filter medium in the adsorption zone, deposited on the filter disk formed by filtration cake after the agitator rotation to prevent the solid precipitate, after leaving the liquid surface, the filter cake was stripped of water under vacuum to continue.
Filtrate through the filter cloth, the filtrate pipe discharged from the dispensing head. Cake, at the discharge area by the anti-hair discharge, falls into the discharge chute, and the entire job process continuous loop.
Feature
1.The aircraft sector plate with ultra high strength polypropylene molded, high strength, not easily deformed life increased by several times than fiberglass; the sector plate openings up to 30%, so it does not affect the filtering effect of clogging, and conducive to further increase production and reduce the cake moisture.
2. Each filter disc 20 fan-shaped plate, the strengthening of the control of the filtering process, the filter cake is relatively uniform.
3. The filtrate tube section the distribution head cavity volume, help to improve the ventilation rate and the filtrate emissions.
4. The use of anti-hair plus scraper discharge, in order to ensure the expulsion rate of cake.
5. Gear, inverter speed control, speed range, reliable operation.
6. Optimized design of the structure of the filtrate tube completely ruled out the original flange joints due to aging rubber air leaks. The filtrate pipe wall thickness also increased to 6mm and lined with ceramic tile.
7. Using dry oil pump centralized oil lubrication to ensure the normal operation of the equipment.
8. The characteristics of the cement industry, the use of pneumatic mixing system.
9. Siemens PLC and Mitsubishi inverter control system, and can be provided in the control and accept the various control signals.
Technical data
| Type | ZPG 10-2 | ZPG 15-3 | ZPG 20-4 | ZPG 25-5 | ZPG 30-6 | ZPG 35-7 | ZPG 40-8 | ZPG 60-5 | ZPG 72-6 | ZPG 120-10 | ||
| Filter area (m2) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 60 | 72 | 120 | ||
| Disc filter quantity (pcs) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 5 | 6 | 10 | ||
| Capacity (t/h*m2)> | 0.7-1.0 | |||||||||||
| Cake thickness (mm) | >=10 | |||||||||||
| Cake water content (%) | <=10 | |||||||||||
| Disc filter | Diameter (mm) | 2000 | 3100 | |||||||||
| Rotation speed (r/min) | 0.3-1.2 | |||||||||||
| Motor | Rotation speed (r/min) | Adjustable | ||||||||||
| Power (Kw) | 3 | |||||||||||
| Mixer | Rotation speed (r/min) | 80-110 | ||||||||||
| Motor reducer | Rotation speed (r/min) | 80-110 | ||||||||||
| Power (Kw) | 3 | |||||||||||
| Tank volume (m3) | 0.86 | 1.38 | 1.85 | 2.29 | 2.72 | 3.1 | 3.59 | 9.8 | 11 | 14.5 | ||
| Dimension L*W*H (mm) | 2450* 2820* 2665 | 2840* 2820* 2665 | 3230* 2820* 2665 | 3620* 2820* 2665 | 4010* 2820* 2665 | 4502* 2820* 2665 | 4892* 2820* 2665 | 4750* 4205* 3740 | 5250* 4205* 3740 | 7175* 4205* 3740 | ||
