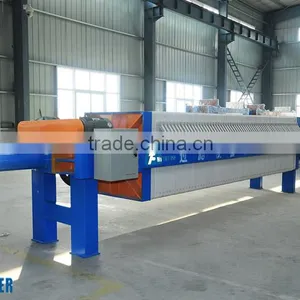

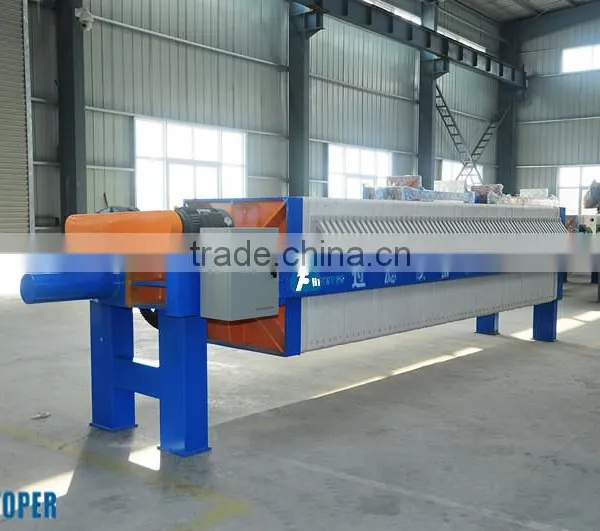

China supplied mechanical water filters with fully new filter plates
Mechanical water filters Features:
Mechanical filter press driven by an electric motor drive components to promote the pressing filter plate. Compressing screw and the fixing nut to set up a reliable self-locking angle, to ensure the reliability and stability when compression. With comprehensive protection get automatic motor control, and achieved on the motor overheating and overload protection. Mechanical Compress Filter Press machine has easy to use, the advantages of low operating cost.
Mechanical water filters Work Principle:
The pressure machine parts are include advanced overload protector, gear reducer, gear, screw, and fixed nuts. When the pressure part start work, it will drive gear reducer and gear, to rotate the screw in the fixed wire mother. In order to push the pressure plate filter plate, filter box pressure. When the pressure force is higher, motor load current will increases, when it meet the protector set current value and maximum clamping force, the motor would cut off the power supply, stop running.
Because of the wire rod and the fixed wire mother have reliable self-locking spiral Angle, so it can make sure the reliably guarantee state of compression in the process of work, When it return, motor reversal, when the weight for the hold-down plate, reach to travel switch back to stop.
Mechanical water filters Application:
Today, the mechanical compress filter press has been widely used in coal washing, inorganic salt, alcohol, chemical, metallurgical, pharmaceutical, light industry, coal, food, textile, environmental protection, energy industry solid-liquid separation processing.

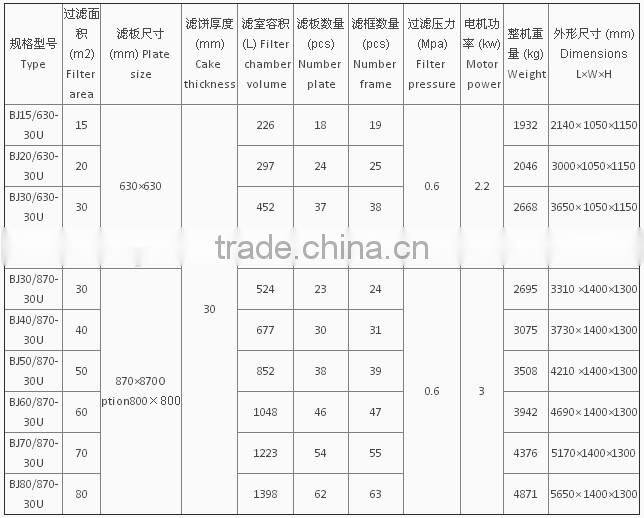

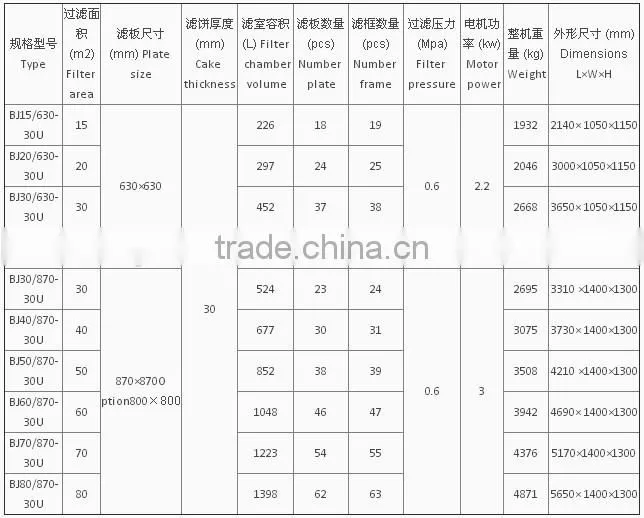

Technical Data of mechanical plate and frame filter press:

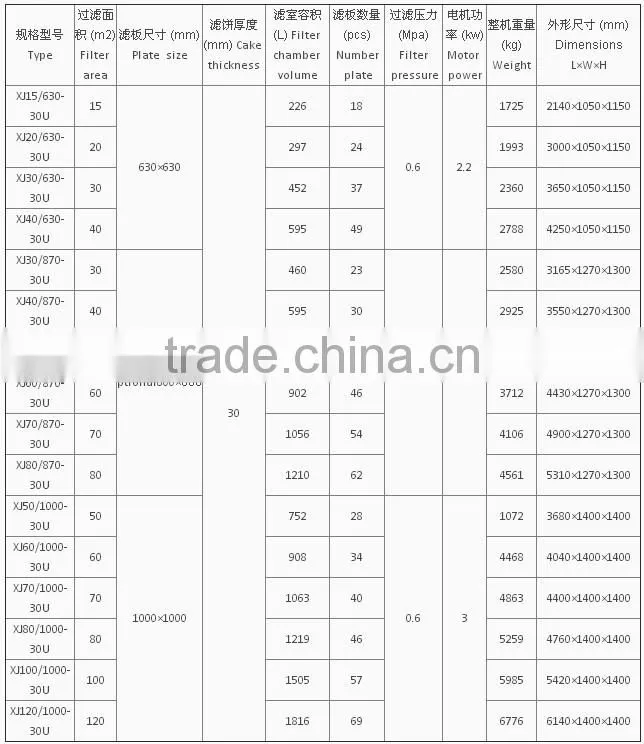

Technical Data of wastewater filter press of chamber type
Other type of Toper's filter and separator equipment:
Toper Super Fast Speed Logistic Nets:
We could offer different path to delivery goods as you need.
Toper Global Service:
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of
various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing
devices and suspending liquid is pumped into the filter chamber. Solid particles and separated
through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile,
printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and
sewage treatment industries.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press

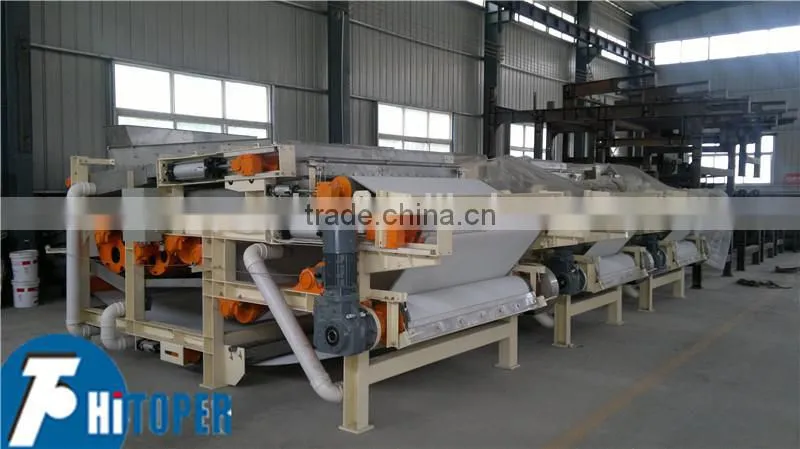

11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
