Product Details
Place of Origin: | Henan, China | Brand Name: | TOPER | Model Number: | the length from 320mm to 2000mm |
Type: | Other, filter press | Usage: | Liquid Filter | Material: | Polyester |
Product Description

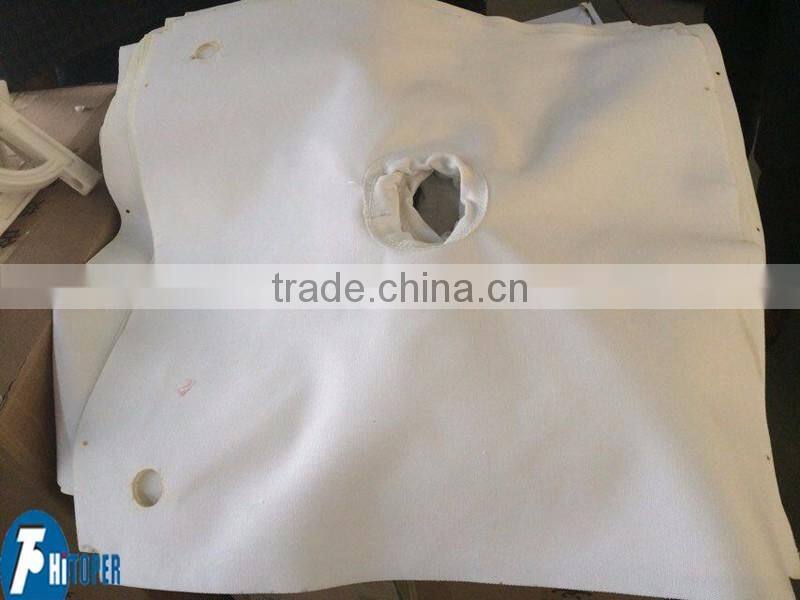

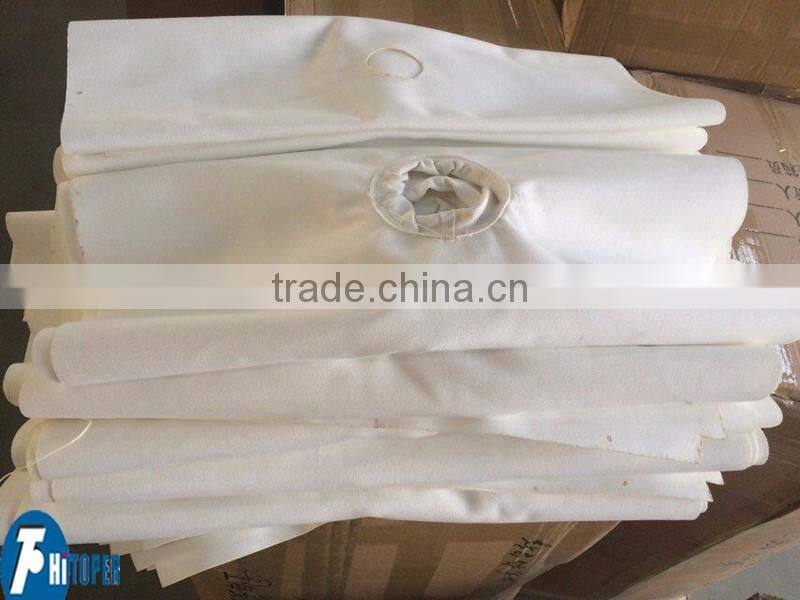

Filtration process used PP, nylon, cottonr, PVA, polyester filter cloth
Filter cloth is the important part fot filter press. If a filter press want a best performance, it’s mainly depended on the separation nature of the filter cloth.
Classification.
According to the material, filter cloth can be divided into two types: one is nature fibers, such as cotton. Woollens, silk, liner etc.; the other is synthetric fibers, such as dacron, nylon, polyacrylonirile, vinylon, acrylic fibers, polyester fibers etc...
According to yarn, it’s divided into 3 types, monofilament yarn, multifilament yarn, spun yarn. The monofiament is not easy to cause block and good at cake discharging, the multifilament yarn has high strength, and also good at easy dischargeing and renewable performance, the spun yarn is good at solid capture and have better sealing performance.
Different weaving method have different filtering performance:
Filtering speed: Plain weace<twill weave<satin weace<nonwovens
Cake moisture: Plain weace>twill weave>satin weace>nonwovens
Filtrate clarity: plain weace<twill weave<satin weace<nonwovens
Cake dischrge: nonwovens<plain weace<twill weave<satin weace
Renewability: plain weace<twill weave<satin weace<nonwovens
Life span: nonwovens<satin weave<plain weave<twill weave
According to producing method, the filter cloth divided into following types:
Chamber ilter cloth, plate & frame filter cloth, multilayer filter cloths etc. the cloth fixing method can use: cloth belt, ties, clamps etc.
According to different industrial needs, the filter cloth can be specially processed: latex coating, gasket receeed ect.

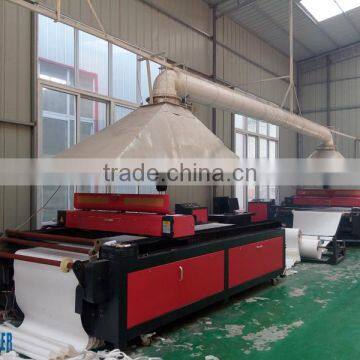

Filter cloth production process and various filter cloths in our factory,
Since 2006,Our HI-TOPER equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
Our HI-TOPER manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter plate
29. Filter cloths
30. Vacuum disc filter
