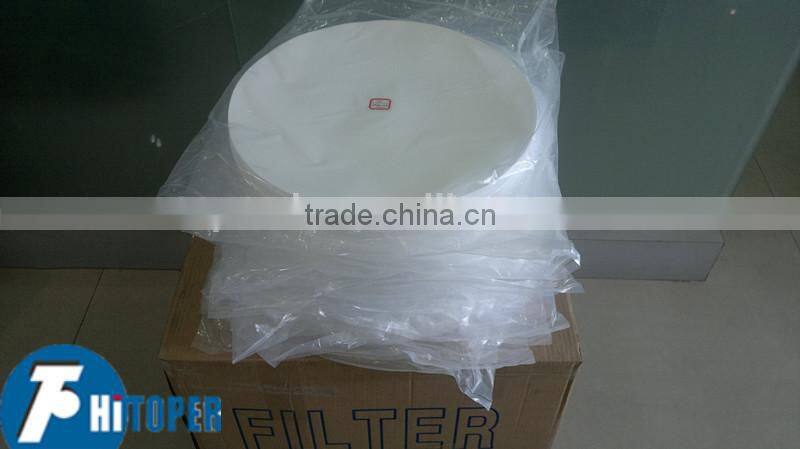

China hot sale low price oil filter paper
Brief introduction:
The depth filter sheets incorporate an advanced blend of selected and processed cellulose fibres combined with filter-aids to produce filter media with superior filtration capabilities in conjunction with excellent wet and dry handling characteristics.
In the filtration process, solid particles are slowed down and eventually retained by the tortuous path inside the filter sheet and by electrokinetical interactions.
The pore size can be fine enough to retain bacteria down and thus produce a sterile liquid.
Applications
Typical applications of the depth filter sheets include spirits, wines, beers and lagers where long life, sterility, stability and clarity are essential. Similarly, the depth filter have found wide acceptance in the filtration of syrups for soft drinks and gelatines, plus a diverse spread of chemical and pharmaceutical intermediates and final products.
Examples of industries:
Biotech
Beverage (beer, wine, spirits, juice...)
Enzymes
Fine chemicals
Herbal or other natural extracts
Pharmaceutical intermediates
Process water
Solvents
Technical data
Type | SCP-311 | SCP-312 | SCP-321 | SCP-332 | SCP-333 | SCP-334 | SCP-335 |
Thickness (mm) | 3.4-4.0 | ||||||
Density (g/m2) | 0.30-0.33 | 0.33-0.36 | 0.34-0.37 | 0.36-0.39 | 0.37-0.40 | 0.38-0.41 | 0.39-0.42 |
Water flow rate (3kpa/50ml) | 1'30''-4' | 4'-7' | 7'-10' | 10'-20' | 20'-30' | 30'-40' | 35'-50' |
Bursting strengthwet (kPa) (more than) | 230 | 230 | 200 | 200 | 200 | 200 | 180 |
Ash (%) (less than) | 28 | 35 | 37.5 | 49 | 48 | 47 | 52 |
Water (%) (less than) | 7 | ||||||
Insertion of the Support Sheet
When inserting into the filter press handle the filter sheets with care to eliminate distortion or abrasion. Never use a damaged filter sheet.
To ensure correct use place the smooth side of the filter sheet against the filtration plate. The rough side of the filter sheet faces the liquid to be filtered.
Sterilizatio
This type of filter sheets may be sterilized with saturated steam (100oC-110oC) or hot water(85oC-90oC) in 20min. The pressed packed filter has to be slightly loosened.
Make sure to sterilize the entire filter system thoroughly. Final pressure should be applied to the filter package once the entire filter has cooled down.
Regeneration
This type of filter sheets can be forward and back washed using softened water to extend the life and reduce the costs of filtration.
The sheets can be washed with hot water(50oC-60oC) in 20min.
Forms of supply

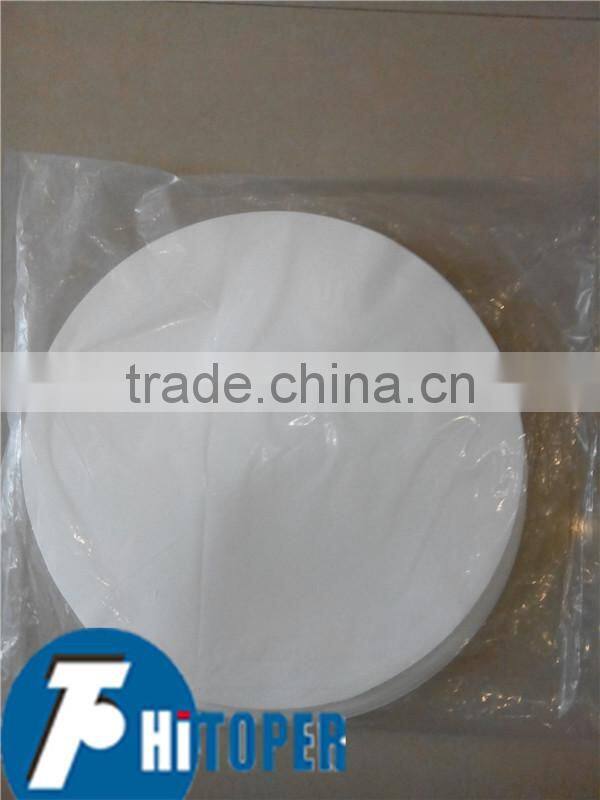

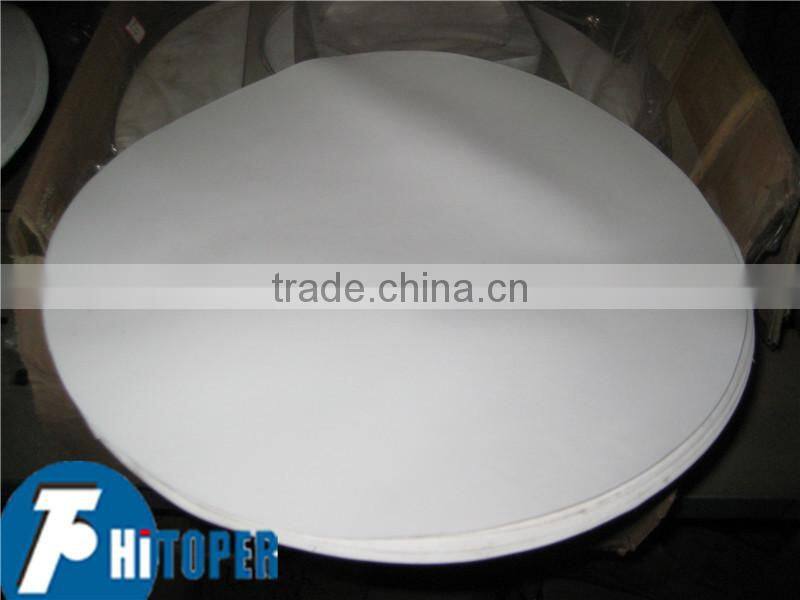

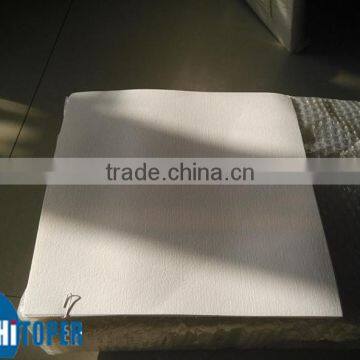

The depth sheets are available in various sizes and formats up to 1260 by 2600 mm (double, fold) with an enforced crease. Special formats are available on request.
Material
Cellulose fibers, refined cotton, wood pulp and wet strong agents of foodstuff quality. All ingredients used in the above product do not contain any material in the sense of hazardous substances.
Disposal
Uncontaminated sheets can be recycled like paper, composted or disposed with the domestic waste. Contaminated sheets must be disposed according to the contamination.
Storage
Depth filters consist of strongly adsorbing materials. Careful handling is necessary during transportation and storage. Depth filters must be stored in a dry place that is well aerated.

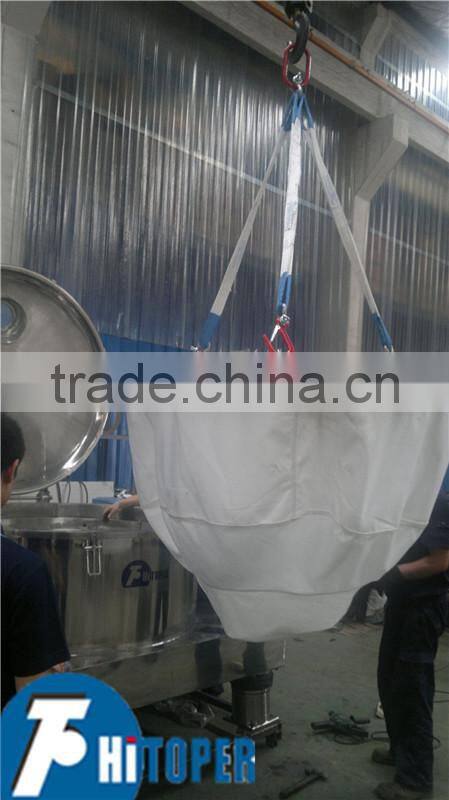

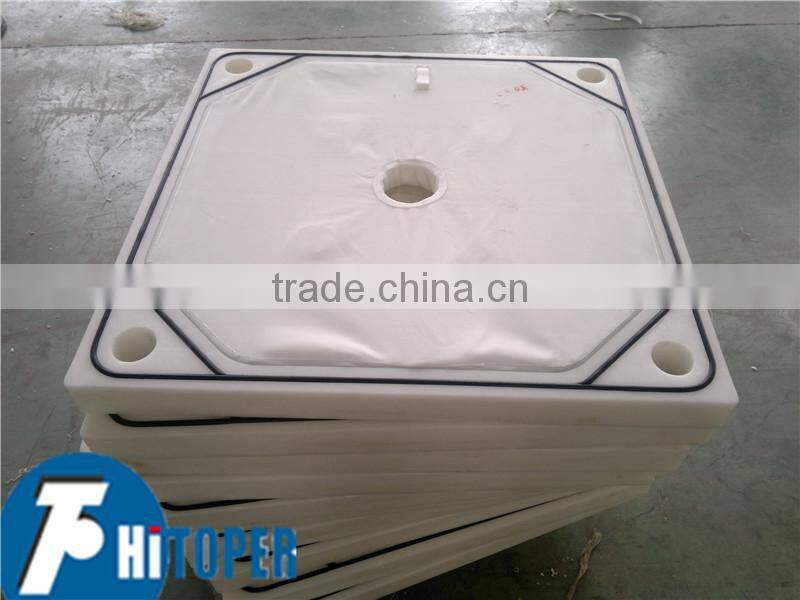

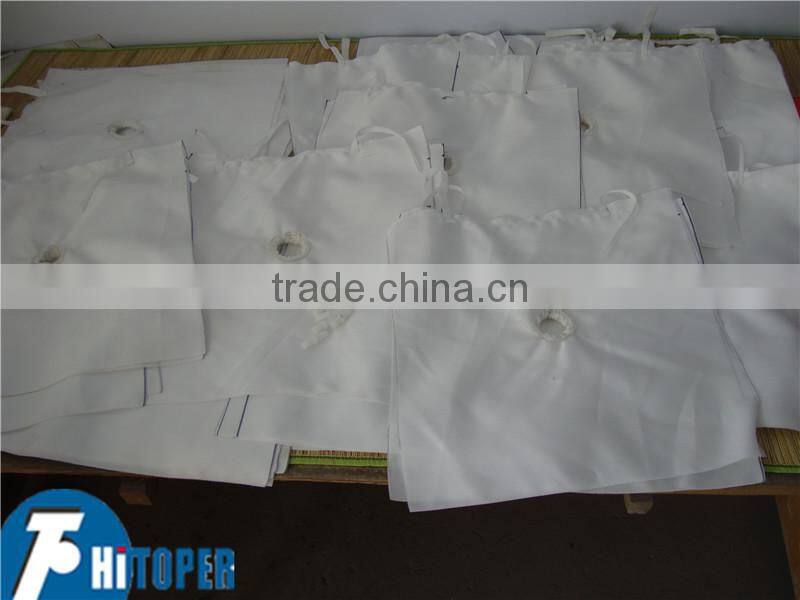

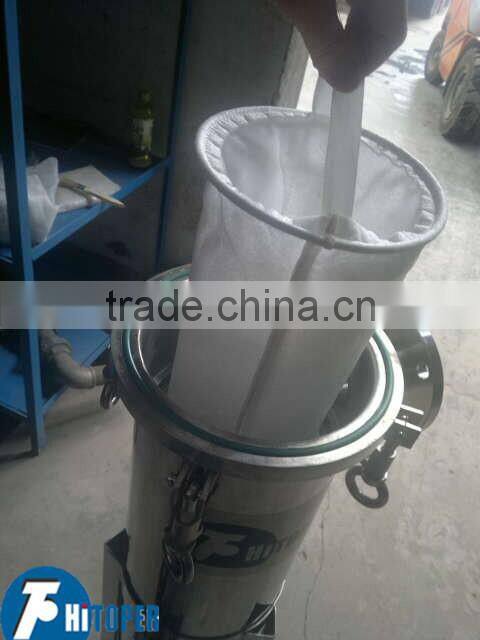

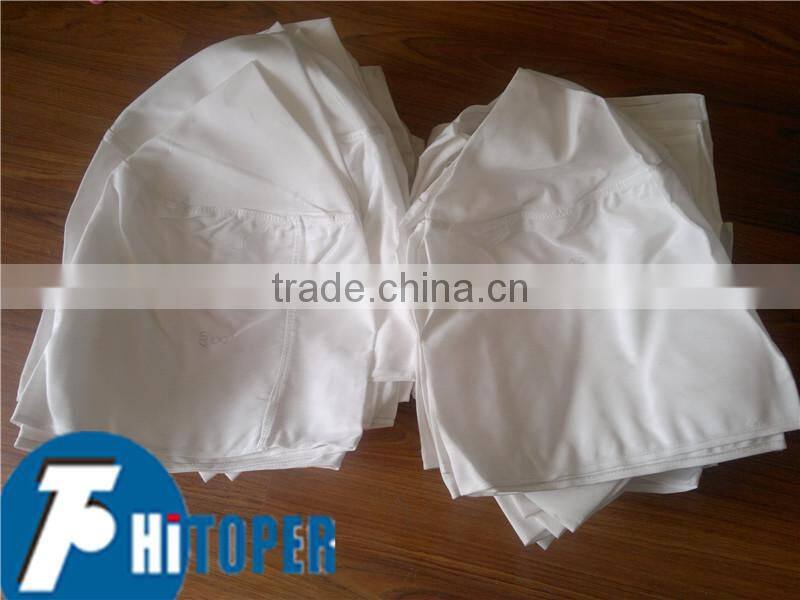

Other type of our filter medium used for our filter and separator equipment:

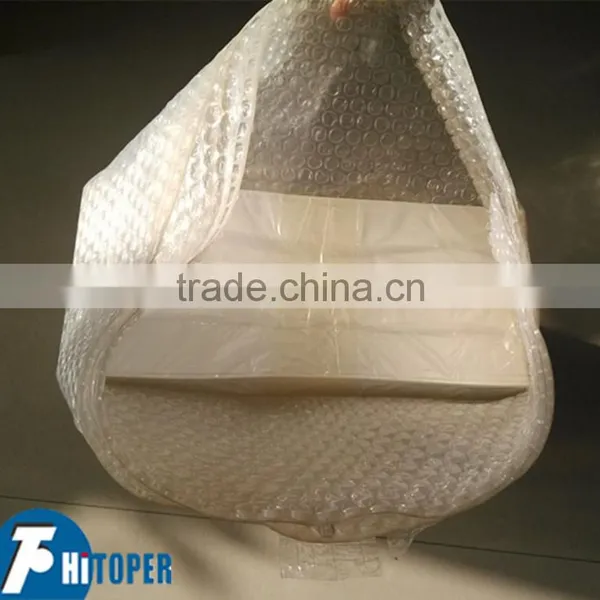

We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of products according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the products you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
Zhengzhou Toper is specialize in filter and separation area ,who have done lots of improvement and innovation in the field of filter and separation since 1997.
Our products include not only the filte paper ,but also variety kinds of filter press ,centrifuge,bag filters ,belt filter ,fitler plate ,filter cloth and so on to meet customer's demend.
