Product Details
Place of Origin: | Henan, China | Brand Name: | TOPER | Model Number: | 50ZJ-I-A17 |
Theory: | Centrifugal Pump | Structure: | Other, pulp pump | Usage: | Other, mixed slurry |
Power: | Other, Electric, 7.5kw | Standard or Nonstandard: | Nonstandard | Fuel: | Other, electric |
Pressure: | Low Pressure | Application: | Other, delivery slurry |
Product Description

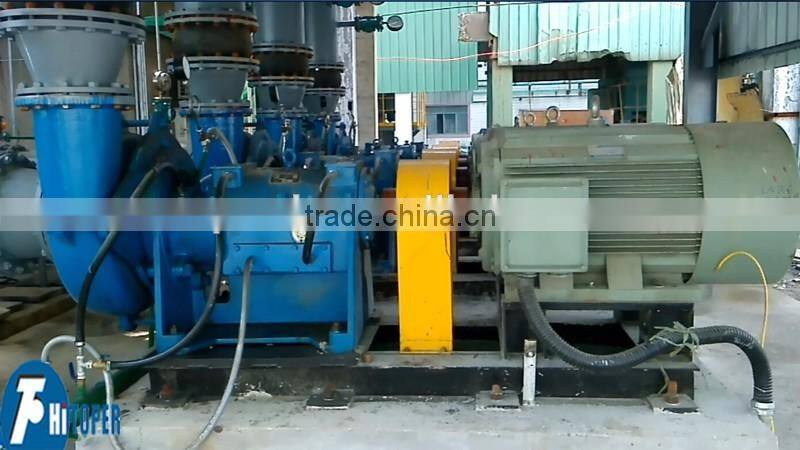

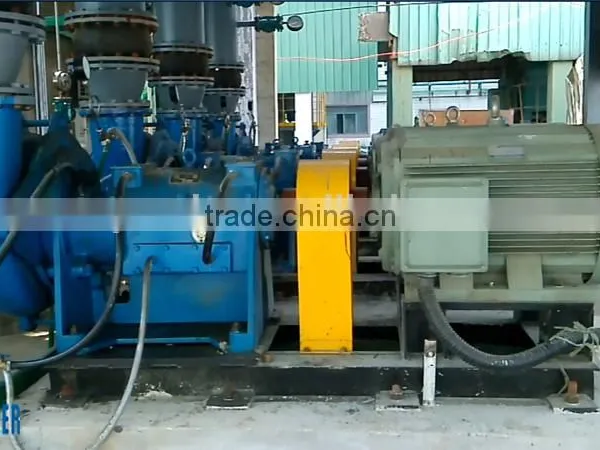

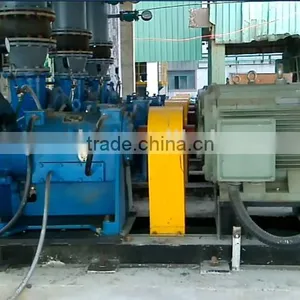

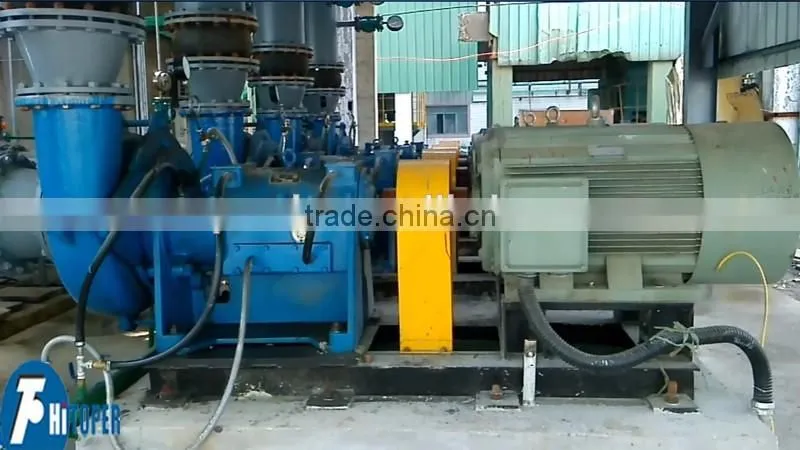

Sludge dewatering suction pump, mine dewatering pumps

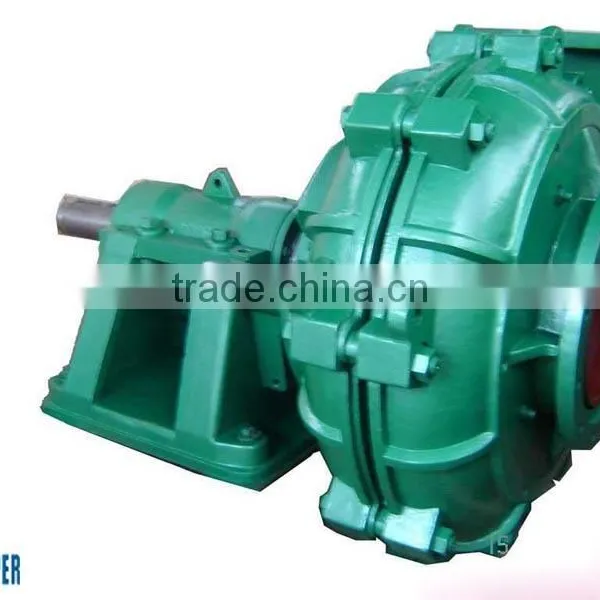

Mine dewatering pump is single stage, single-suction centrifugal slurry pump, pump body is double inside and outside metal structure, the pump casing is vertical in the open, the outlet can rotate 45 °intervals 8 different positions, ZJ slurry pump with high efficiency, long life, light weight, reasonable structure, reliable operation, easy maintenance features, for electric power, metallurgy, coal, building materials and other industries, as well as treatment the slurry with solids of abrasive or corrosive, estimated that the mixing slurry concentration is 45%, and mine slurry of 60%, ZJ slurry pump can be used in multistage tandem according to requirements.
Mine dewatering pump outlet diameter:
400mm, 350mm, 300mm, 250mm, 200mm, 150mm, 100mm, 80mm, 65mm, 50mm, 40mm.
Mine dewatering pump structure features
1. Pump head structure
Pump body is double inside and outside metal structure
Pump casing is verticle in the open
The outlet can rotate 45 °intervals 8 different positions
2. Bracket structure
Horizontal in the open
Cantilever
3. The seal form
Vice impeller dynamic seals + packing
Packing
Machinery Seal
4. Material Features
Metal material
In the main anti-wear metallic material
Based anti corrosion of metallic materials
With anti-wear and anti-corrosion of metallic materials
5. Usage features
High efficience
Long life
Smooth operation
6. Drive forms
Direct Drive (DC)
Transmission fluid coupling (HC)
Belt drive (CR, CL, ZV, CV)
Various pump to work with filter press in our factory,
