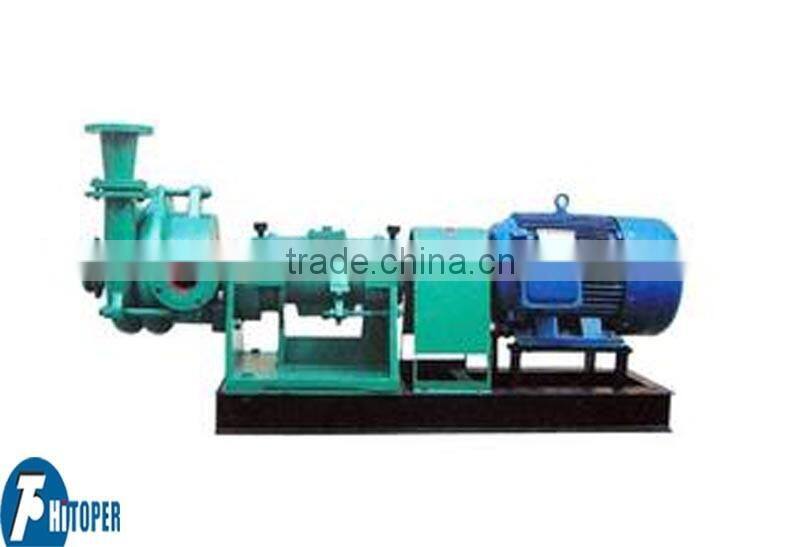

Slurry pump/pulp pump work with filter press, Feeding pump of various filter press
This pulp pump is specialized produce to work with filter press.
After all kinds of coal washing, environmental protection, aluminum smelting and other occasions the trial, its performance has reached domestic leading level, once on the market, its pressure filtration effect, drained time, attempts to prevent sewage contamination, non-leakage and machine stability were praised by users. Production processes for all types of users and improve efficiency has played a positive role in promoting.
SYA type filter feed pump uses a unique hydraulic design and impeller installation, to ensure that its performance curve is steeper than the general trash pump, ideal for filter feeding should change to achieve high resistance to flow, low pressure feed material with low flow, high pressure filtration purposes. Its special hydraulic performance coincides filter and then drained from the cavity to fill the evolutionary process. Early feeding without valves control the amount of traffic caused by the motor overload while low pressure does not have an impact on the filter plate frame, reducing the cloth filter plate on the border is damaged, it will not cause vibration impact filter plates, filter press of late Small flow pump pressure is not easy to hold back. Especially in the latter part of the press of the pump at high pressure with its unique installation method and the role of vice impeller impeller, shaft seal to ensure no leakage at basically reached.
Pulp pump advantages
1. Unique sealing device
Plus a combination of negative pressure seal technology, under the circumstances of increasing the pressure and flow rate decreases, the sealing components is not under pressure, especially in the latter part of the press when the pump at high pressure, due to its innovative seal design, ensure sealing parts reach no leakage.

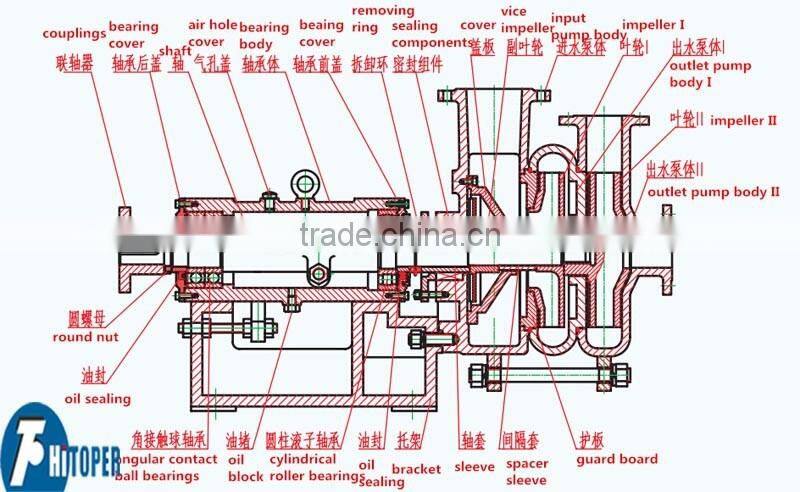

2. Two-stage impeller design
The pump uses dual master pump, double main impeller structural design, when the initial feeding, completely solve the defects of pump impeller vibration and noise, smooth performance curve, impeller left to narrow and poor performance. It is very suitable for the feeding of filter press, due to resistance changes, to achieve large flow resistance low pressure feed and low flow, high pressure filtration requirements.
3. Widely application
This pump flow part is the material of high-chromium alloy, and with filler sealing, better for your granite waste water.
Pulp pump technical parameters.
Various pump to work with filter press in our factory,
Filter and separation equipment in our factory.
