Industrial scale centrifuge, small laboratory centrifuge, GQ/GF57
- 50 Set / Sets per Month
- Tianjin Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Henan, China | Brand Name: | TOPER | Model Number: | GF |
Type: | Other, centrifuge | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Industrial scale centrifuge, small laboratory centrifuge, GQ/GF57
The desktop tubular centrifuge is the equipment that works with high separation factor and capacity, little space and easy operation, with low noises, it is extremely convenient to maintain.
GF Tubular Centrifuge is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases, such as cooking oil, like peanut oil, tea tree oil, pine nut oil, walnut oil and olive oil.

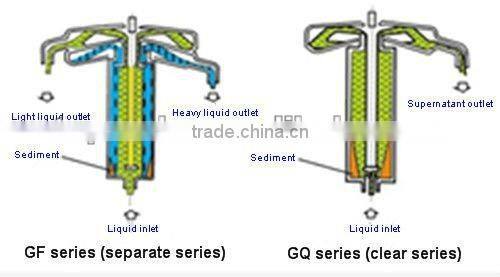

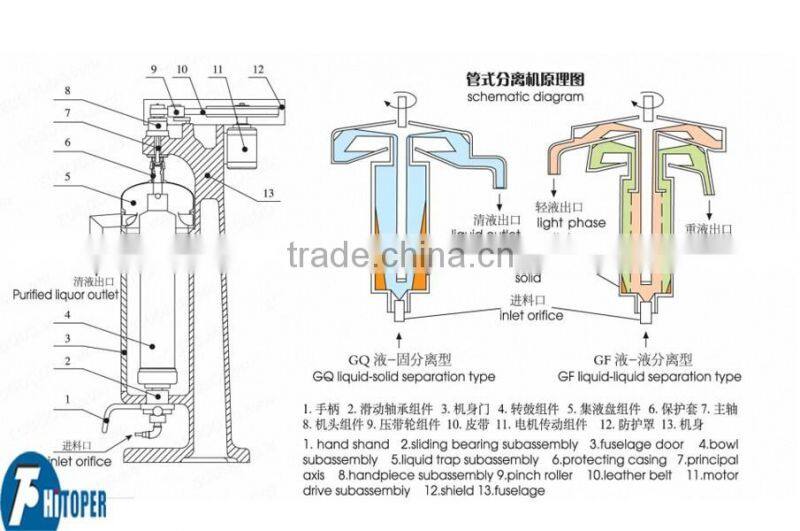

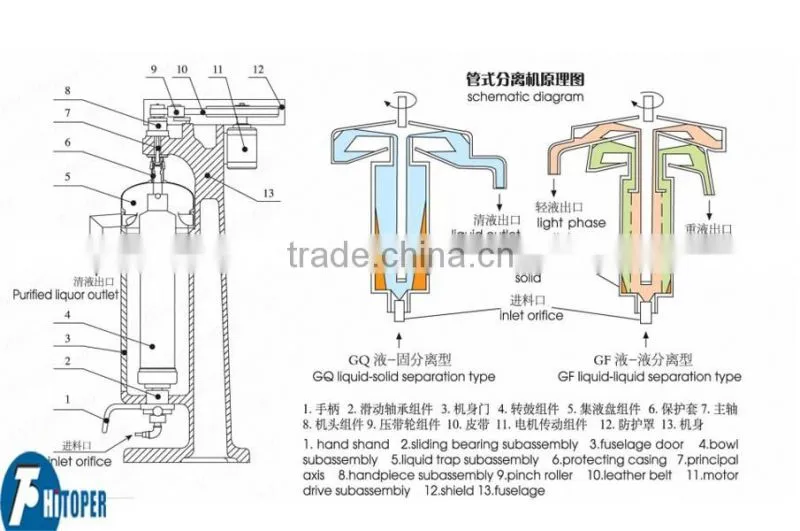

Working principle of tubular centrifuge:
When the analytical centrifuge works, the motor passes the dynamic force to the driven wheel through driving strap and tension pulley, thus for the bowl to rotate around its own axis at high speed, forming a strong centrifugal force field. The material is injected inside from the liquid inlet on the bottom.
The centrifugal force compels the material liquid to flow upwards along the inner wall of bowl, and the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually discharged after the machine is shut down.
Parameters of tubular centrifuge:
Type | GQ,GF-57 | GQ,GF-75 | GQ,GF-105 | GQ,GF-125 | GQ,GF-150 |
Drum internal diameter | 57mm | 75 mm | 105 mm | 125mm | 142 mm |
Rotation speed | 30.000/min | 22500r/min | 17000r/min | 16000r/min | 15000r/min |
Drum effect height | 240mm | 450mm | 730mm | 735mm | 730mm |
Drum volume | 0.36L | 2.2L | 6L | 7.4L | 10L |
Max. separation factor | 28700 | 21000 | 16500 | 16000 | 17000 |
Diameter of chewing | Φ2Φ2.5 | Φ2Φ3Φ5 | Φ4 Φ6Φ8Φ10 | Φ4Φ6Φ8Φ10 | Φ6Φ8Φ10 |
Pressure of passing materials | 0.03mPa | 0.05mPa | 0.05mPa | 0.05mPa | 0.05mPa |
Capacity(water flow capacity) | 126L/h | 670L/h | 1600L/h | 2000L/h | 3200L/h |
Motor | 0.4kw | 1.5kw | 3.0kw | 4.0kw | 3.0kw |
Dimension | 400*780*550 | 800*1200*1600 | 800*1200*1600 | 1010*510*1715 | 1020*600*1558 |
Weight | 90kg | 300kg | 500kg | 567kg | 500k |
