China manufactured centrifugal force principle drum rotation centrifuge
Brief introduction of the China manufactured centrifugal force principle drum rotation centrifuge
SS type three-foot upper discharging centrifuge is of manual top discharging , intermittent operation filtering centrifuge. Suitable for separating solid particles containing≥0.01mm suspension, solid particles can be granular, crystalline and other forms are also available for items(such as yarn-beam, textiles, etc.) and dehydration.
The series of centrifuge simple structure, easy operation, each operation can be adjusted, residues can be washed, the solid particles are not easy to break, adaptability.
Widely used in chemical industry, light industry, textile, food, pharmaceutical, metallurgy, mining, each and environmental protection industries.
The different claffify of the centrifuge
by way of discharge:
three-column upper discharge
three-column lower discharge
by structure:
ordinary centrifuge
scraper centrifuges
punching bags Centrifuge
by working principle:
three-foot centrifuge filter
three-foot centrifuge sedimentation
way of separator ——Two ways to separate :
1.Filtering : There is holes in the rolling drums .Its widely used for some conditions ,such as less viscosity ,solid big granular ( crystalline ) ,mostly used to dewater .
2.Decanter :Closed rolling drums to separate solid and liquid through centrifugal force .Its used widely ,such as big viscosit ,small granular both can be separted .
Working principle of the centrifuge
The material from the top to join the drum under the action of the centrifugal force field, the liquid spreads through the wall of the drum filter into the filter body floor chassis, a liquid outlet from the discharge, and solid materials retained in the drum, removable by hand from the top of the centrifuge from the electrical control, two-speed motor. Can automatically complete a work cycle. That is, start a slow start a high-speed running an electric brake. Can also be used with inverter.
Main technical parameters of the simple structure of ss type centrifuge
| Type | Drum | separation factor (w2r/g) | Motor power (kw) | Weight (kg) |
Dimension (mm) |
|||
| dia.(mm) | volume(L) | Load limit (kg) | Rotation speed (r/min) | |||||
| SS300 | 300 | 8 | 10 | 1900 | 819 | 0.75 | 130 | 800×620×500 |
| SS450 | 450 | 20 | 25 | 1600 | 725 | 1.5 | 200 | 980×720×625 |
| SS600 | 600 | 45 | 80 | 1450 | 755 | 3.0 | 600 | 1350×990×750 |
| SS800 | 800 | 98 | 135 | 1200 | 640 | 5.5 | 1300 | 1740×1380×1000 |
| SS1000 | 1000 | 140 | 195 | 1000 | 560 | 7.5 | 1500 | 1950×1560×1050 |
| SS1200 | 1200 | 200 | 280 | 800 | 430 | 15/11 | 2030 | 2370×1600×1000 |
| SS1500 | 1500 | 360 | 400 | 650 | 304 | 15 | 4060 | 2640×1850×1100 |

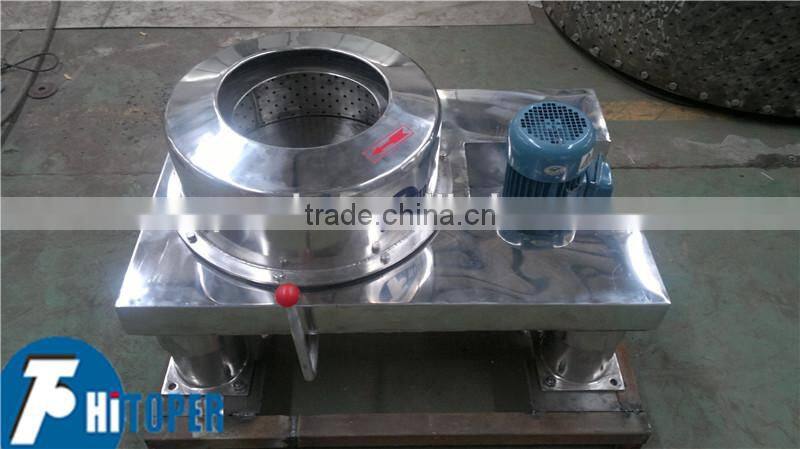

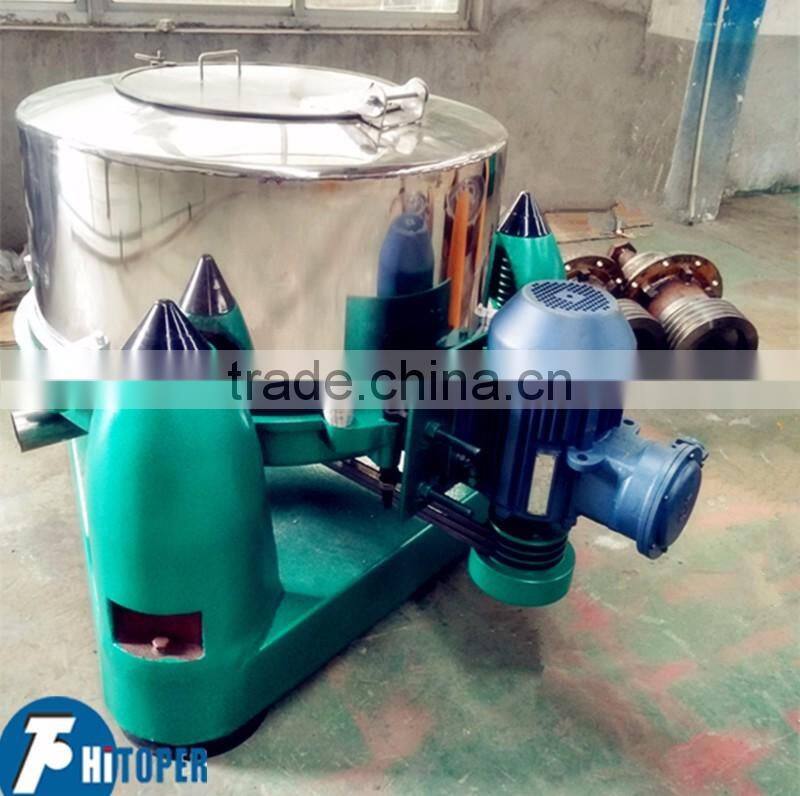

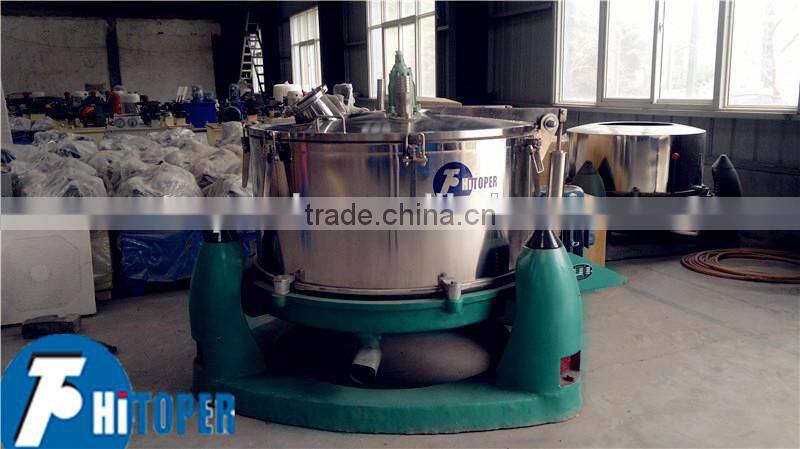

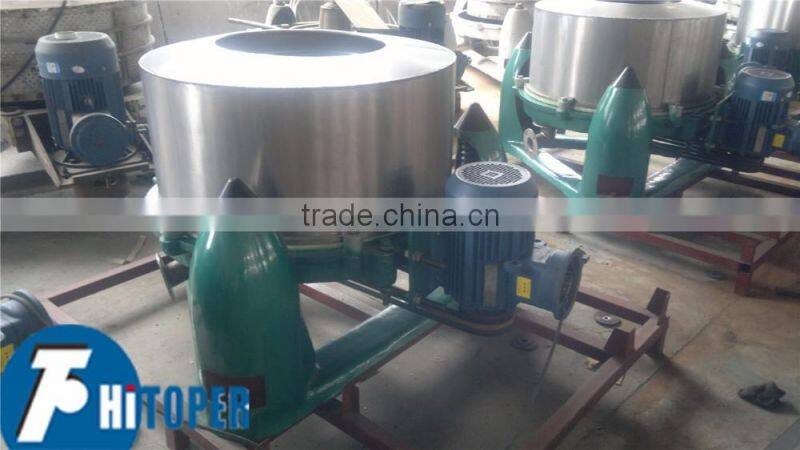

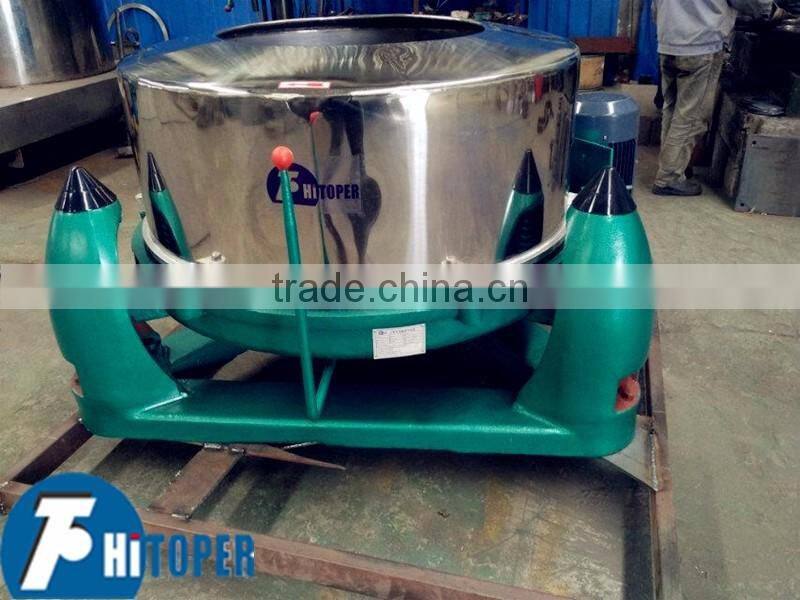

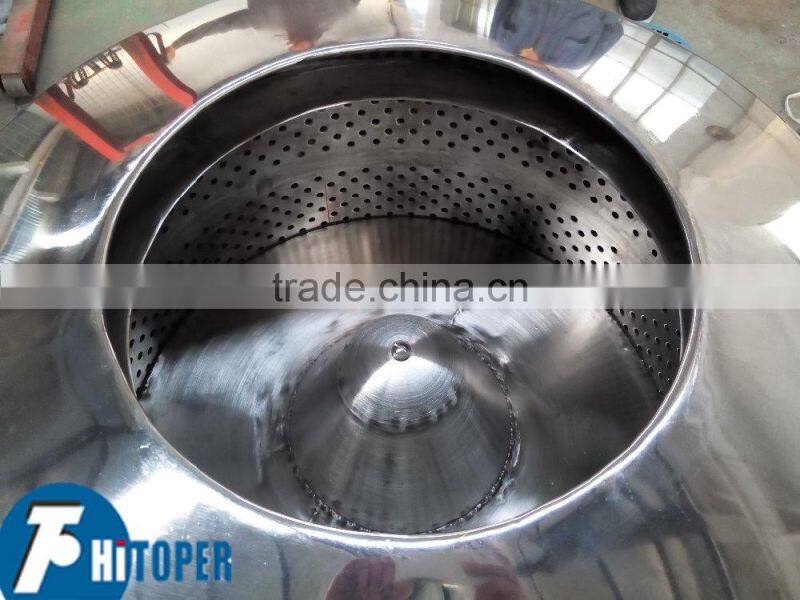

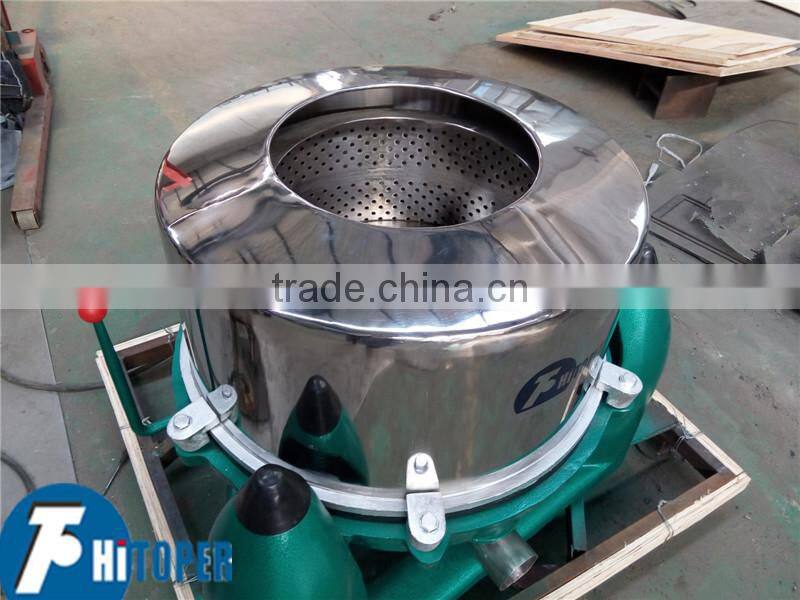

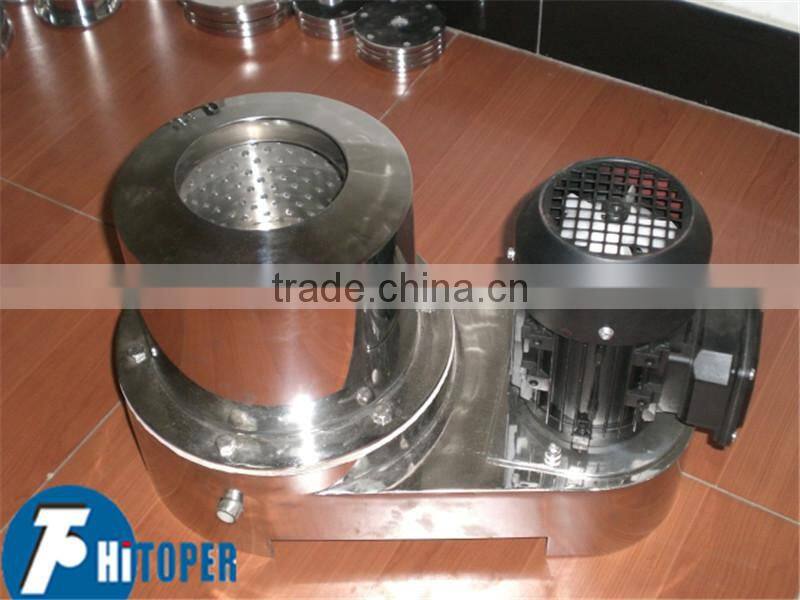

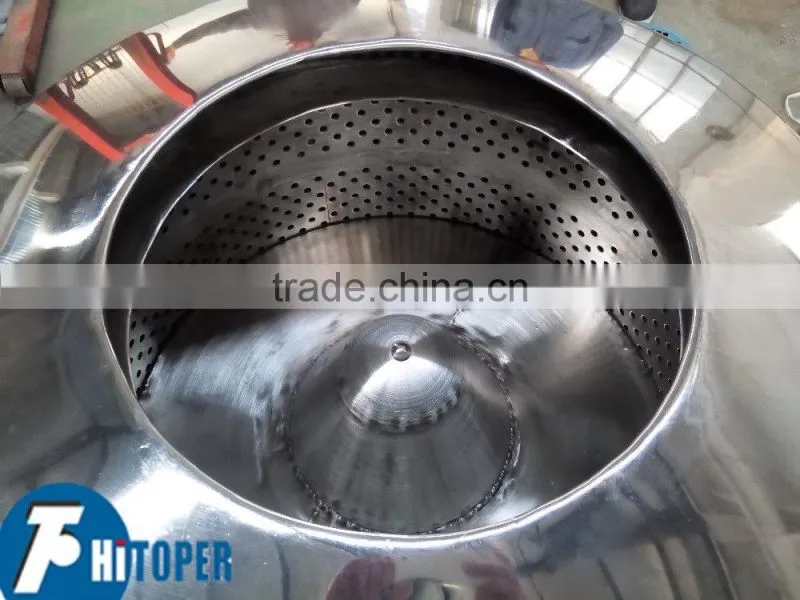

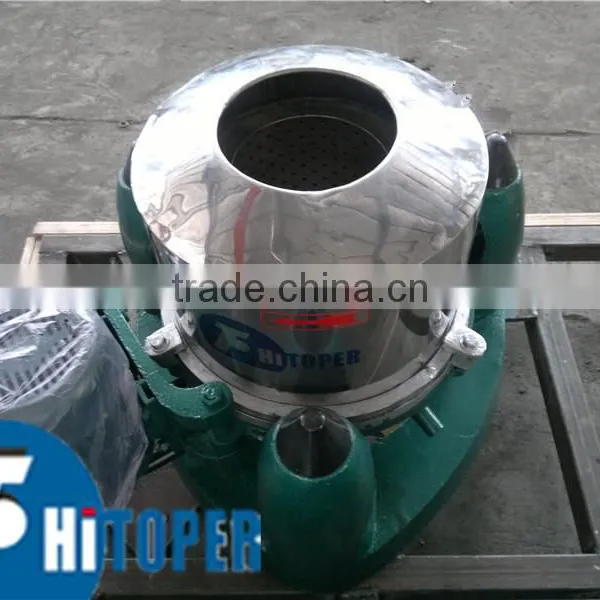

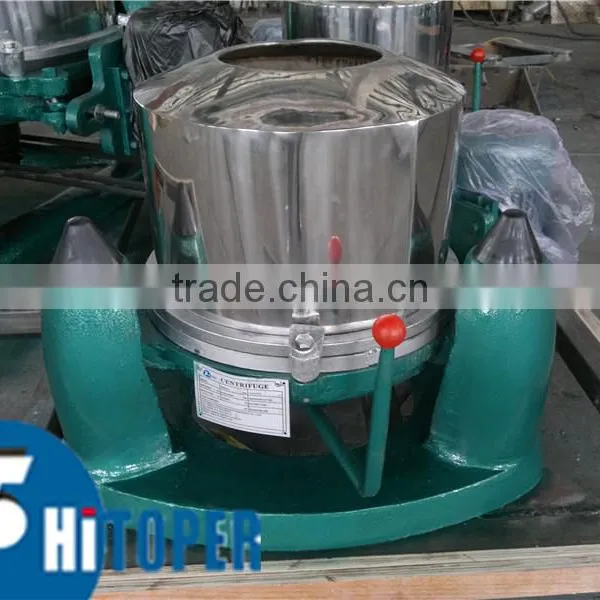

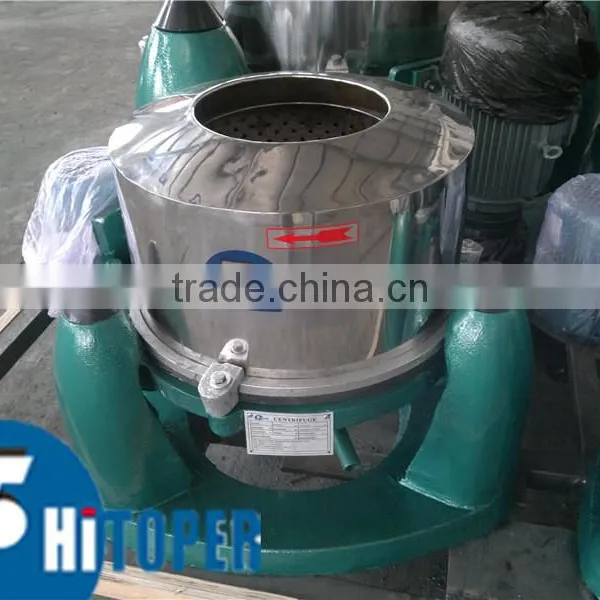

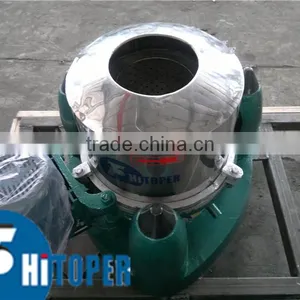

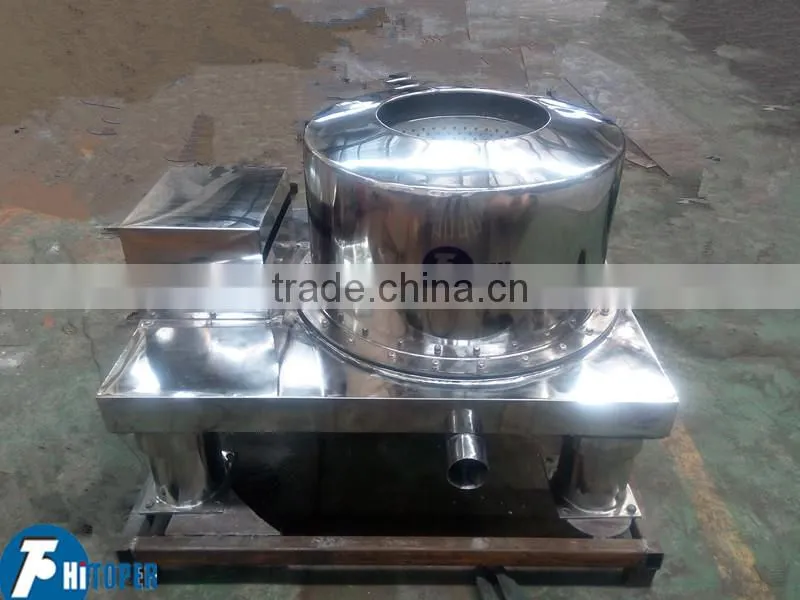

More detail pictures of the centrifuge

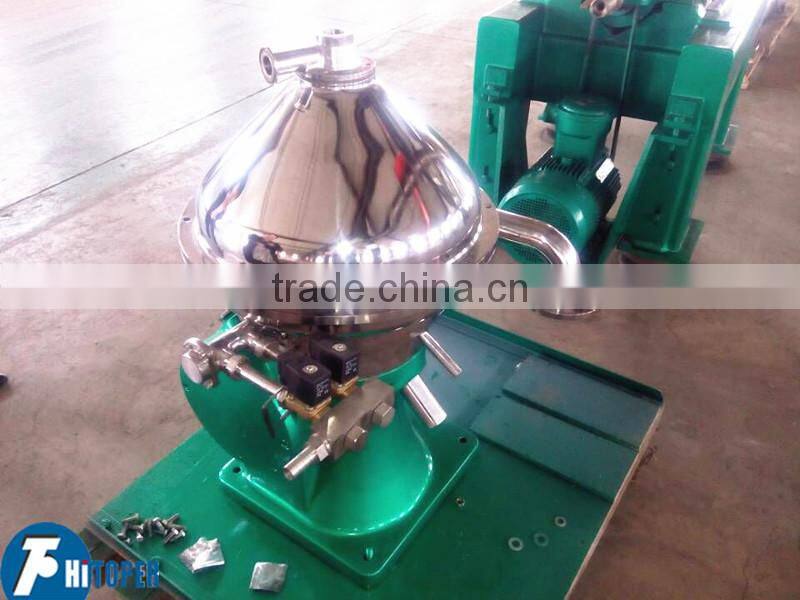

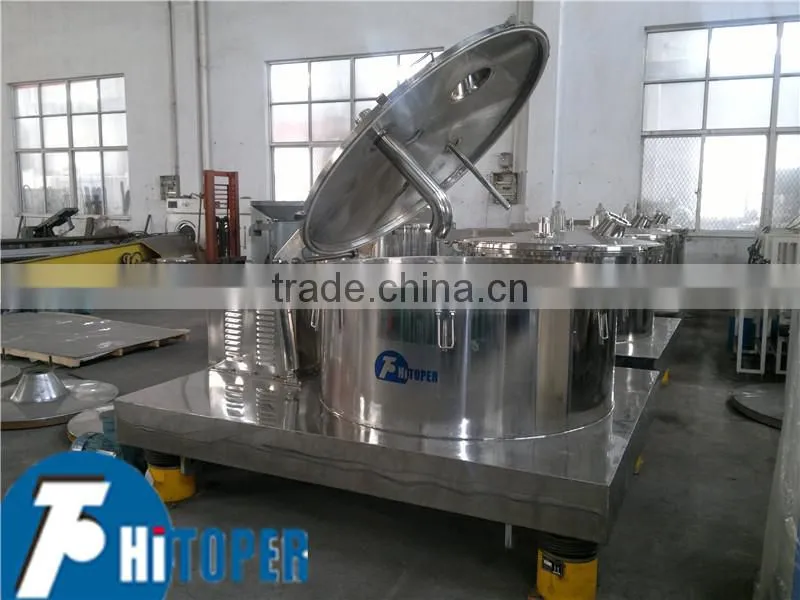

Other type of Toper's separation centrifuge:

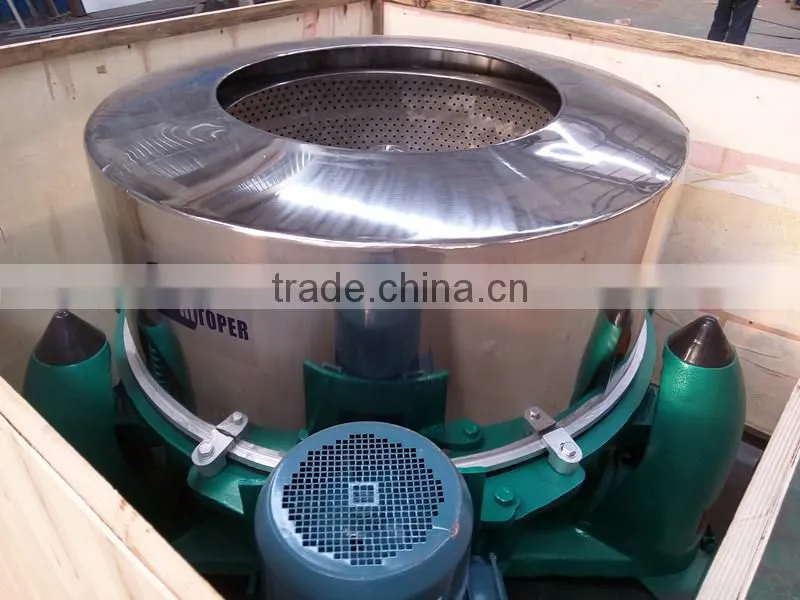

We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of
various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing
devices and suspending liquid is pumped into the filter chamber. Solid particles and separated
through filter cloth.
The products are simple in structure but good in separating effects, convenient in use, and widely
applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing,
paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment
industries.
All of Toper's products:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
