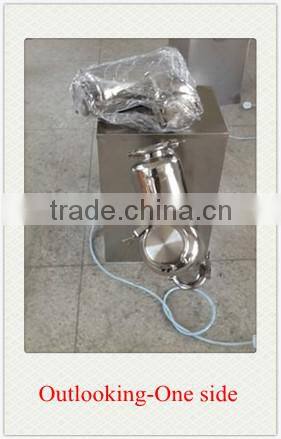

Milk Power Mixer V5

Specifications

Product Details

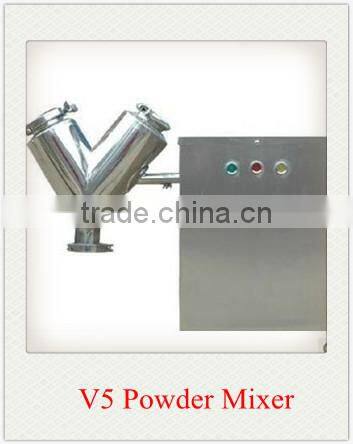

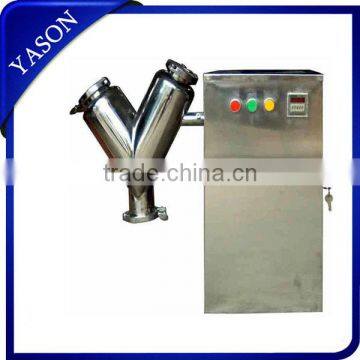

Introduction of V5 Powder Mixer

This machine is suitable for pharmaceutical, chemical, food, dry powder, granular material mixing. The machine mixing tube structure unique mixing, high efficiency, and no accumulation expected. Whole structure is simple, easy to operate. Outer surface and material contact parts are made of stainless steel, beautiful appearance, and good maintenance and easy to clean.

Technical Parameters of Item

Barrel Capacity: 5L

Working volume: 2L

Motor power: 220V 550W

Mixed Speed: 20r/min

Dimensions: 720 × 370 × 615mm

Learn more about the product

Structural Use and Maintenance

The machine is equipped with motor and reducer end, the electrical power to pass through the belt reducer, speed machine and then pass through the coupling V-shaped barrel. Continuous operation of the V-shaped barrel, barrel drives the material in the barrel, down, left, and right by sufficient mixing.

Installation: Place the machine on a smooth, installed machine foot, pad level, so that the machine can operate freely.

Before use plus a good place to be fuel oil ( machine factory has been refueling ) , and then load operation , to check for loose fasteners , electrical appliances is normal, machinery is working properly , if unusual , for trimming and debugging.

Go to the top feeding port , open the feed cover for feeding, feeding amount can not exceed the specified volume , and then feeding lid tightly closed , start the machine is operated , the way such as abnormal , must stop to check .

After work or replacement of species must hopper inside and outside clean.
