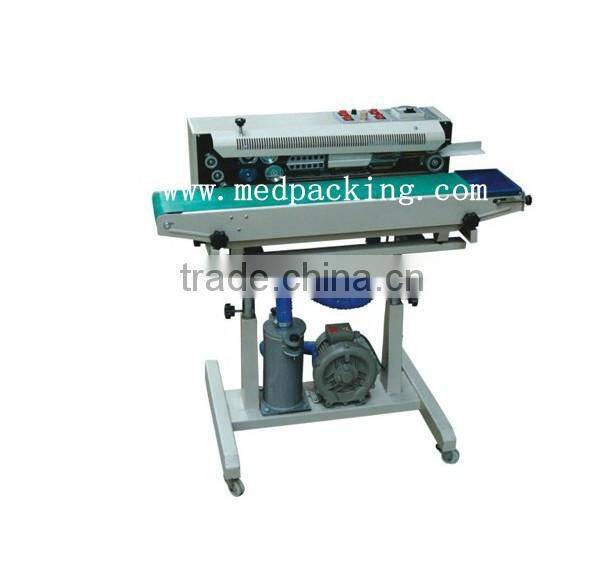

DRF-1000 series automatic inflation film sealing machine

DRF-1000 automatic inflatable sealing machine

Name of equipment: automatic inflation film sealing machine
Equipment Type: DRF-1000 (continuous)

Equipment Introduction

?? The machine is mainly suitable for puffed food packaging, is the improvement in the automatic film sealing machine automatic inflation device, the products, inflatable plastic film packaging improves after crushing, reducing damage during transportation of food. For the packing or transport fragile items or puffed food packaging. Inflatable, printing, sealing can also be converted into a complete exhaust sealing machine.
?? This machine is suitable for sealing various plastic film, bag, can be widely used in food, medicine, daily chemical products, native products, chemicals, electronics, clothing, cultural relics preservation department. It is the factories and shops and service industries use batch best sealing equipment.

Equipment Features

?? The machine adopts electronic constant temperature control and automatic conveying device can be made in different shapes plastic film bags, in a variety of packaging lines supporting the use of sealing length unrestricted; having continuous sealing efficiency, reliable sealing quality, structure, reasonable, easy to operate features. The machine can be horizontal, vertical, multi-purpose floor. The packaging for dry and horizontal sealing; Vertical items of packaging for liquid seal. The machine can also be coupled with printing devices. While the seal can be printed directly on the date of manufacture or expiry dates with the need to replace, easy to use, allowing you to pack more health, more long-term.

Technical parameters

?? Power supply: 220V/50-60Hz
?? Power: 750W
?? Sealing speed :0-12m / min (adjustable)
?? Sealing length: Any
?? Seal width :6-12mm
?? Temperature range :0-300 °C
?? Conveying the maximum carrying capacity: 5kgs
?? Dimensions: 1060X640X970mm
?? Weight: 39kg
