Small Tablet Pill Press Machine,Delivery within 24h

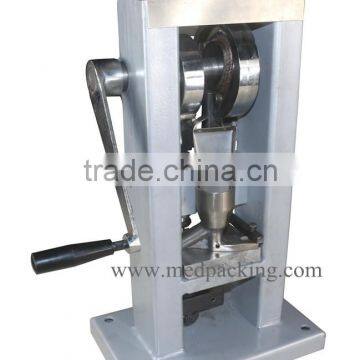

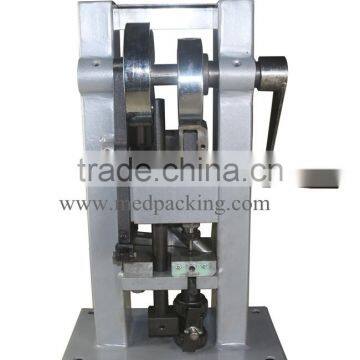

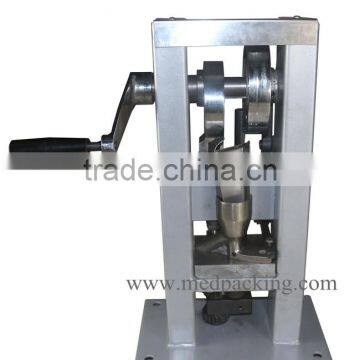

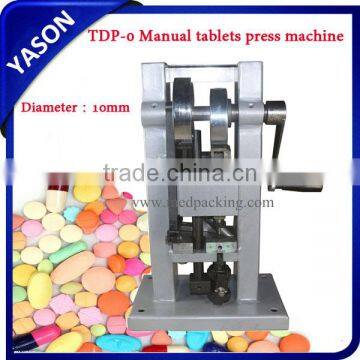

TDP-0 Tablet Press

Ask the manual from us to help

you know how to use the machine!!!!

Overview

--------------------------------------------------------------------------------------------------------------------------

This machine is used for tabletting different kinds of powder raw materials into diverse shape tablets.

It is applicable to trial manufacturing in lab or batch production in small-batch of tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder Metallurgical,Electronic elements and various tablets of pesticide and fertilizer.etc..

It features a small desktop type press for motive and continual sheeting.

It can also be hand-operated optional. Meanwhile, that machine also can press various abnormity and normal tablet,and press the tablets in two sides with printing as well.

Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.

Main Technical Parameter

--------------------------------------------------------------------------------------------------------------------------------------------------

*Note: The above parameters for reference only. The machine constantly upgrades parameters may cause the actual discrepancies, please understand.

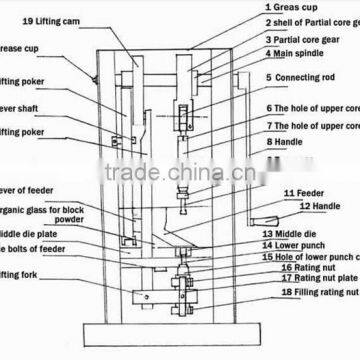

Structural Features

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

lThe principal part of this device is a body of dragon gate, which is welded by carbon steel. The upper part is combined with the principal axis and the core shift as well as the filling cam, on the right end of which is equipped with the rocker arm and the hand shank. Transmit the principal axis manually to drive the core shift, filling cam, lifter as well as the feeder. The small lever drives the feeder to realize different lifting motions.

lMain working process: A. filling; B. STAMP (stamping forming); C. slice. These three steps are made one by one, each of which can be adjustable, applicable for forming of various tablets.

lThis device is characterized by small volume, light weight, attractive appearance, compact structure, simple operation, wide application and easy carrying without need of electricity. It can be operated manually, replacing new moulds with different specifications can obtain tablets as required.

Maintenance Instructions

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

lWith respect to lubrication of equipment apparatus, refuel (engine oil and grease) the beam hanger on various operative components.

lIn case of once use completion or shutdown, it is required to clean materials with antirust oil to be coated.

lPlace the moulds with antirust oil in the container with the cover away from injury and rusting.

Announcements

-------------------------------------------------------------------------------------------------------------------------------------------------

lIt is prohibited to place hands underneath the upper and middle moulds to avoid personal injury.

lIt is required to make materials into particles before tablet pressing based on the technique.

lIt is required to fix the equipment on the work bench before use.

Pictures

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
